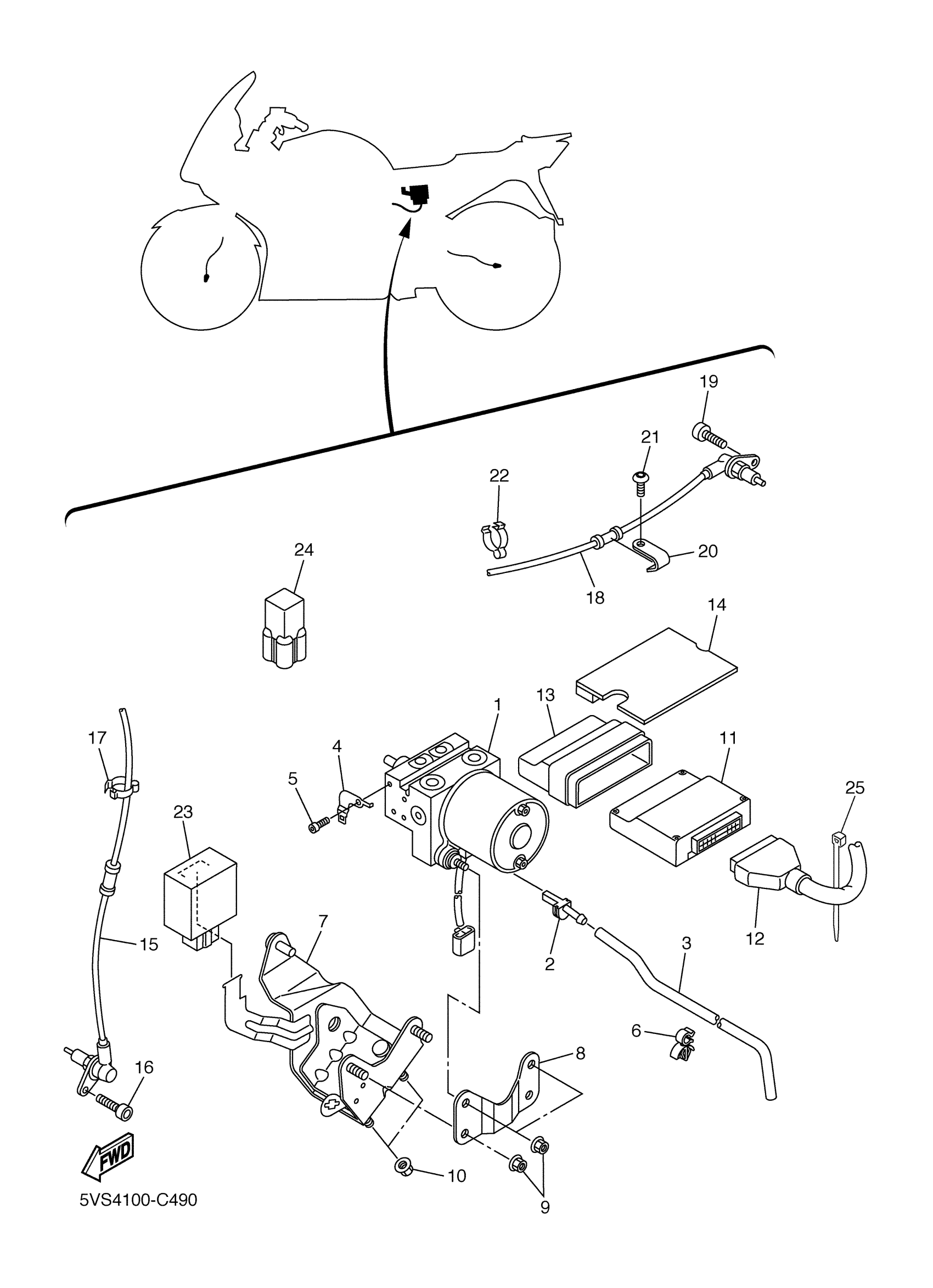

Yamaha FJR13ATC (FJR1300ABS CA) 5VSB 2005 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASSY

5VS-85930-09-00

Unavailable

2

PLUG, DRAIN

5CG-24196-00-00

Unavailable

3

HOSE, DRAIN

5VS-85828-00-00

Unavailable

4

BRACKET, UNIT

5VS-85991-00-00

Unavailable

5

BOLT

91318-05012-00

Unavailable

6

CLAMP(6M7)

90464-10M32-00

Unavailable

7

BRACKET 1

5VS-2175T-00-00

Unavailable

8

BRACKET 2

5VS-2175U-00-00

Unavailable

9

NUT, FLANGE(JN5)

95707-08500-00

$3.13

10

NUT, SELF-LOCKING

90185-08169-00

$8.49

11

ELECTRONIC CONTROL UNIT ASSY

5VS-85940-00-00

Unavailable

12

WIRE HARNESS ASSY

5VS-85950-00-00

Unavailable

13

COVER, CASE

5CG-8552E-00-00

Unavailable

14

DAMPER

5VS-8235Y-00-00

Unavailable

15

WHEEL SENSOR ASSY, FRONT

5VS-85970-00-00

Unavailable

16

BOLT, BUTTON

92014-08016-00

Unavailable

17

CLAMP(1NL)

90465-14310-00

Unavailable

18

WHEEL SENSOR ASSY, REAR

5VS-85980-00-00

Unavailable

19

BOLT, BUTTON

92014-08016-00

Unavailable

20

HOLDER, WIRE

5VS-86159-01-00

Unavailable

21

BOLT(3JP)

90111-05012-00

Unavailable

22

CLAMP(1NL)

90465-14310-00

Unavailable

23

RELAY ASSY (3YA-01)

3YA-81950-01-00

Unavailable

24

CONNECTOR

3YA-82378-00-00

Unavailable

25

BAND

1UA-82591-00-00

Unavailable
