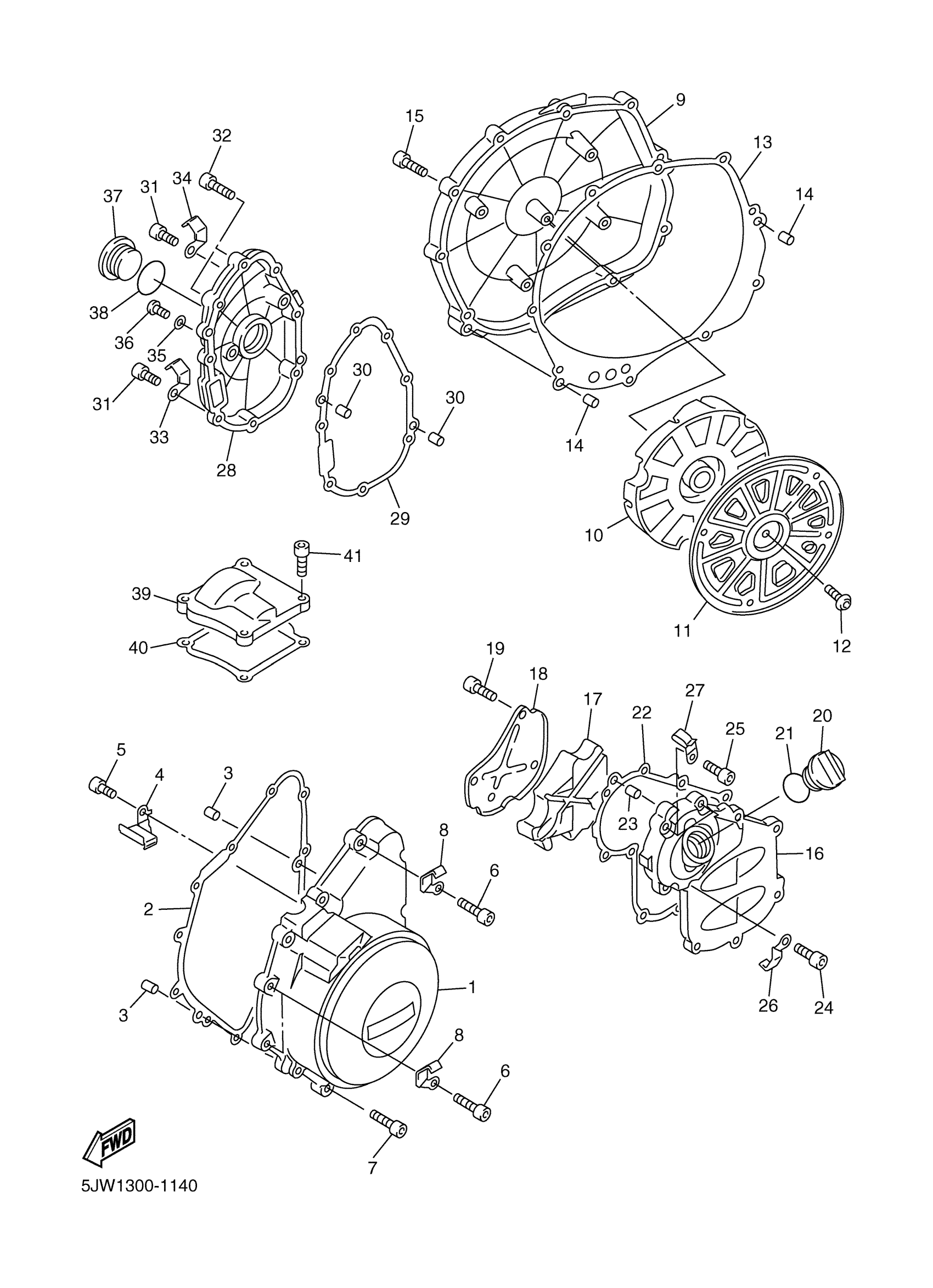

Yamaha FJR13ATC (FJR1300ABS CA) 5VSB 2005 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

3P6-15411-00-00

$215.99

2

GASKET, CRANKCASE COVER 1

5JW-15451-00-00

$27.99

3

PIN, DOWEL

99530-08012-00

Unavailable

4

CLAMP 2

5JW-15484-01-00

$22.99

5

SCREW, PAN

98517-06008-00

$8.49

6

BOLT,SOCKET HEAD

91314-06025-00

$8.49

7

BOLT,SOCKET HEAD

91314-06020-00

$1.49

8

CLAMP(4AJ)

90462-08225-00

$8.49

9

COVER, CRANKCASE 2

5JW-15421-00-00

$229.99

10

DAMPER 2

5JW-15326-01-00

$70.99

11

COVER

5JW-15492-00-00

$41.99

12

BOLT, BUTTON HEAD

92017-06014-00

$4.29

13

GASKET, CRANKCASE COVER 2

5JW-15461-01-00

$33.99

14

PIN, DOWEL

93608-21002-00

$3.23

15

BOLT

90109-06031-00

Unavailable

16

COVER, CRANKCASE 3

5JW-15431-00-00

Unavailable

17

DAMPER, ENGINE MOUNT 1

5JW-15316-00-00

Unavailable

18

COVER, AIR CLEANER

5JW-15414-00-00

Unavailable

19

BOLT,SOCKET

91317-06012-00

Unavailable

20

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

21

O-RING(1KT)

93210-27778-00

Unavailable

22

GASKET, CRANKCASE COVER 3

5JW-15462-11-00

Unavailable

23

PIN, DOWEL

99530-08012-00

Unavailable

24

BOLT, BUTTON HEAD

92014-06020-00

Unavailable

25

BOLT, BUTTON HEAD

92014-06020-00

Unavailable

26

CLAMP(4AJ)

90462-08225-00

$8.49

27

CLAMP(51Y)

90465-08277-00

Unavailable

28

COVER, OIL PUMP

5JW-15416-00-00

Unavailable

29

GASKET, OIL PUMP COVER 1

5JW-15456-00-00

Unavailable

30

PIN, DOWEL

99530-08012-00

Unavailable

31

BOLT,SOCKET HEAD

91314-06020-00

$1.49

32

BOLT,SOCKET HEAD

91314-06025-00

$8.49

33

CLAMP(4AJ)

90462-08225-00

$8.49

34

CLAMP

90465-08028-00

Unavailable

35

. GASKET

90430-08143-00

Unavailable

36

BOLT, BUTTON HEAD

92014-08012-00

Unavailable

37

PLUG, STRAIGHT SCREW(2GV)

90340-32116-00

Unavailable

38

O-RING (341)

93210-32172-00

Unavailable

39

COVER, GENERATOR 2

1MC-15425-00-00

Unavailable

40

GASKET, COVER PINION 2

5JW-15463-01-00

Unavailable

41

BOLT,SOCKET HEAD

91314-06020-00

$1.49
