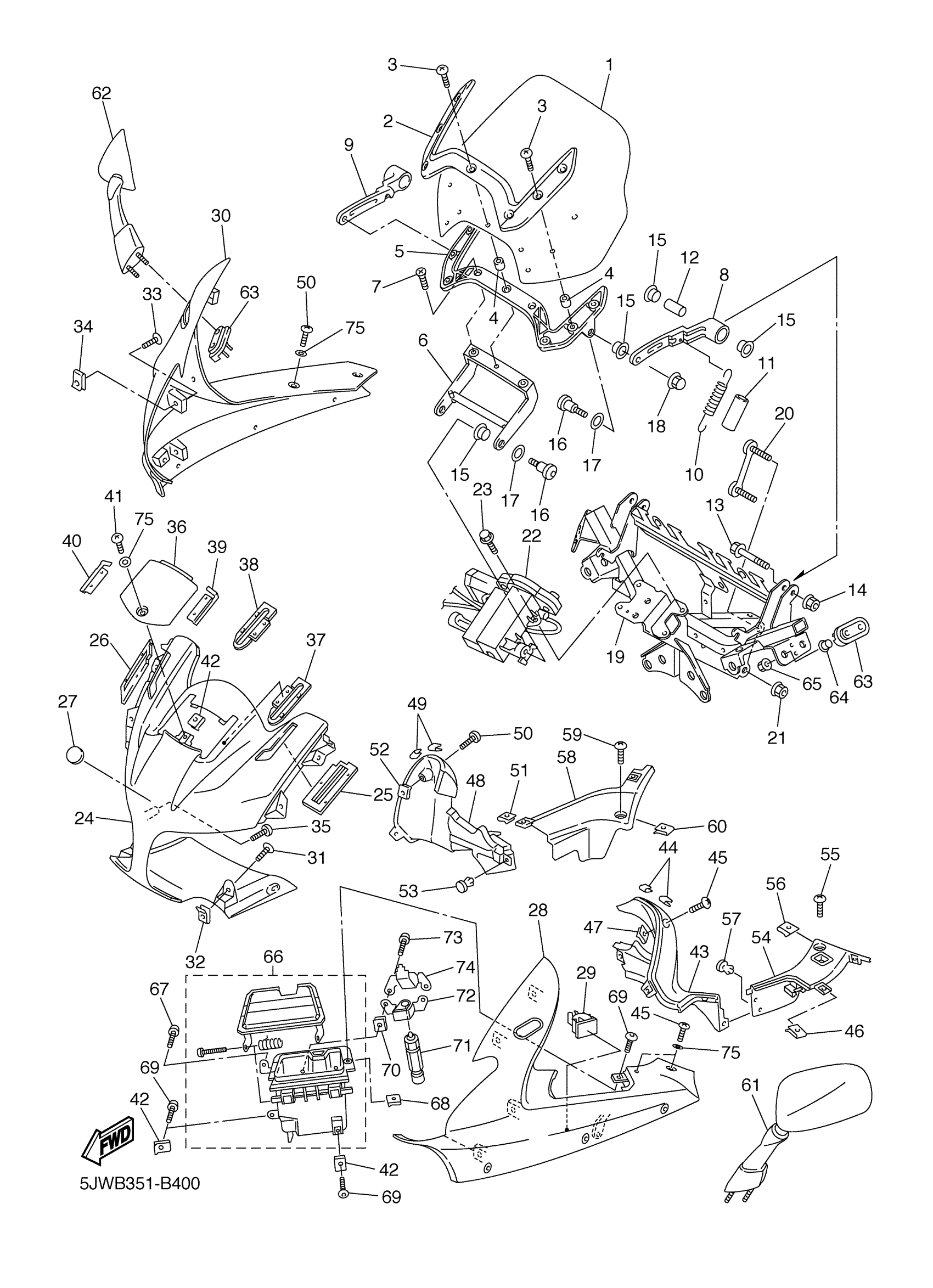

Yamaha FJR13ATC (FJR1300ABS CA) 5VSB 2005 COWLING 1 Diagram
#
2
WASHER, LEG SHIELD (DARK PURPLISH BLUE METALLIC L)
5VS-28323-00-P1
Unavailable
5
STAY 2
5JW-28322-00-00
Unavailable
6
STAY, LEG SHIELD
5JW-28332-00-00
Unavailable
12
. COLLAR
90387-06605-00
Unavailable
16
BOLT, COWLING
5JW-28374-10-00
Unavailable
17
WASHER, PLATE (655)
90202-10044-00
Unavailable
18
NUT, CROWN
90176-06082-00
Unavailable
19
STAY 1
5VS-28356-00-00
Unavailable
20
PLATE
5JW-28336-00-00
Unavailable
21
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
22
DRIVE UNIT ASSY
5JW-83306-01-00
Unavailable
23
BOLT, FLANGE(4DU)
95027-06014-00
Unavailable
24
BODY, COWLING
5JW-28351-01-P4
Unavailable
25
SEAL 1
5JW-28428-00-00
Unavailable
26
SEAL 2
5JW-28429-00-00
Unavailable
27
TUNING FORK MARK
5LV-2836B-01-00
Unavailable
28
BODY, FRONT UPPER 1
5VS-2835G-01-P1
Unavailable
29
CLAMP
90464-09009-00
Unavailable
30
BODY FRONT UPPER 2
5JW-2835H-01-P4
Unavailable
31
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
32
NUT, SPRING
90183-051A0-00
Unavailable
33
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
34
NUT, SPRING
90183-051A0-00
Unavailable
35
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
36
COVER (DARK PURPLISH BLUE METALLIC L)
5JW-28365-00-P4
Unavailable
37
SEAL 3
5VS-2844E-00-00
Unavailable
38
SEAL 4
5VS-2846F-00-00
Unavailable
39
SEAL 5
5JW-2847F-00-00
Unavailable
40
SEAL 6
5JW-2848F-00-00
Unavailable
41
BOLT
90111-05003-00
Unavailable
42
NUT, SPRING(3GM)
90183-05061-00
Unavailable
43
PANEL, CONSOLE 1
5VS-2837L-00-00
Unavailable
44
SEAL
5JW-23844-00-00
Unavailable
45
BOLT
90111-05003-00
Unavailable
46
NUT, SPRING
90183-051A0-00
Unavailable
47
NUT, SPRING(3GM)
90183-05061-00
Unavailable
48
PANEL, CONSOLE 2
5JW-2837M-00-00
Unavailable
49
SEAL
5JW-23844-00-00
Unavailable
50
BOLT
90111-05003-00
Unavailable
51
NUT, SPRING
90183-051A0-00
Unavailable
52
NUT, SPRING(3GM)
90183-05061-00
Unavailable
53
RIVET
90269-07006-00
Unavailable
54
PANEL, INNER 3
5VS-2836M-00-00
Unavailable
55
BOLT
90111-05003-00
Unavailable
56
NUT, SPRING
90183-051A0-00
Unavailable
57
RIVET(4JH)
90269-07076-00
Unavailable
58
PANEL, INNER 4
5JW-2836N-00-00
Unavailable
59
BOLT
90111-05003-00
Unavailable
60
NUT, SPRING
90183-051A0-00
Unavailable
61
REAR VIEW MIRROR ASSY(LEFT)
5JW-26280-00-00
Unavailable
62
REAR VIEW MIRROR ASSY(RIGHT)
5JW-26290-00-00
Unavailable
63
PLATE, MIRROR FITTING 1
5JW-26298-00-00
Unavailable
64
C0LLAR (3JB1)
90387-062X0-00
Unavailable
65
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
66
BOX SUB ASSY
5VS-2830N-00-00
Unavailable
67
SCREW, TAPPING
90167-05080-00
Unavailable
68
NUT, SPRING(3GM)
90183-05061-00
Unavailable
69
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
70
NUT, SPRING
90183-051A0-00
Unavailable
71
LOCK ASSY
5VS-28470-00-00
Unavailable
72
BRACKET
5VS-28367-00-00
Unavailable
73
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
74
BRACKET
5VS-28366-00-00
Unavailable
75
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
