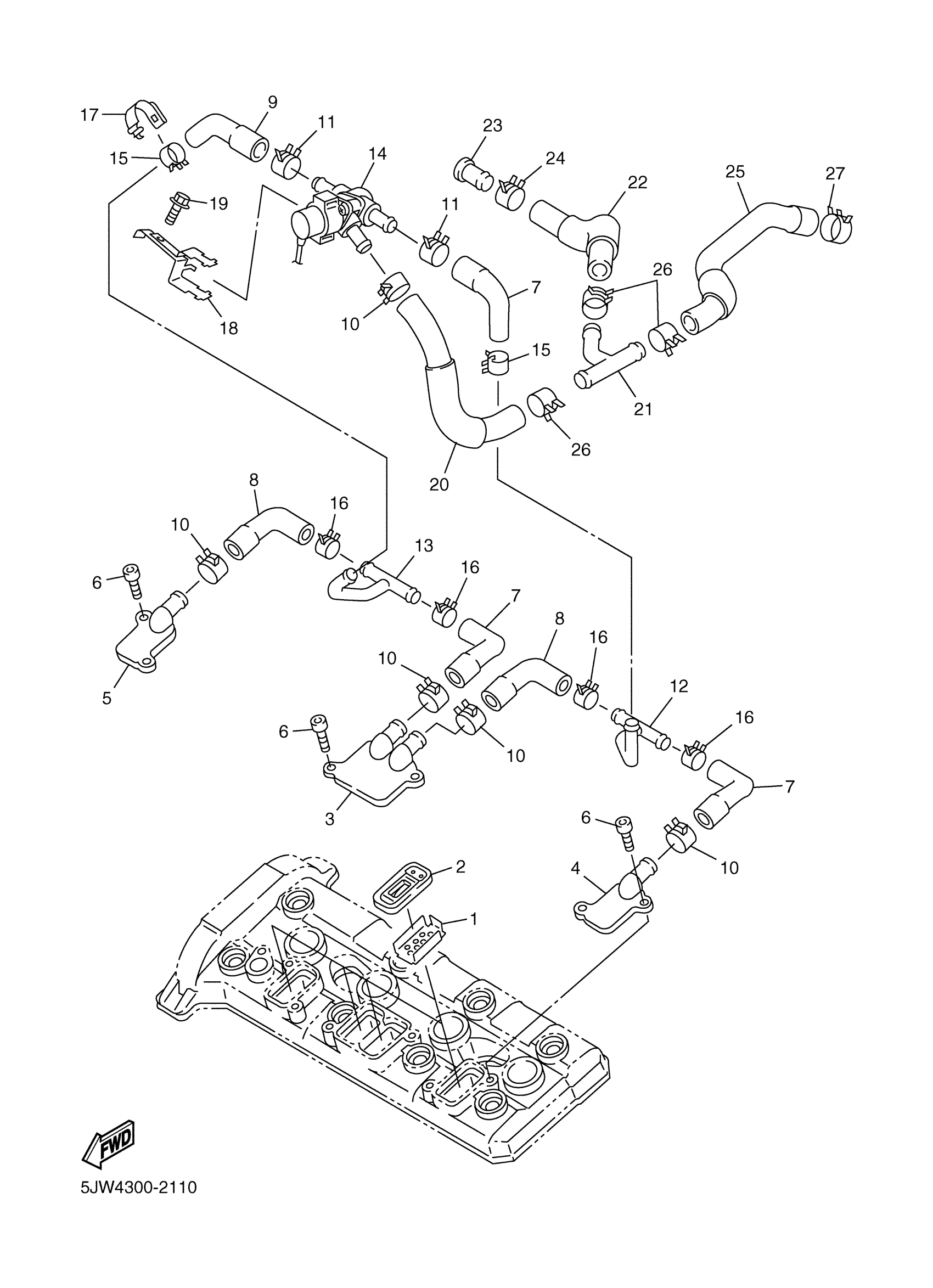

Yamaha FJR13ATC (FJR1300ABS CA) 5VSB 2005 AIR INDUCTION SYSTEM Diagram

#

Description
Price

1

PLATE

5JW-1482K-01-00

$5.49

2

REED VALVE ASS

5JW-14890-00-00

$65.99

3

CAP, CASE

5JW-14899-10-00

Unavailable

4

CAP, CASE

5JW-14858-00-00

Unavailable

5

CAP, CASE

5JW-14889-00-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD

90110-06048-00

Unavailable

7

HOSE, BEND 1

5JW-14881-00-00

Unavailable

8

HOSE, BEND 2

5JW-14882-00-00

Unavailable

9

HOSE, BEND 3

5JW-14883-00-00

Unavailable

10

CLIP

90467-17003-00

$5.60

11

CLIP

90467-170A1-00

$2.28

12

PIPE 1

5JW-14871-00-00

Unavailable

13

PIPE 2

5JW-14872-00-00

Unavailable

14

AIR CUT VALVE ASS'Y

5JW-14840-00-00

Unavailable

15

CLIP

90467-16009-00

$5.60

16

CLIP

90467-160A1-00

Unavailable

17

COVER 1

5JW-14723-00-00

Unavailable

18

STAY

5JW-14834-00-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

Unavailable

20

HOSE, BEND 4

5JW-14884-00-00

Unavailable

21

JOINT

5JW-14833-00-00

Unavailable

22

PIPE 3

5JW-14873-00-00

Unavailable

23

PLUG

5JW-14862-00-00

Unavailable

24

CLIP

90467-17003-00

$5.60

25

HOSE, BEND 5

5JW-14885-00-00

Unavailable

26

CLIP

90467-17003-00

$5.60

27

CLIP (4V3)

90467-20050-00

Unavailable
