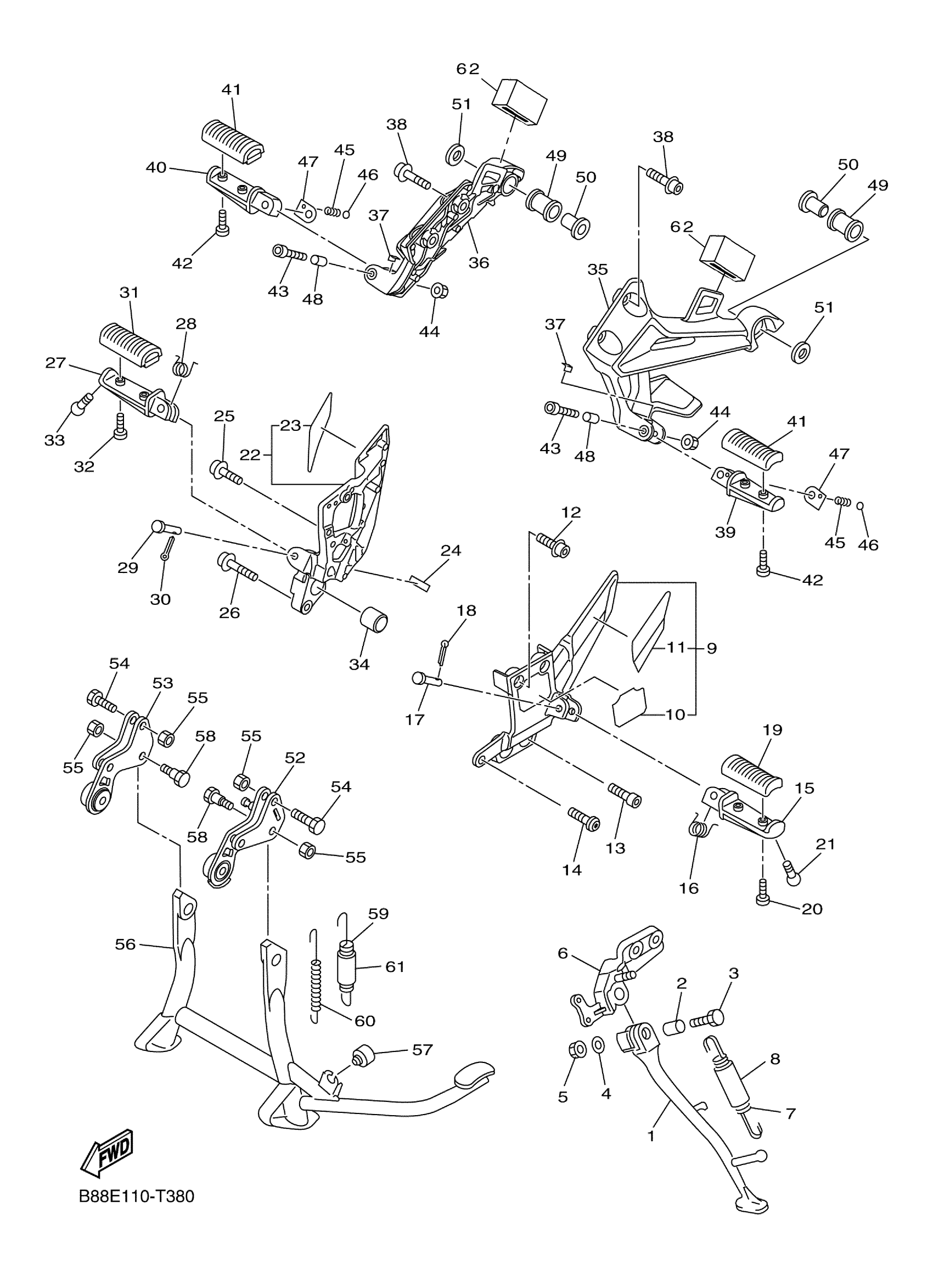

Yamaha FJR13AJL (FJR1300A) B88E 2018 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

5JW-27311-00-00

$190.99

2

COLLAR

90387-10007-00

$12.49

3

BOLT

90101-10025-00

$8.49

4

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

5

NUT, U FLANGE

95602-10100-00

$7.49

6

BRACKET, SIDE STAND

3P6-27321-00-00

$232.99

7

SPRING, TENSION

90506-20008-00

Unavailable

8

HOSE (L60)

90445-197J2-00

$4.61

9

BRACKET SUB ASSY (LEFT)

B88-2740A-00-00

Unavailable

10

SEAT 1

B88-27498-00-00

Unavailable

11

SEAT 2

B88-27499-00-00

Unavailable

12

BOLT, HEXAGON SOCKET HEAD

90110-08097-00

$8.49

13

BOLT

90109-10058-00

$9.49

14

SCREW

90149-10001-00

Unavailable

15

FOOTREST

4BH-27451-01-00

$58.99

16

SPRING, TORSION

90508-183B9-00

Unavailable

17

PIN, CLEVIS (565)

91701-08042-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

COVER, FOOTREST

4BP-27413-00-00

Unavailable

20

SCREW, PAN HEAD

98507-05014-00

Unavailable

21

BOLT

90109-08204-00

Unavailable

22

BRACKET SUB ASSY (RIGHT)

B88-2740E-00-00

Unavailable

23

SEAT 3

B88-2749A-00-00

Unavailable

24

LABEL

3TU-2178A-00-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-08062-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

90110-08108-00

Unavailable

27

FOOTREST

4BH-27461-01-00

Unavailable

28

SPRING, TORSION

90508-184B0-00

Unavailable

29

PIN, CLEVIS

91702-08040-00

Unavailable

30

PIN, COTTER

91490-25020-00

Unavailable

31

COVER, FOOTREST

4BP-27413-00-00

Unavailable

32

SCREW, PAN HEAD

98507-05014-00

Unavailable

33

BOLT

90109-08204-00

Unavailable

34

BUSH, SOLID(3VD)

90380-20213-00

Unavailable

35

BRACKET 4

1MC-2741L-10-00

Unavailable

36

BRACKET 5

1MC-2742L-10-00

Unavailable

37

SEAL

5JW-23844-00-00

Unavailable

38

BOLT, HEXAGON SOCKET HEAD

90110-08062-00

Unavailable

39

FOOTREST, REAR 1

5LV-27431-01-00

Unavailable

40

FOOTREST, REAR 2

5LV-27441-01-00

Unavailable

41

COVER, FOOTREST

4BP-27413-00-00

Unavailable

42

SCREW, PAN HEAD

98507-05014-00

Unavailable

43

TORNILLO ALLEN

91312-06040-00

Unavailable

44

NUT, U FLANGE

95604-06200-00

Unavailable

45

SPRING, COMPRESSION

90501-15001-00

Unavailable

46

BALL

93501-04011-00

Unavailable

47

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

48

COLLAR

90387-06014-00

Unavailable

49

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

50

COLLAR

90387-10048-00

Unavailable

51

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

52

BRACKET, MAIN STAND

1MC-27151-00-00

Unavailable

53

BRACKET, MAIN STAND 2

1MC-27152-00-00

Unavailable

54

BOLT

90101-10004-00

Unavailable

55

NUT, S/L FLANGE

95602-10200-00

Unavailable

56

STAND, MAIN

5P5-27111-11-00

Unavailable

57

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

58

BOLT

90109-10029-00

Unavailable

59

SPRING, TENSION

90506-40001-00

Unavailable

60

SPRING, TENSION

90506-23001-00

Unavailable

61

HOSE (L0)

90445-170K9-00

Unavailable

62

BRACKET RUBBER SET, SIDE CASE

5VS-W9753-00-00

Unavailable
