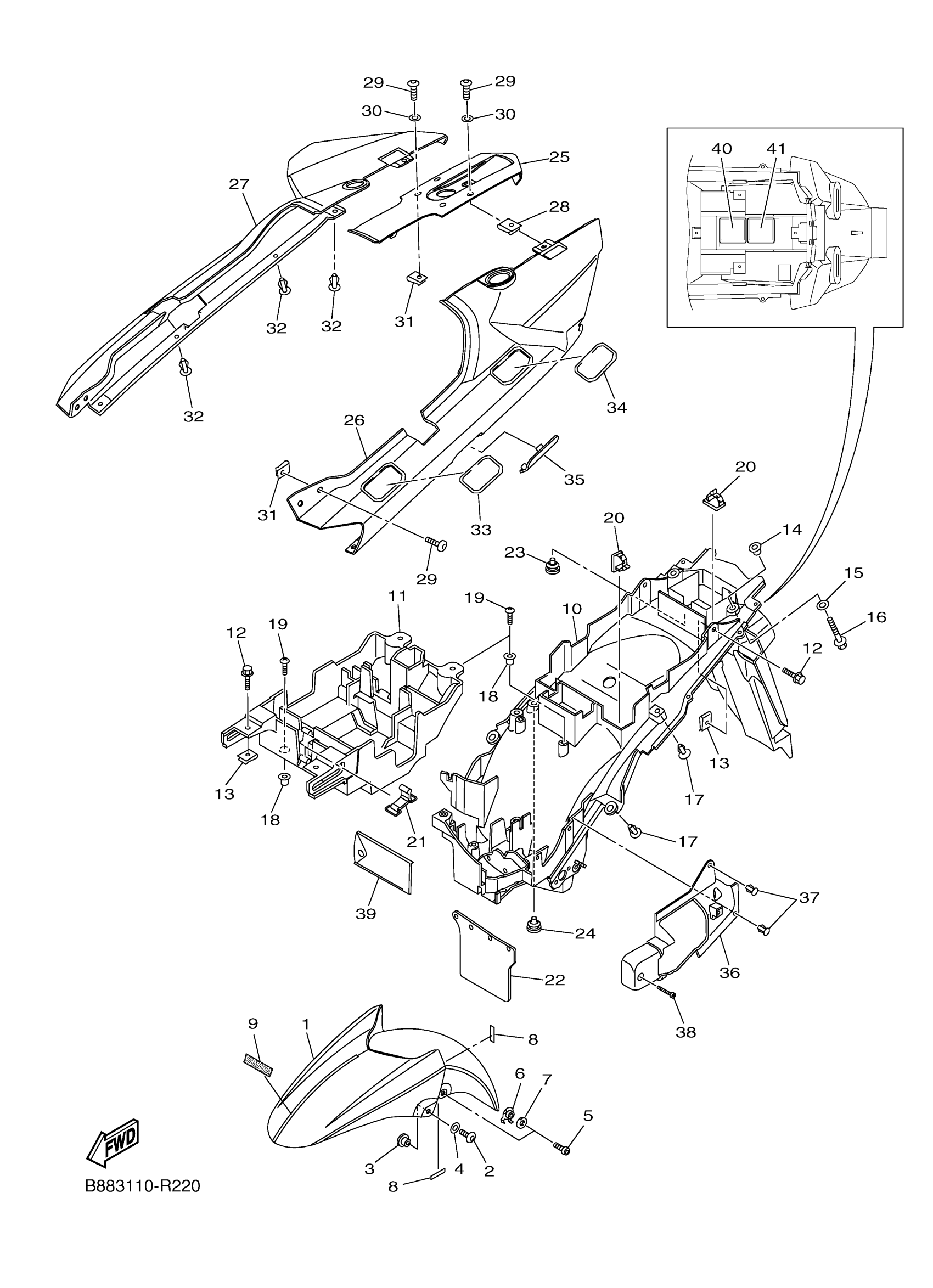

Yamaha FJR13AJL (FJR1300A) B88E 2018 FENDER Diagram
#
1
FENDER, FRONT
3P6-21511-01-PF
Unavailable
3
COLLAR
90387-07006-00
Unavailable
4
WASHER, PLATE
90202-06170-00
Unavailable
6
NUT 1
3P6-21535-11-00
Unavailable
9
EMBLEM, YAMAHA
4B5-2153E-51-00
Unavailable
11
BOX
1MD-2160E-00-00
Unavailable
14
COLLAR
90387-06231-00
Unavailable
16
BOLT, FLANGE
95817-06040-00
Unavailable
17
RIVET
90269-06081-00
Unavailable
18
PLUG(4BP)
90338-08226-00
Unavailable
19
SCREW, TAPPING
97702-60016-00
Unavailable
20
CLAMP(4FM)
90464-13185-00
Unavailable
21
BAND
B88-2811G-00-00
Unavailable
22
FLAP
5JW-21621-10-00
Unavailable
23
GROMMET
90480-10M36-00
Unavailable
24
GROMMET
90480-10M36-00
Unavailable
25
COVER, REAR FENDER
B88-21651-00-P3
Unavailable
26
COVER, TAIL 1
B88-2471K-00-P3
Unavailable
27
COVER, TAIL 2
B88-2472K-00-P3
Unavailable
28
NUT, SPRING
90183-051A0-00
Unavailable
29
BOLT,HEX. SOCKET BUTTON
90111-05044-00
Unavailable
30
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
31
NUT, SPRING
90183-050A0-00
Unavailable
32
RIVET
90269-06081-00
Unavailable
33
COVER, REAR FENDER 2
3P6-2163E-01-P3
Unavailable
34
COVER, REAR FENDER 2
3P6-2163E-11-P3
Unavailable
35
COVER, REAR FENDER 3
3P6-2163F-01-P3
Unavailable
36
COVER, REAR FENDER 1
1MC-2163A-00-00
Unavailable
37
RIVET
90269-06081-00
Unavailable
38
YBS83-525 SCREW,PANH.TAPPING
97780-50125-00
Unavailable
39
TOOL KIT
B88-28100-00-00
Unavailable
40
PLATE, ROUTING
13S-21684-10-00
Unavailable
41
PLATE, ROUTING 2
1MC-21686-00-00
Unavailable
