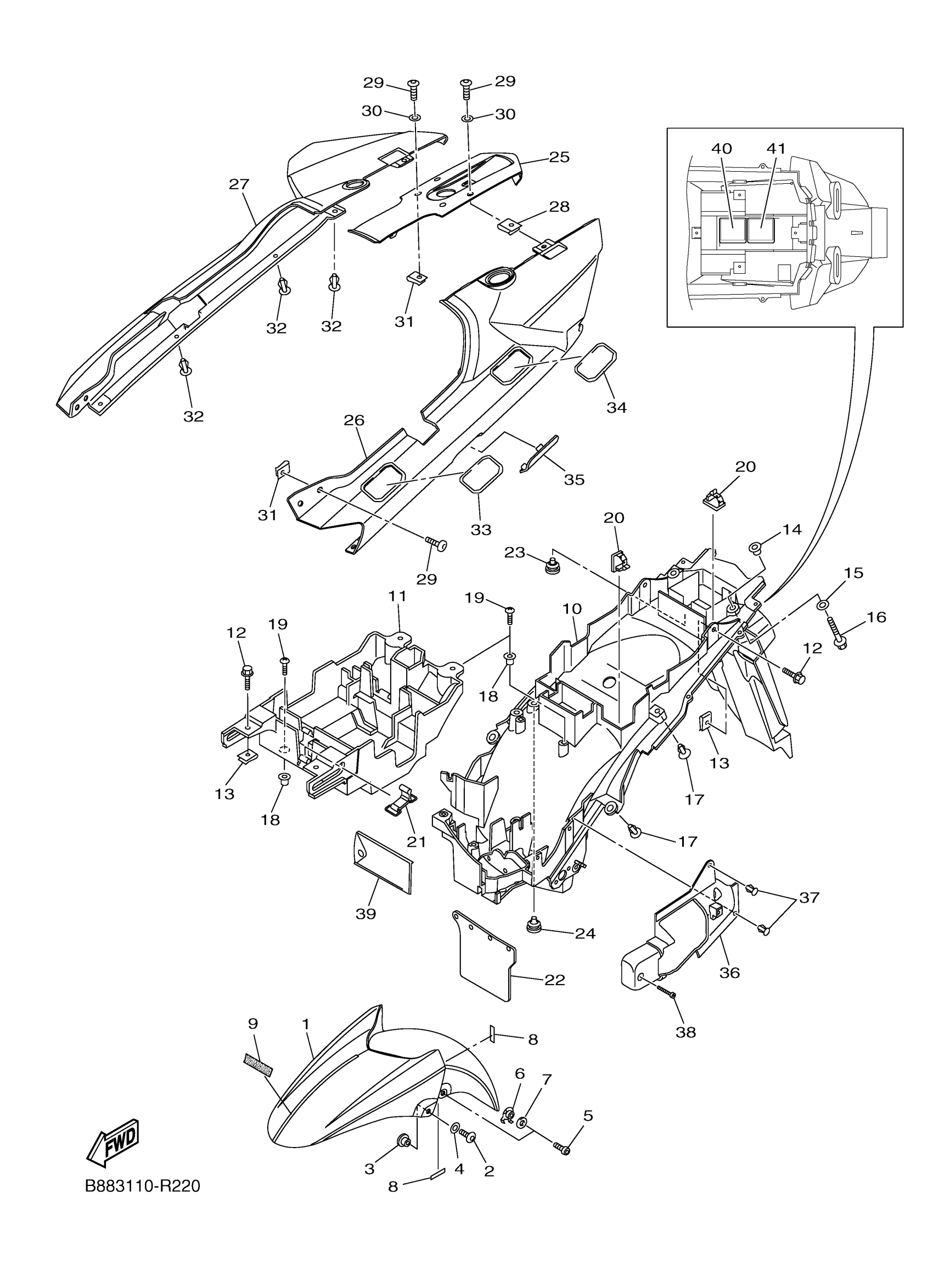

Yamaha FJR13AGC (FJR1300A CA) B884 2016 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3P6-21511-01-P2

Unavailable

2

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

3

COLLAR

90387-07006-00

Unavailable

4

WASHER, PLATE

90202-06170-00

Unavailable

5

BOLT, BUTTON HEAD

92012-06020-00

$8.49

6

NUT 1

3P6-21535-11-00

$22.99

7

DAMPER 1

3P6-21541-00-00

$6.99

8

DAMPER

5DM-28371-00-00

$7.99

9

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

10

REAR FENDER SET

99999-04541-00

$179.99

11

BOX

1MD-2160E-00-00

Unavailable

12

BOLT, WITH WASHER

90119-06159-00

$8.49

13

NUT, SPRING

90183-060A7-00

$8.49

14

COLLAR

90387-06231-00

Unavailable

15

WASHER, PLATE 8087752500

90201-07081-00

$10.49

16

BOLT, FLANGE

95817-06040-00

Unavailable

17

RIVET

90269-06081-00

Unavailable

18

PLUG(4BP)

90338-08226-00

Unavailable

19

SCREW, TAPPING

97702-60016-00

Unavailable

20

CLAMP(4FM)

90464-13185-00

Unavailable

21

BAND

B88-2811G-00-00

Unavailable

22

FLAP

5JW-21621-10-00

Unavailable

23

GROMMET

90480-10M36-00

Unavailable

24

GROMMET

90480-10M36-00

Unavailable

25

COVER, REAR FENDER

B88-21651-00-P2

Unavailable

26

COVER, TAIL 1

B88-2471K-00-P2

Unavailable

27

COVER, TAIL 2

B88-2472K-00-P2

Unavailable

28

NUT, SPRING

90183-051A0-00

Unavailable

29

BOLT,HEX. SOCKET BUTTON

90111-05044-00

Unavailable

30

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

31

NUT, SPRING

90183-050A0-00

Unavailable

32

RIVET

90269-06081-00

Unavailable

33

COVER, REAR FENDER 2

3P6-2163E-01-P1

Unavailable

34

COVER, REAR FENDER 2

3P6-2163E-11-P1

Unavailable

35

COVER, REAR FENDER 3

3P6-2163F-01-P1

Unavailable

36

COVER, REAR FENDER 1

1MC-2163A-00-00

Unavailable

37

RIVET

90269-06081-00

Unavailable

38

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

39

TOOL KIT

B88-28100-00-00

Unavailable
