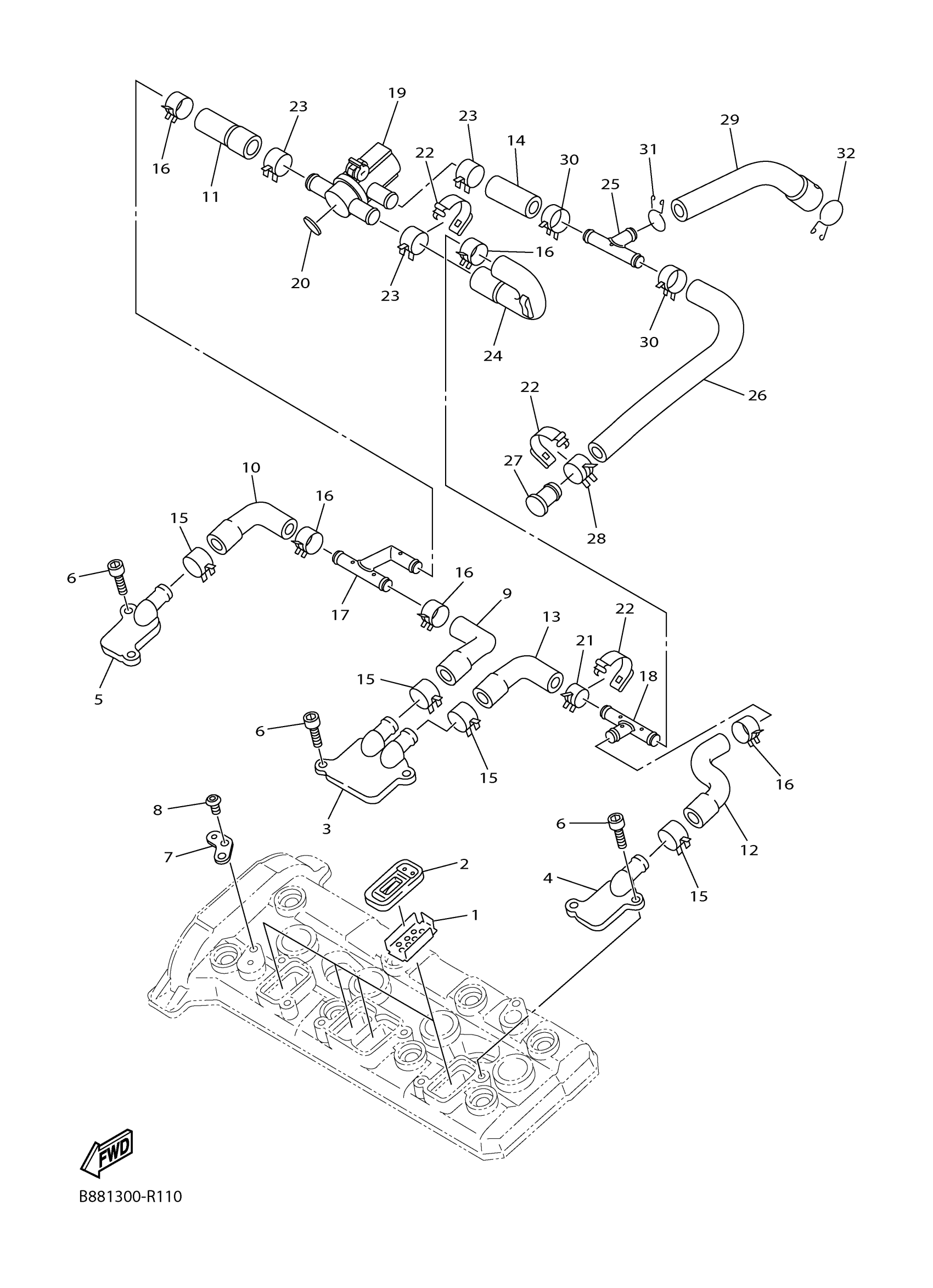

Yamaha FJR13AGC (FJR1300A CA) B884 2016 AIR INDUCTION SYSTEM Diagram

#

Description
Price

1

PLATE

5JW-1482K-01-00

$5.49

2

REED VALVE ASS

5JW-14890-00-00

$65.99

3

CAP, CASE

5JW-14899-10-00

Unavailable

4

CAP, CASE

5JW-14858-00-00

Unavailable

5

CAP, CASE

5JW-14889-00-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

7

PLATE

1MC-1111F-00-00

Unavailable

8

BOLT, BUTTON HEAD

92012-06010-00

$4.30

9

HOSE, BEND 1

1MC-14881-00-00

Unavailable

10

HOSE, BEND 2

1MC-14882-00-00

Unavailable

11

HOSE, BEND 3

1MC-14883-00-00

Unavailable

12

PIPE 4

1MC-14874-00-00

Unavailable

13

PIPE 5

1MC-14875-00-00

Unavailable

14

PIPE 6

1MC-14876-00-00

Unavailable

15

CLIP

90467-17003-00

$5.60

16

CLIP

90467-160A1-00

Unavailable

17

PIPE 1

3P6-14871-00-00

Unavailable

18

PIPE 2

3P6-14872-00-00

Unavailable

19

AIR CUT VALVE ASSY

2S3-14840-00-00

Unavailable

20

DAMPER

3P6-13593-00-00

Unavailable

21

CLIP

90468-08104-00

Unavailable

22

COVER 1

5JW-14723-00-00

Unavailable

23

CLIP(3TB)

90467-17128-00

Unavailable

24

HOSE, BEND 4

1MC-14884-00-00

Unavailable

25

JOINT

3P6-14833-00-00

Unavailable

26

HOSE, BEND 6

1MC-14886-00-00

Unavailable

27

PLUG

5JW-14862-00-00

Unavailable

28

CLIP(3TB)

90467-17128-00

Unavailable

29

HOSE, BEND 5

1MC-14885-00-00

Unavailable

30

CLIP(3TB)

90467-17128-00

Unavailable

31

CLIP

90467-170A2-00

Unavailable

32

CLIP

90467-20M15-00

Unavailable
