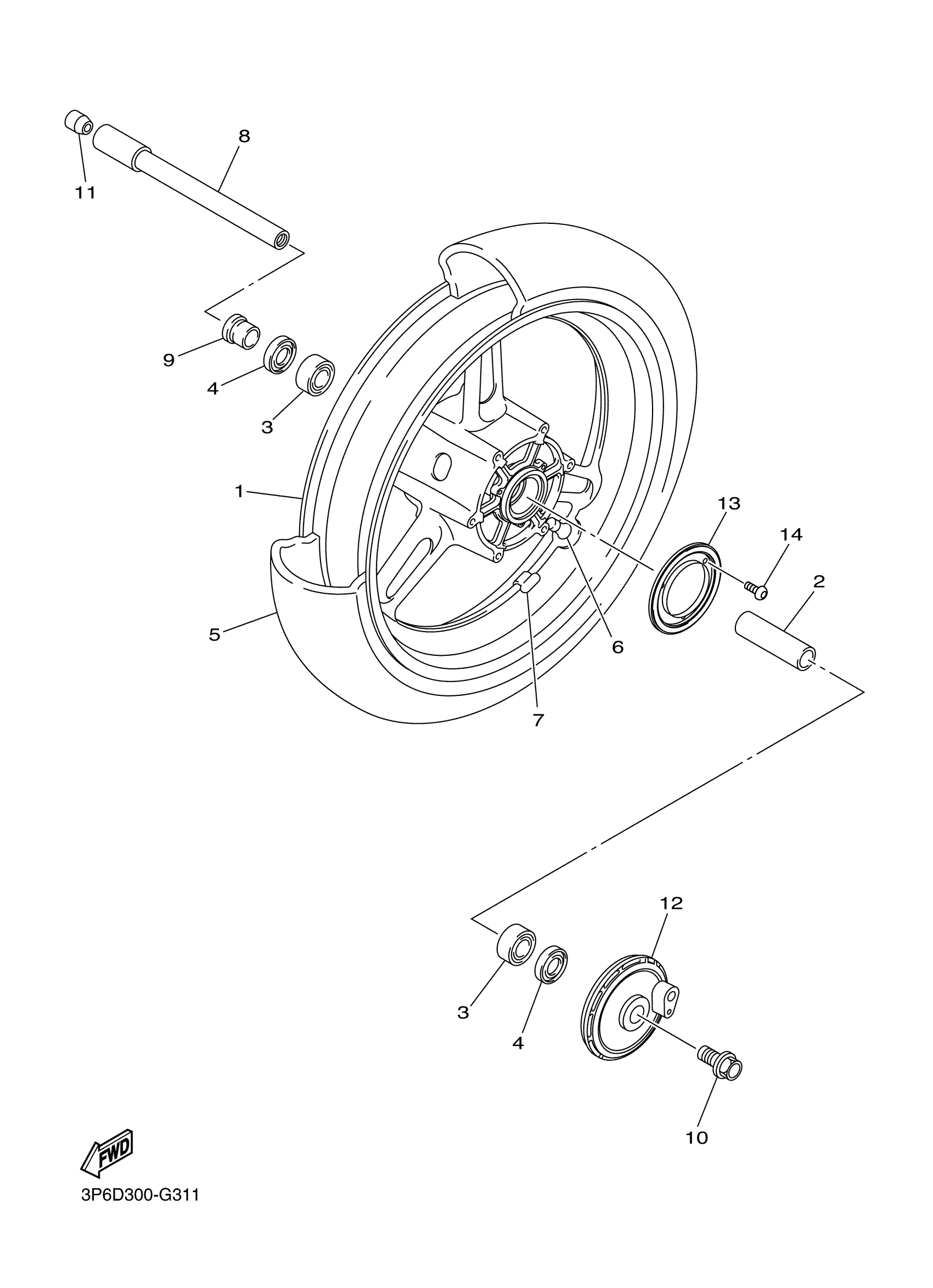

Yamaha FJR13AEYG (FJR1300AE) 2D2N 2009 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

3P6-25168-01-P0

Unavailable

2

SPACER, BEARING

4XV-25117-00-00

$35.99

3

BEARING 60/22

93306-00420-00

$40.99

4

OIL SEAL

93106-28043-00

$14.99

5

TIRE (120/70ZR17M/C 58W)

94112-17101-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$16.99

7

BALANCER, WHEEL

5MT-25398-00-00

$17.49

7

BALANCER, WHEEL

5MT-25398-10-00

$17.49

7

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

8

AXLE, WHEEL

2C0-25181-00-00

$105.99

9

COLLAR

90387-22016-00

$38.99

10

BOLT, FLANGE

90105-14002-00

$16.99

11

CAP

5PW-25188-00-00

$6.99

12

HOUSING, SENSOR FRONT

3P6-2517A-00-00

Unavailable

13

ROTOR, SENSOR

3P6-2517G-00-00

$45.99

14

SCREW

90149-05030-00

Unavailable
