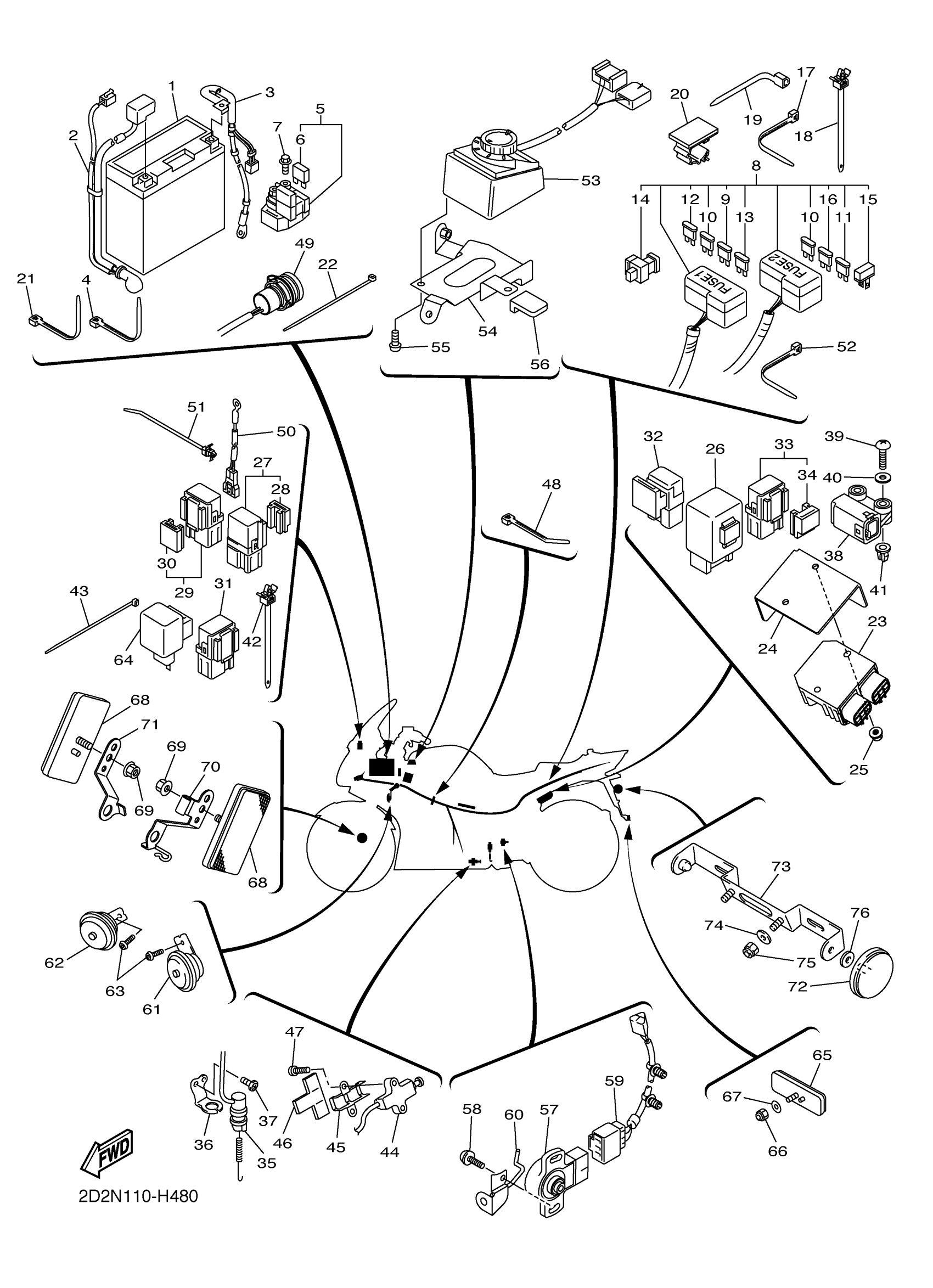

Yamaha FJR13AEYG (FJR1300AE) 2D2N 2009 ELECTRICAL 2 Diagram

#

Description
Price

1

GT14B4 GS BATTERY - FA

GT1-4B400-00-00

Unavailable

2

WIRE, PLUS LEAD

3P6-82115-00-00

Unavailable

3

WIRE, MINUS LEAD

3P6-82116-10-00

Unavailable

4

BAND

1UA-82591-00-00

$4.78

5

STARTER RELAY ASSY (RC19-085A)

3P6-81940-00-00

Unavailable

6

FUSE (12V 30A)

1AE-82151-00-00

$7.99

7

BOLT, FLANGE

95022-06008-00

$8.49

8

WIRE HARNESS ASSY

1DA-82590-10-00

Unavailable

9

. FUSE (3A)

67F-82151-30-00

Unavailable

10

. FUSE (10A)

67F-82151-40-00

Unavailable

11

FUSE (15A)

67F-82151-50-00

Unavailable

12

FUSE (25A-BL)

5JJ-82151-70-00

$6.99

13

FUSE

5JJ-82151-60-00

$7.99

14

FUSE (50A)

5JW-82151-10-00

$16.49

15

DIODE ASSY

5VG-81980-00-00

Unavailable

16

FUSE

5JJ-82151-20-00

Unavailable

17

CLAMP

90465-10098-00

Unavailable

18

CLAMP(2TV)

90464-10112-00

Unavailable

19

CLAMP(4FM)

90464-15195-00

Unavailable

20

CLAMP(4FM)

90464-13185-00

Unavailable

21

CLAMP(MF1)

90464-15152-00

Unavailable

22

CLAMP

5Y9-12491-00-00

Unavailable

23

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

24

PLATE, RECTIFIER FITTING

3P6-81975-00-00

Unavailable

25

NUT, U FLANGE

95604-06200-00

Unavailable

26

RELAY ASSY

5VK-81950-33-00

Unavailable

27

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

28

HOLDER,RELAY

5EA-81952-00-00

Unavailable

29

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

30

HOLDER,RELAY

5EA-81952-00-00

Unavailable

31

RELAY ASSY

5JJ-81950-11-00

Unavailable

32

RELAY ASSY

5DM-81950-01-00

Unavailable

33

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

34

HOLDER,RELAY

5EA-81952-00-00

Unavailable

35

STOP SWITCH ASSY

3P6-82530-00-00

Unavailable

36

STAY, STOP SWITCH

5JW-2144G-00-00

Unavailable

37

SCREW, BIND

98902-05008-00

Unavailable

38

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

39

SCREW, TAPPING

97702-40025-00

Unavailable

40

WASHER, PLATE

90201-04030-00

Unavailable

41

NUT, ADJUSTING

4B4-84334-00-00

Unavailable

42

CLAMP(2TV)

90464-10112-00

Unavailable

43

BAND

1UA-82591-00-00

$4.78

44

SWITCH, SIDE STAND

5PX-82566-51-00

Unavailable

45

PLATE

3P6-82388-00-00

Unavailable

46

DAMPER

3P6-82176-10-00

Unavailable

47

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

48

CLAMP

90465-10098-00

Unavailable

49

TERMINAL COMP.

3P6-8254B-00-00

Unavailable

50

THERMISTOR ASSY

5RU-85700-00-00

Unavailable

51

CLAMP

90464-24001-00

Unavailable

52

CLAMP

90465-10098-00

Unavailable

53

CONTROL UNIT ASSY

2D2-85590-00-00

Unavailable

54

BRACKET

2D2-85542-00-00

Unavailable

55

SCREW,TAPPING (EU6)

97780-30110-00

Unavailable

56

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

57

SENSOR ANGLE

2D2-85888-10-00

Unavailable

58

SCREW, WITH WASHER

90159-05036-00

Unavailable

59

WIRE, LEAD

2D2-82583-00-00

Unavailable

60

COVER, LEAD WIRE

2D2-82119-10-00

Unavailable

61

HORN

5PS-83371-00-00

Unavailable

62

HORN

3P6-83371-00-00

Unavailable

63

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

64

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable

65

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

66

NUT, U

95617-05100-00

Unavailable

67

WASHER, PLATE

90201-05043-00

Unavailable

68

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

69

NUT, FLANGE

95702-05500-00

Unavailable

70

BRACKET, REFLECTOR 1

3P6-85112-10-00

Unavailable

71

BRACKET, REFLECTOR 2

3P6-85122-01-00

Unavailable

72

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

73

BRACKET, LICENSE

5JW-84751-00-00

Unavailable

74

WASHER, PLATE

90201-06380-00

Unavailable

75

NUT, SELF-LOCKING

95617-06100-00

Unavailable

76

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable
