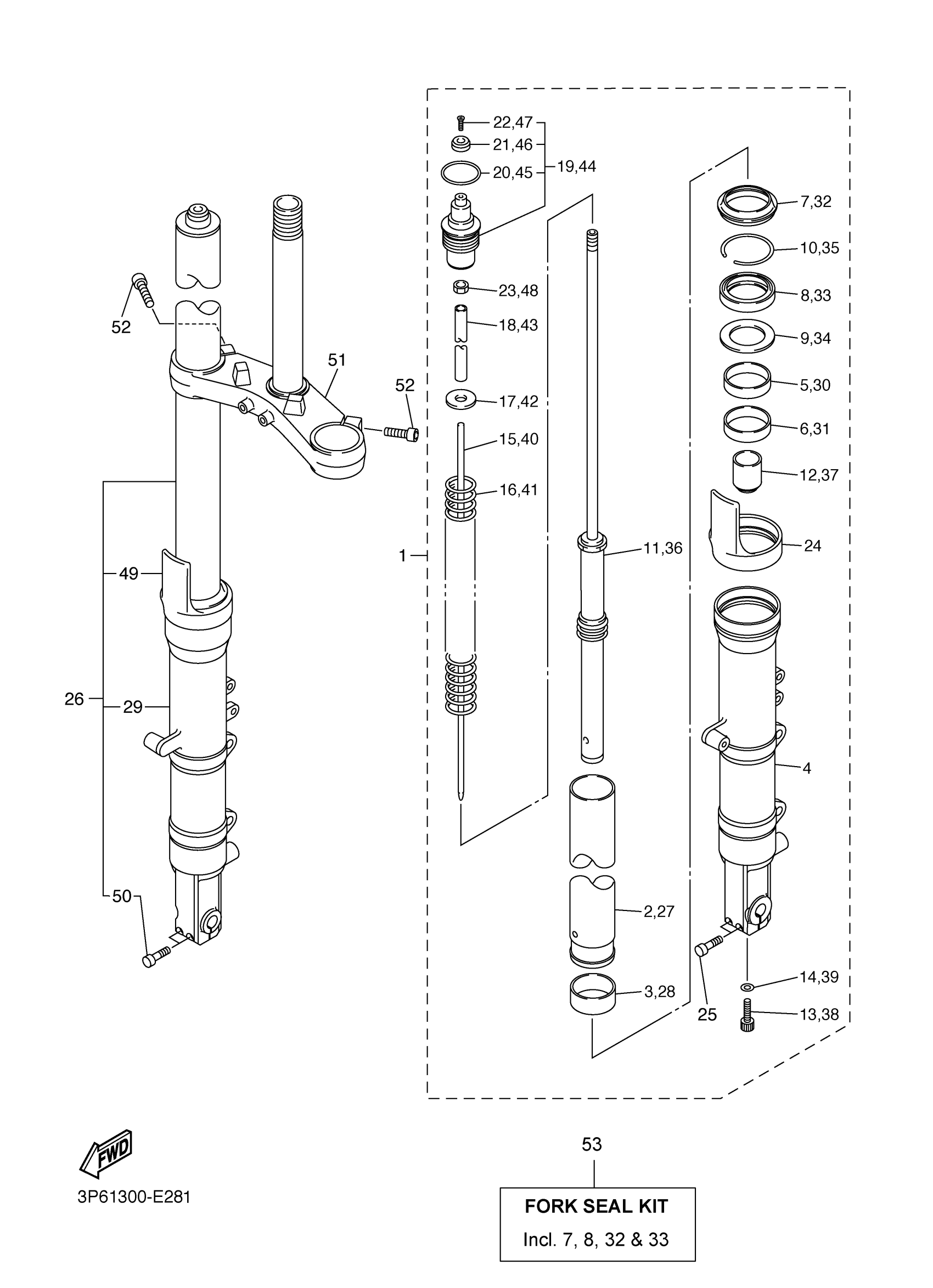

Yamaha FJR13AEXS (FJR 1300AE) 2D2G 2008 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

3P6-23102-01-00

$1,079.99

2

. INNER TUBE COMP 1

3P6-23110-00-00

Unavailable

3

METAL, SLIDE 2

4SV-23135-10-00

$20.99

4

OUTER TUBE COMP. (L.H)

3P6-23106-01-00

Unavailable

5

METAL, SLIDE 1

4SV-23125-10-00

$20.99

6

METAL, SLIDE 2

3P6-23135-00-00

$20.99

7

SEAL, DUST

4SV-23144-00-00

$16.49

8

OIL SEAL

4SV-23145-01-00

$18.49

9

SEAT 1

4SV-23115-00-00

$7.99

10

CLIP, OIL SEAL

4SV-23156-00-00

$7.99

11

CYLINDER COMP., FRONT FORK

3P6-23170-00-00

Unavailable

12

SPINDLE, TAPER

5LV-23173-00-00

$60.99

13

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

$7.49

14

GASKET (5R6)

90430-10171-00

$3.18

15

PLUNGER

5JW-2318Y-00-00

$7.99

16

SPRING, FRONT FORK

3P6-23141-00-00

Unavailable

17

WASHER, PLATE (856)

90201-10321-00

Unavailable

18

SPACER

5JW-23118-00-00

Unavailable

19

BOLT, CAP

5JW-23111-01-00

Unavailable

20

O-RING(4SV)

93210-40N50-00

Unavailable

21

KNOB (TEN)

5JW-2319W-00-00

Unavailable

22

SCREW, OVAL HEAD

98680-03008-00

Unavailable

23

NUT(3BM)

95314-10600-00

Unavailable

24

COVER

4SV-2331G-00-00

Unavailable

25

BOLT,SOCKET

91314-08045-00

Unavailable

26

FRONT FORK ASSY (R.H)

3P6-23103-01-00

Unavailable

27

. INNER TUBE COMP 1

3P6-23110-00-00

Unavailable

28

METAL, SLIDE 2

4SV-23135-10-00

$20.99

29

OUTER TUBE COMP. (R.H)

3P6-23107-01-00

Unavailable

30

METAL, SLIDE 1

4SV-23125-10-00

$20.99

31

METAL, SLIDE 2

3P6-23135-00-00

$20.99

32

SEAL, DUST

4SV-23144-00-00

$16.49

33

OIL SEAL

4SV-23145-01-00

$18.49

34

SEAT 1

4SV-23115-00-00

$7.99

35

CLIP, OIL SEAL

4SV-23156-00-00

$7.99

36

CYLINDER COMP., FRONT FORK

3P6-23170-00-00

Unavailable

37

SPINDLE, TAPER

5LV-23173-00-00

$60.99

38

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

$7.49

39

GASKET (5R6)

90430-10171-00

$3.18

40

PLUNGER

5JW-2318Y-00-00

$7.99

41

SPRING, FRONT FORK

3P6-23141-00-00

Unavailable

42

WASHER, PLATE (856)

90201-10321-00

Unavailable

43

SPACER

5JW-23118-00-00

Unavailable

44

BOLT, CAP

5JW-23111-01-00

Unavailable

45

O-RING(4SV)

93210-40N50-00

Unavailable

46

KNOB (TEN)

5JW-2319W-00-00

Unavailable

47

SCREW, OVAL HEAD

98680-03008-00

Unavailable

48

NUT(3BM)

95314-10600-00

Unavailable

49

COVER

4SV-2331G-00-00

Unavailable

50

BOLT,SOCKET

91314-08045-00

Unavailable

51

UNDER BRACKET COMP.

1MC-23340-10-00

Unavailable

52

BOLT, SOCKET

91317-08025-00

Unavailable

53

FORK SEAL KIT (TWO FORKS)

4SV-W003B-00-00

Unavailable
