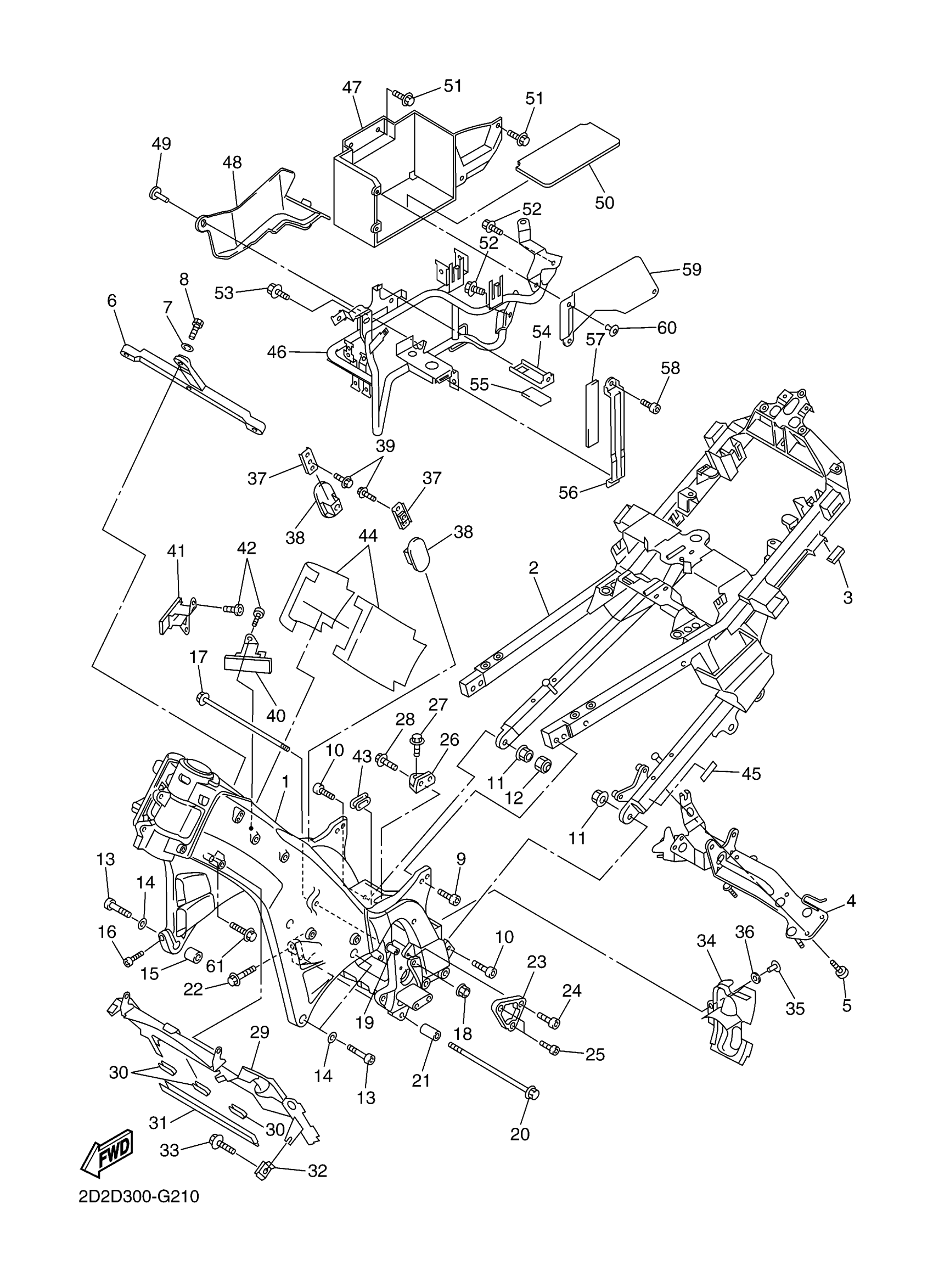

Yamaha FJR13AEXS (FJR 1300AE) 2D2G 2008 FRAME Diagram

#

Description
Price

1

FRAME COMP.

3P6-21110-00-00

Unavailable

2

REAR FRAME COMP.

2D2-21190-21-00

Unavailable

3

PROTECTOR

3P6-21652-00-00

$6.99

4

MEMBER 1

3P6-2115A-10-00

Unavailable

5

SCREW(4DN)

90149-06302-00

Unavailable

6

CROSS-TUBE

3P6-21119-00-00

Unavailable

7

WASHER, PLATE (17K)

90201-106F2-00

$10.49

8

BOLT, FLANGE

95817-10030-00

$8.49

9

BOLT, SOCKET

91317-08025-00

$8.49

10

BOLT, SOCKET

91314-10035-00

Unavailable

11

NUT, S/L FLANGE

95602-10200-00

$4.82

12

CAP

5YU-2143A-00-00

Unavailable

13

BOLT

91314-12055-00

$10.49

14

WASHER(6TA)

92907-12600-00

$1.71

15

COLLAR

90387-1312P-00

$18.99

16

BOLT,SOCKET

91314-08030-00

Unavailable

17

BOLT, WASHER BASED(1UF)

90105-10416-00

Unavailable

18

NUT

90179-10696-00

Unavailable

19

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

20

BOLT, WASHER BASED(4KM)

90105-10781-00

Unavailable

21

SPACER(3LN)

90560-10364-00

Unavailable

22

BOLT, FLANGE

95022-08035-00

Unavailable

23

STAY, ENGINE 2

3P6-21315-00-00

Unavailable

24

BOLT,SOCKET

91314-10020-00

Unavailable

25

BOLT,SOCKET

91314-08016-00

Unavailable

26

STAY, ENGINE 3

5JW-21316-00-00

Unavailable

27

BOLT (6TC)

90101-10M05-00

Unavailable

28

BOLT, WASHER BASED(36Y)

90105-08307-00

Unavailable

29

GUIDE, AIR

3P6-2137Y-00-00

Unavailable

30

SEAL

3P6-21269-00-00

Unavailable

31

SEAL, AIR

3P6-21469-00-00

Unavailable

32

NUT, SPRING(4ES)

90183-06069-00

Unavailable

33

BOLT, WITH WASHER(2WG)

90119-06172-00

Unavailable

34

COVER, SHAFT 1

2D2-2147J-00-00

Unavailable

35

RIVET

90269-07008-00

Unavailable

36

WASHER, PLATE

90202-06058-00

Unavailable

37

BRACKET 3

5JW-2118U-00-00

Unavailable

38

BRACKET, INNER 1

5JW-2113N-00-00

Unavailable

39

BOLT, FLANGE

95022-06012-00

Unavailable

40

BRACKET, INNER 2

5JW-2113R-01-00

Unavailable

41

BRACKET, INNER 2

5JW-2113R-11-00

Unavailable

42

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

43

CAP

5JW-2143A-00-00

Unavailable

44

DAMPER

5JW-21852-00-00

Unavailable

45

LABEL 1

5JW-2151A-02-00

Unavailable

46

STAY 1

3P6-28321-00-00

Unavailable

47

BOX, BATTERY

3P6-2177G-00-00

Unavailable

48

GUIDE, AIR 3

3P6-2137K-00-00

Unavailable

49

RIVET(4KM)

90269-05074-00

Unavailable

50

SEAT, BATTERY

5VX-82122-00-00

Unavailable

51

BOLT, WITH WASHER

90119-06209-00

Unavailable

52

BOLT, FLANGE

95022-06012-00

Unavailable

53

BOLT, FLANGE

95817-06014-00

Unavailable

54

STAY 2

5JW-28357-01-00

Unavailable

55

DAMPER 3

5JW-28425-00-00

Unavailable

56

STAY 3

5JW-28358-00-00

Unavailable

57

DAMPER 4

5JW-28435-00-00

Unavailable

58

BOLT,SOCKET

91317-06012-00

Unavailable

59

COVER

5JW-2172W-00-00

Unavailable

60

RIVET

90269-06001-00

Unavailable

61

BOLT, FLANGE

95022-06010-00

Unavailable
