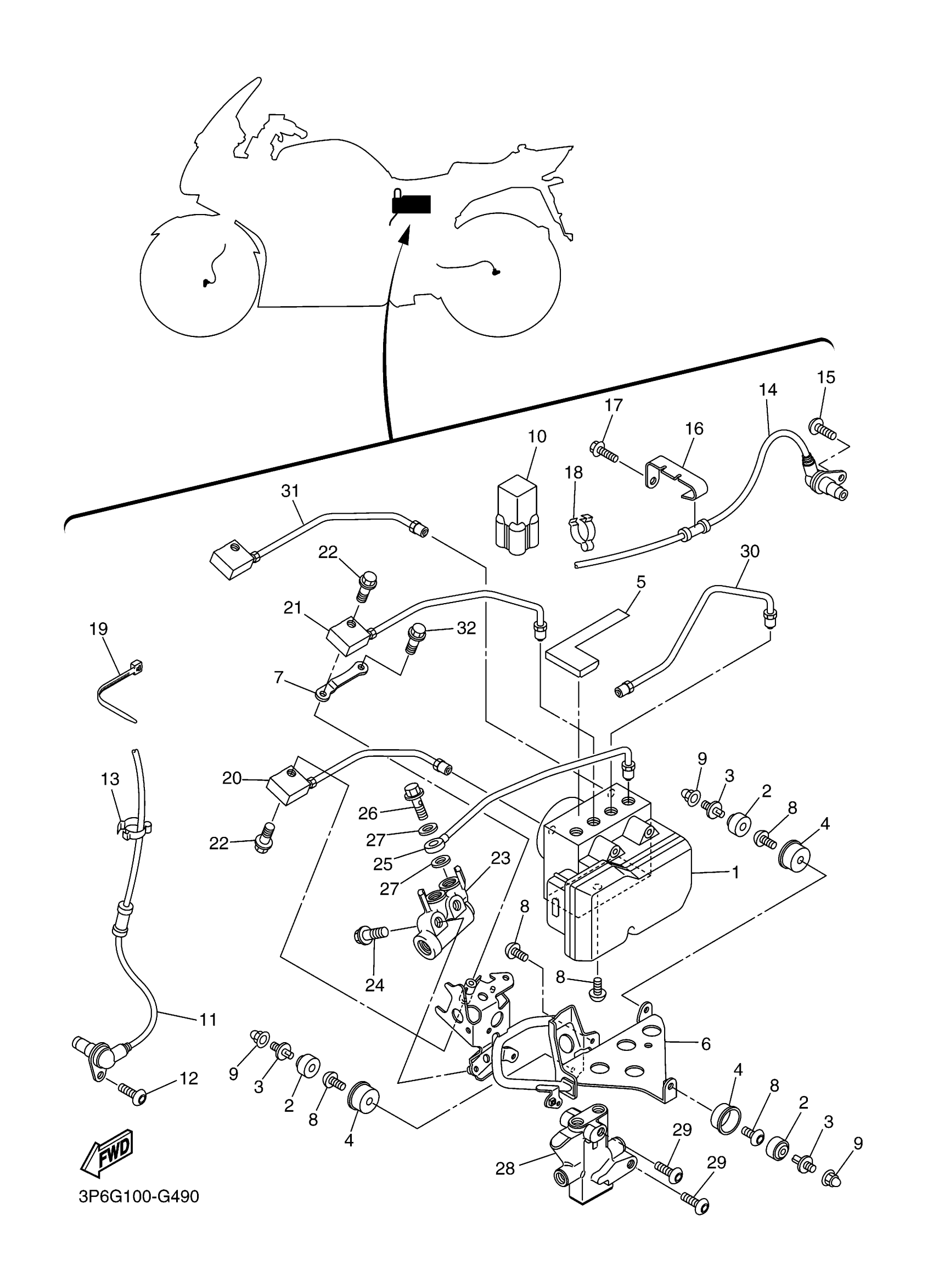

Yamaha FJR13AEXS (FJR 1300AE) 2D2G 2008 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASSY

3P6-85930-18-00

Unavailable

2

DAMPER

5CG-85113-00-00

Unavailable

3

BOLT

5CG-2535E-00-00

Unavailable

4

CAP, DAMPER

3P6-85916-00-00

Unavailable

5

PROTECTOR

3P6-2117G-00-00

Unavailable

6

BRACKET 1

3P6-2175T-10-00

Unavailable

7

STAY, SIDE COVER 1

3P6-2172E-00-00

Unavailable

8

BOLT, BUTTON HEAD

92012-06010-00

$4.30

9

NUT, CROWN (4G0)

90176-08026-00

$14.99

10

CONNECTOR

3YA-82378-00-00

Unavailable

11

WHEEL SENSOR ASSY, FRONT

3P6-85970-11-00

$199.99

12

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

13

CLAMP

90464-14003-00

Unavailable

14

WHEEL SENSOR ASSY, REAR

3P6-85980-11-00

Unavailable

15

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

16

HOLDER, WIRE

3P6-86159-00-00

Unavailable

17

BOLT, FLANGE

90105-05014-00

Unavailable

18

CLAMP

90464-12013-00

Unavailable

19

CLAMP

90465-10098-00

Unavailable

20

PIPE, BRAKE

3P6-25871-00-00

Unavailable

21

PIPE, BRAKE 2

3P6-25882-10-00

Unavailable

22

BOLT, FLANGE

95022-06025-00

Unavailable

23

METERING VALVE ASSY

3P6-25940-00-00

Unavailable

24

BOLT, FLANGE

95817-06030-00

Unavailable

25

PIPE, BRAKE 4

3P6-2588A-10-00

Unavailable

26

BOLT, UNION

90401-10020-00

Unavailable

27

GASKET

90430-10005-00

Unavailable

28

VALVE, PROPORTIONING

3P6-25884-00-00

Unavailable

29

BOLT, BUTTON HEAD

92012-06040-00

Unavailable

30

PIPE, BRAKE 5

3P6-2588B-00-00

Unavailable

31

PIPE, BRAKE 3

3P6-25883-10-00

Unavailable

32

BOLT, FLANGE

95022-06025-00

Unavailable
