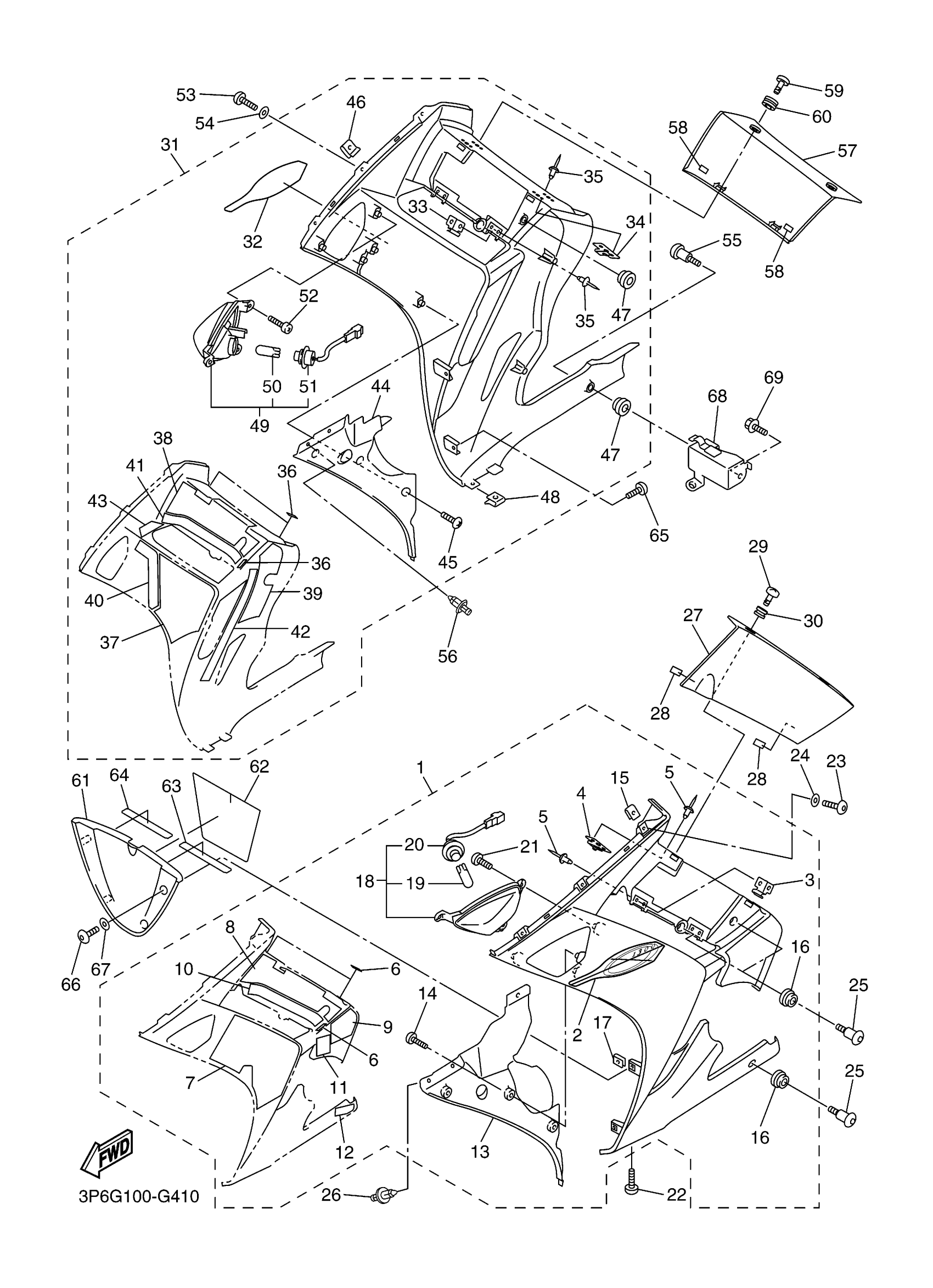

Yamaha FJR13AEXS (FJR 1300AE) 2D2G 2008 COWLING 2 Diagram

#

Description
Price

1

BODY, FRONT LOWER 1 (DARK GRAY METALLIC G)

3P6-Y283J-C0-P9

Unavailable

1

BODY, FRONT LOWER 1

3P6-Y283J-E0-P4

Unavailable

2

. EMBLEM

3P6-28328-10-00

Unavailable

3

HINGE

3P6-21796-00-00

Unavailable

4

PLATE, SPRING

3XV-2177L-00-00

$6.99

5

RIVET, BLIND (24R)

90267-32103-00

Unavailable

6

SEAL

3P6-28307-00-00

$2.34

7

. DAMPER 1

3P6-28415-00-00

Unavailable

8

DAMPER 2

3P6-28416-00-00

$6.99

9

DAMPER 4

3P6-28435-00-00

Unavailable

10

DAMPER 1

3P6-2834E-00-00

Unavailable

11

. DAMPER 5

3P6-2837J-00-00

Unavailable

12

DAMPER 5

5VY-2837J-00-00

$6.99

13

PANEL, INNER 1

3P6-2836K-00-00

Unavailable

14

SCREW, TAPPING

97702-50016-00

$2.39

15

NUT, SPRING

90183-051A0-00

Unavailable

16

GROMMET

90480-13014-00

Unavailable

17

NUT, SPRING

90183-051A0-00

Unavailable

18

FRONT FLASHER LIGHT ASSY 1

3P6-83310-10-00

Unavailable

19

BULB, FLASHER

3P6-83331-10-00

Unavailable

20

SOCKET CORD ASSY

3P6-83509-10-00

Unavailable

21

SCREW, TAPPING

97702-50016-00

$2.39

22

BOLT

90111-05003-00

Unavailable

23

BOLT

90111-05003-00

Unavailable

24

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

25

BOLT

90109-06037-00

Unavailable

26

RIVET

90269-06008-00

Unavailable

27

VISOR, SIDE 1 (DARK GRAY METALLIC G)

3P6-2830C-00-P9

Unavailable

28

DAMPER 1

3P6-28217-00-00

Unavailable

29

HEAD

3XV-28386-00-00

Unavailable

30

GROMMET

90480-09001-00

Unavailable

31

BODY, FRONT LOWER 2

3P6-Y283K-C0-P9

Unavailable

31

BODY, FRONT LOWER 2

3P6-Y283K-E0-P4

Unavailable

32

. EMBLEM

3P6-28338-10-00

Unavailable

33

HINGE

3P6-21796-00-00

Unavailable

34

PLATE, SPRING

3XV-2177L-00-00

$6.99

35

RIVET, BLIND (24R)

90267-32103-00

Unavailable

36

SEAL

3P6-28307-00-00

$2.34

37

DAMPER 3

3P6-28425-00-00

Unavailable

38

DAMPER 2

3P6-28416-10-00

Unavailable

39

DAMPER, 4

3P6-28455-00-00

Unavailable

40

DAMPER

3P6-28371-00-00

Unavailable

41

DAMPER

3P6-2834F-00-00

Unavailable

42

DAMPER 6

3P6-2837K-00-00

Unavailable

43

DAMPER 8

3P6-2847N-00-00

Unavailable

44

PANEL, INNER 2

3P6-2836L-00-00

Unavailable

45

SCREW, TAPPING

97702-50016-00

$2.39

46

NUT, SPRING

90183-051A0-00

Unavailable

47

GROMMET

90480-13014-00

Unavailable

48

NUT, SPRING

90183-051A0-00

Unavailable

49

FRONT FLASHER LIGHT ASSY 2

3P6-83320-10-00

Unavailable

50

BULB, FLASHER

3P6-83331-10-00

Unavailable

51

SOCKET CORD ASSY

3P6-83509-00-00

Unavailable

52

SCREW, TAPPING

97702-50016-00

$2.39

53

BOLT

90111-05003-00

Unavailable

54

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

55

BOLT

90109-06037-00

Unavailable

56

RIVET

90269-06008-00

Unavailable

57

VISOR, SIDE 2 (DARK GRAY METALLIC G)

3P6-2830D-00-P9

Unavailable

58

DAMPER 1

3P6-28217-00-00

Unavailable

59

HEAD

3XV-28386-00-00

Unavailable

60

GROMMET

90480-09001-00

Unavailable

61

COVER, LOWER (DARK GRAY METALLIC G)

3P6-28385-00-P9

Unavailable

62

SEAT

3P6-2848H-00-00

Unavailable

63

SEAT 2

3P6-2848K-00-00

Unavailable

64

SEAT 3

3P6-2848L-00-00

Unavailable

65

SCREW, TAPPING

97702-50016-00

$2.39

66

BOLT

90111-05003-00

Unavailable

67

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

68

BRACKET 3

5JW-2836F-00-00

Unavailable

69

BOLT, FLANGE

95817-06012-00

Unavailable
