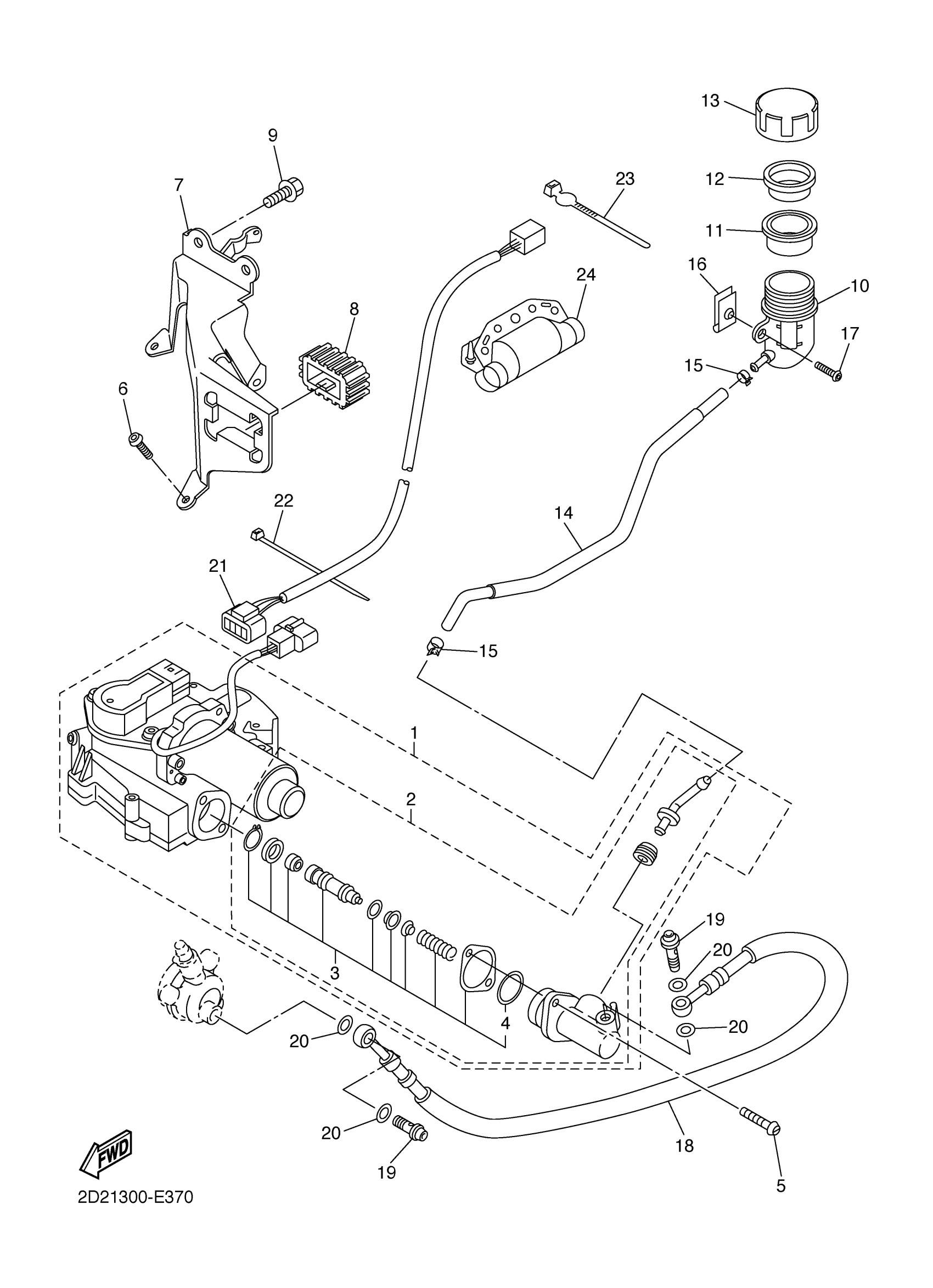

Yamaha FJR13AEWC (FJR1300AE CA) 2D2B 2007 CLUCH ACTUATOR Diagram

#

Description
Price

1

CLUCH ACTUATOR ASSY

2D2-82460-40-00

Unavailable

2

MASTER CYLINDER SUB ASSY

2D2-W2645-02-00

Unavailable

3

CYLINDER KIT, MASTER (CLUTCH)

2D2-W0099-10-00

Unavailable

4

O-RING (22F)

93210-25552-00

$13.49

5

SCREW

90149-06159-00

$7.49

6

BOLT, BUTTON HEAD

92012-06012-00

$4.35

7

STAY

2D2-2117A-00-00

Unavailable

8

DAMPER 2

2D2-2139U-00-00

Unavailable

9

BOLT, FLANGE

95814-08016-00

$9.49

10

TANK, RESERVOIR

4FM-25894-00-00

$19.49

11

DIAPHRAGM, RESERVOIR

3GK-25854-50-00

$9.99

12

BUSH,DIAPHRAGM

3GK-25855-50-00

$6.99

13

CAP, RESERVOIR

4FM-25852-00-00

$23.99

14

HOSE

2D2-2589E-00-00

Unavailable

15

CLIP (7K7)

90467-11044-00

$8.49

16

NUT, SPRING(4ES)

90183-06069-00

Unavailable

17

BOLT, WITH WASHER

90119-06242-00

Unavailable

18

HOSE, CLUTCH

2D2-26470-00-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

WIRE, LEAD

2D2-82507-00-00

Unavailable

22

CLAMP

5Y9-12491-00-00

Unavailable

23

CLAMP

90465-10098-00

Unavailable

24

COVER

5KN-8252U-00-00

Unavailable
