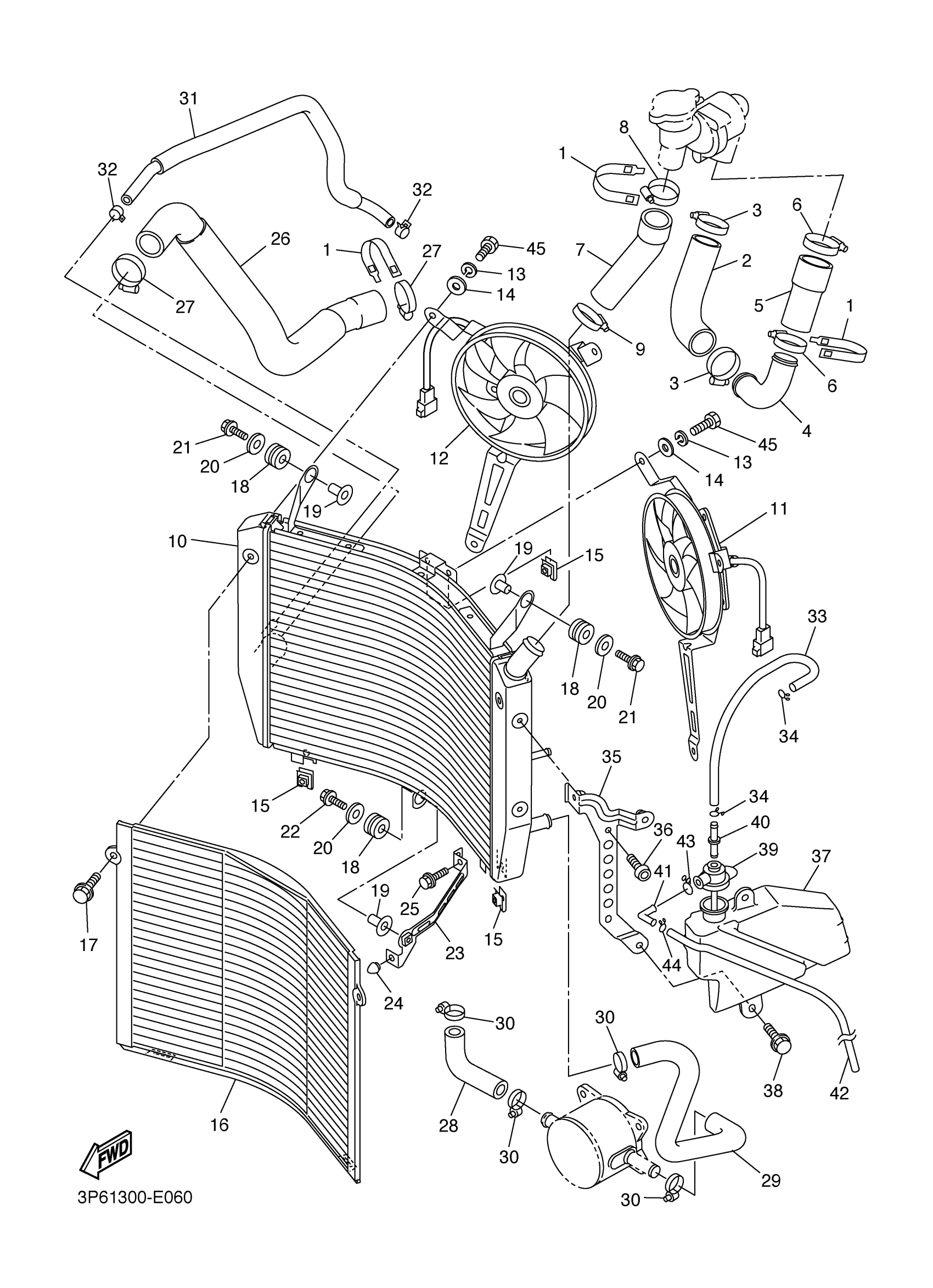

Yamaha FJR13AEVC (FJR13 CA Electric Shift) 2D25 2006 RADIATOR HOSE Diagram

#

Description
Price

1

COVER 2

5GV-1246E-00-00

$4.68

2

HOSE 7

3P6-12551-00-00

$22.99

3

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

4

PIPE 2

3P6-12482-02-00

$43.99

5

HOSE 5

3P6-12588-00-00

$12.99

6

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

7

HOSE,3

3P6-1243F-00-00

$18.49

8

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

9

HOSE CLAMP ASSY

90450-32003-00

$16.99

10

RADIATOR ASSY

3P6-12461-00-00

$713.99

11

BLOWER ASSY

3P6-12405-00-00

Unavailable

12

BLOWER ASSY

3P6-12405-10-00

Unavailable

13

WASHER, SPRING

92907-06100-00

$4.25

14

WASHER(6TA)

92907-06600-00

$2.72

15

PLATE

1AA-12535-00-00

$14.49

16

COVER, RADIATOR

3P6-12467-00-00

Unavailable

17

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

18

GROMMET (29L)

90480-15363-00

Unavailable

19

COLLAR

90387-06039-00

Unavailable

20

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

21

95822-06030

95822-06030-00

Unavailable

22

BOLT, FLANGE

95822-06025-00

Unavailable

23

STAY, RADIATOR

3P6-12464-00-00

Unavailable

24

DAMPER 2

5A8-21639-00-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable

26

HOSE 6

3P6-12589-00-00

Unavailable

27

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

28

HOSE 7

5JW-12551-00-00

Unavailable

29

HOSE 8

3P6-12552-00-00

Unavailable

30

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

31

HOSE 1

3P6-1243A-00-00

Unavailable

32

CLIP(3BM)

90467-10135-00

Unavailable

33

HOSE, 4

3P6-1244G-00-00

Unavailable

34

CLIP (16G)

90467-08021-00

Unavailable

35

BRACKET, RECOVERY TANK

3P6-21873-00-00

Unavailable

36

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

37

TANK, RECOVERY

3P6-21871-00-00

Unavailable

38

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

39

CAP

3P6-21875-00-00

Unavailable

40

JOINT

4XY-14568-00-00

Unavailable

41

ELBOW

26H-21828-00-00

Unavailable

42

PIPE 1

3P6-21816-01-00

Unavailable

43

CLIP

90467-10M04-00

Unavailable

44

CLIP 101235600

90467-08003-00

Unavailable

45

BOLT, HEXAGON

97017-06012-00

Unavailable
