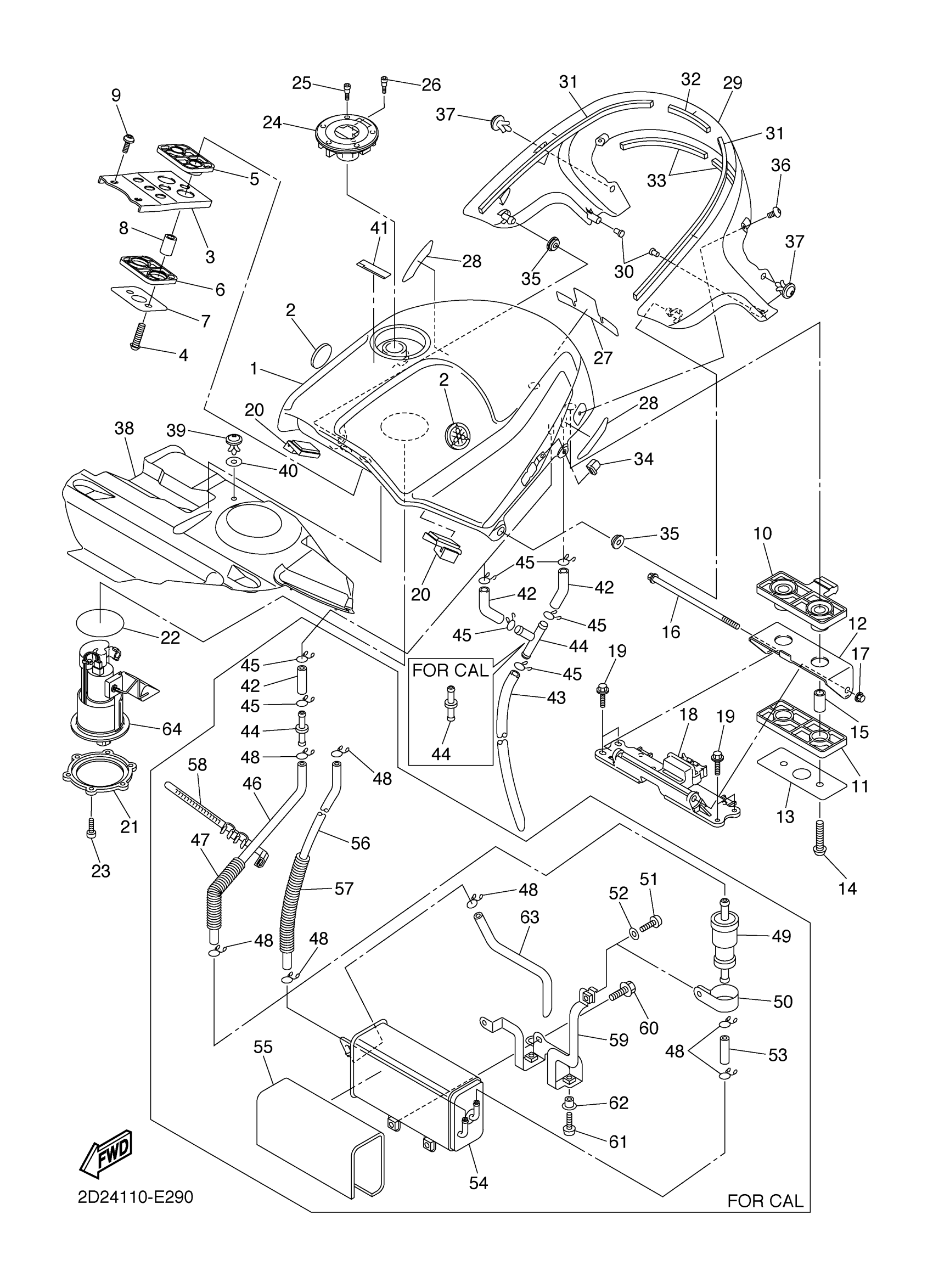

Yamaha FJR13AEVC (FJR13 CA Electric Shift) 2D25 2006 FUEL TANK Diagram
#
1
FUEL TANK COMP. (BLUISH SILVER 4)
3P6-YK241-00-P0
Unavailable
2
EMBLEM
5JW-2413B-00-00
Unavailable
6
DAMPER, LOCATING 2
5JW-24182-00-00
Unavailable
7
WASHER, SPECIAL
5JW-24187-00-00
Unavailable
10
DAMPER, LOCATING 3
3P6-24183-00-00
Unavailable
13
WASHER, SPECIAL
5JW-24186-00-00
Unavailable
16
BOLT, FLANGE
95817-08160-00
Unavailable
17
NUT,FLANGE(J10)
95702-08500-00
Unavailable
18
BRACKT, TANK FITTING
3P6-21348-00-00
Unavailable
19
BOLT, FLANGE
95817-06020-00
Unavailable
20
DAMPER, LOCATING 4
3P6-24184-00-00
Unavailable
21
BRACKET, FUEL PUMP
5JW-24491-00-00
Unavailable
22
O-RING
19B-24486-01-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
24
CAP ASSY
39P-24602-00-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
26
BOLT
91312-05010-00
Unavailable
27
PROTECTOR
3P6-24595-00-00
Unavailable
28
PROTECTOR
3P6-2376R-00-00
Unavailable
29
COVER, SIDE 1
3P6-24129-10-P1
Unavailable
30
PLUG(1NL)
90338-07180-00
Unavailable
31
DAMPER, PLATE 1
3P6-2414H-00-00
Unavailable
32
DAMPER, PLATE 2
3P6-2414J-00-00
Unavailable
33
DAMPER, PLATE 6
2D1-2414R-00-00
Unavailable
34
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
35
GROMMET(4DN)
90480-01558-00
Unavailable
36
BOLT,HEX. SOCKET BUTTON
90111-05023-00
Unavailable
37
RIVET
90269-06081-00
Unavailable
38
INSULATOR, FUEL TANK 1
3P6-2416F-00-00
Unavailable
39
RIVET
90269-06081-00
Unavailable
40
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
41
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
42
HOSE (L120)
90445-113E8-00
Unavailable
43
HOSE (L500)
90445-11036-00
Unavailable
44
JOINT
4XY-14568-00-00
Unavailable
44
WAY 3 (10L)
90413-07007-00
Unavailable
45
CLIP
90467-100A1-00
Unavailable
46
HOSE (L765)
90445-11043-00
Unavailable
47
PROTECTOR, PIPE
3P6-24327-00-00
Unavailable
48
CLIP
90467-100A1-00
Unavailable
49
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
50
CLAMP
90464-15014-00
Unavailable
51
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
52
WASHER, PLAIN (646)
92990-05600-00
Unavailable
53
HOSE (L120)
90445-113E8-00
Unavailable
54
CANISTER ASSY
3P6-24170-00-00
Unavailable
55
SEAL 2
3P6-2414E-00-00
Unavailable
56
PIPE
3P6-1443J-00-00
Unavailable
57
PROTECTOR, PIPE 2
3P6-2432A-00-00
Unavailable
58
CLAMP
90464-10009-00
Unavailable
59
BRACKET, CANISTOR
3P6-2419F-00-00
Unavailable
60
BOLT, FLANGE
95814-06012-00
Unavailable
61
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
62
COLLAR(4JX)
90387-0603J-00
Unavailable
63
PIPE 4
3P6-24314-00-00
Unavailable
64
FUEL PUMP COMP.
5JW-13907-25-00
Unavailable
