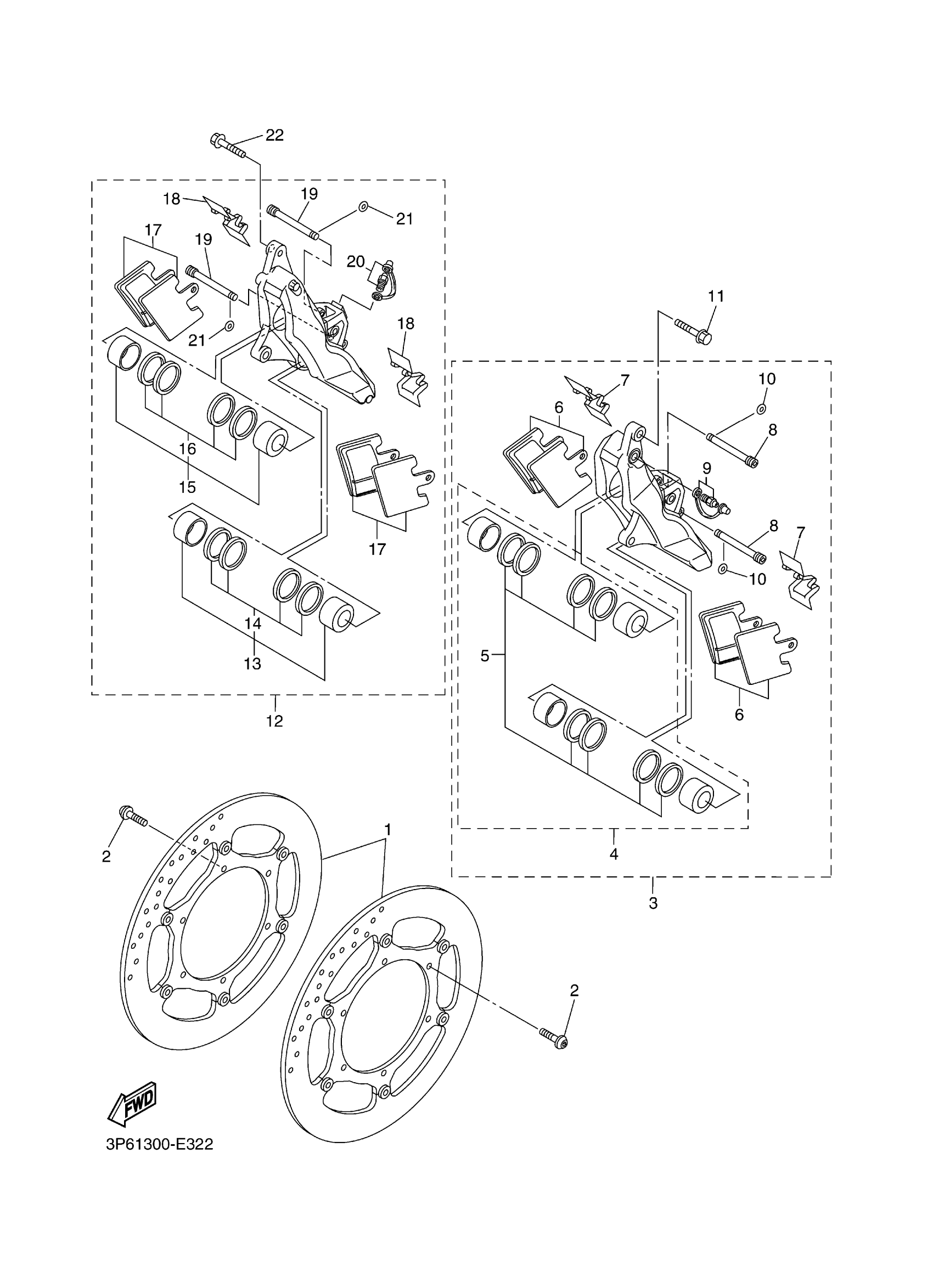

Yamaha FJR13AEVC (FJR13 CA Electric Shift) 2D25 2006 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

3P6-2581T-01-00

$346.99

2

BOLT

90109-06254-00

$8.49

3

CALIPER ASSY (LEFT)

3P6-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

3P6-25802-01-00

$223.99

5

CALIPER SEAL KIT

3P6-W0047-00-00

Unavailable

6

BRAKE PAD KIT

3P6-W0045-00-00

$44.99

7

SUPPORT, PAD

3P6-25919-00-00

$59.99

8

PIN, PAD

3P6-25924-00-00

$63.99

9

BLEED SCREW KIT

8CR-W0048-00-00

$13.49

10

STOPPER

3P6-25925-00-00

Unavailable

11

BOLT, WASHER BASED

90105-105A7-00

$8.49

12

CALIPER ASSY (RIGHT)

3P6-2580U-00-00

Unavailable

13

PISTON ASSY, CALIPER

3P6-W0057-10-00

Unavailable

14

CALIPER SEAL KIT

3P6-W0047-10-00

$30.99

15

PISTON ASSY, CALIPER

3P6-W0057-20-00

Unavailable

16

CALIPER SEAL KIT

3P6-W0047-20-00

Unavailable

17

BRAKE PAD KIT

3P6-W0045-00-00

$44.99

18

SUPPORT, PAD

3P6-25919-00-00

$59.99

19

PIN, PAD

3P6-25924-00-00

$63.99

20

BLEED SCREW KIT

8CR-W0048-00-00

$13.49

21

STOPPER

3P6-25925-00-00

Unavailable

22

BOLT, WASHER BASED

90105-105A7-00

$8.49
