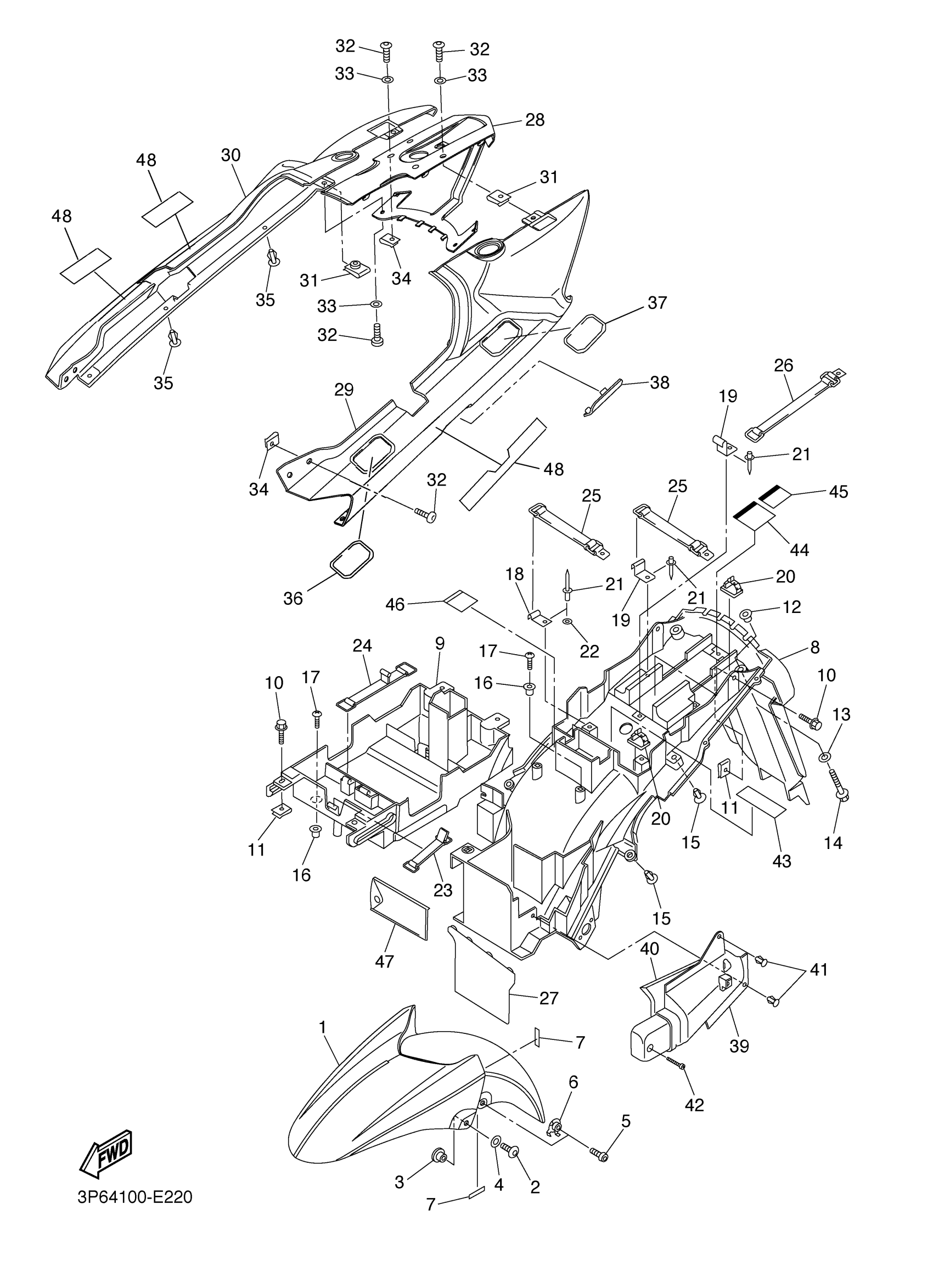

Yamaha FJR13AEVC (FJR13 CA Electric Shift) 2D25 2006 FENDER Diagram

#

Description
Price

1

FENDER, FRONT (BLUISH SILVER 4)

3P6-21511-00-P0

Unavailable

2

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

3

COLLAR

90387-07006-00

Unavailable

4

WASHER, PLATE

90202-06170-00

Unavailable

5

BOLT, BUTTON HEAD

92014-06020-00

Unavailable

6

NUT, SET

99999-04236-00

$18.99

7

DAMPER

5DM-28371-00-00

$7.99

8

FENDER, REAR

3P6-21611-00-00

$135.99

9

BOX

3P6-2160E-00-00

Unavailable

10

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

11

NUT, SPRING (26H)

90183-06023-00

$9.49

12

COLLAR

90387-06050-00

Unavailable

13

WASHER, PLATE 8087752500

90201-07081-00

$10.49

14

BOLT, FLANGE

95817-06040-00

$5.60

15

RIVET

90269-06081-00

$7.49

16

PLUG(4BP)

90338-08226-00

Unavailable

17

SCREW, TAPPING

97702-60016-00

Unavailable

18

HOOK

5PS-2162A-00-00

Unavailable

19

HOOK

4HM-2162A-00-00

Unavailable

20

CLAMP(4FM)

90464-13185-00

Unavailable

21

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

22

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

23

BAND

36X-2811G-00-00

Unavailable

24

BAND, BATTERY

4J2-82131-01-00

Unavailable

25

BAND

5JW-21647-01-00

Unavailable

26

BAND

3P6-21647-00-00

Unavailable

27

FLAP

5JW-21621-10-00

Unavailable

28

COVER, REAR FENDER

3P6-21651-00-P0

Unavailable

29

COVER, TAIL 1

3P6-2471K-00-P0

Unavailable

30

COVER, TAIL 2

3P6-2472K-00-P0

Unavailable

31

NUT, SPRING

90183-051A0-00

Unavailable

32

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

33

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

34

NUT, SPRING

90183-050A0-00

Unavailable

35

RIVET

90269-06081-00

$7.49

36

COVER, REAR FENDER 2

3P6-2163E-01-P0

Unavailable

37

COVER, REAR FENDER 2

3P6-2163E-11-P0

Unavailable

38

COVER, REAR FENDER 3

3P6-2163F-01-P0

Unavailable

39

COVER, REAR FENDER 1

3P6-2163A-00-00

Unavailable

40

DAMPER 2

3P6-21639-00-00

Unavailable

41

RIVET

90269-06081-00

$7.49

42

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

43

PLATE, EPA 2 (CALIFORNIA)

3P6-2179R-00-00

Unavailable

43

PLATE, EPA (NON CALIFORNIA)

3P6-2179W-00-00

Unavailable

44

PLATE, ROUTING

5PW-21684-00-00

Unavailable

45

PLATE, ROUTING 2

5SL-21686-00-00

Unavailable

46

LABEL

5VX-2178A-00-00

Unavailable

47

TOOL KIT

5JW-28100-01-00

Unavailable

48

FJR PROTECT STICKER SET

5JW-W9390-00-00

Unavailable
