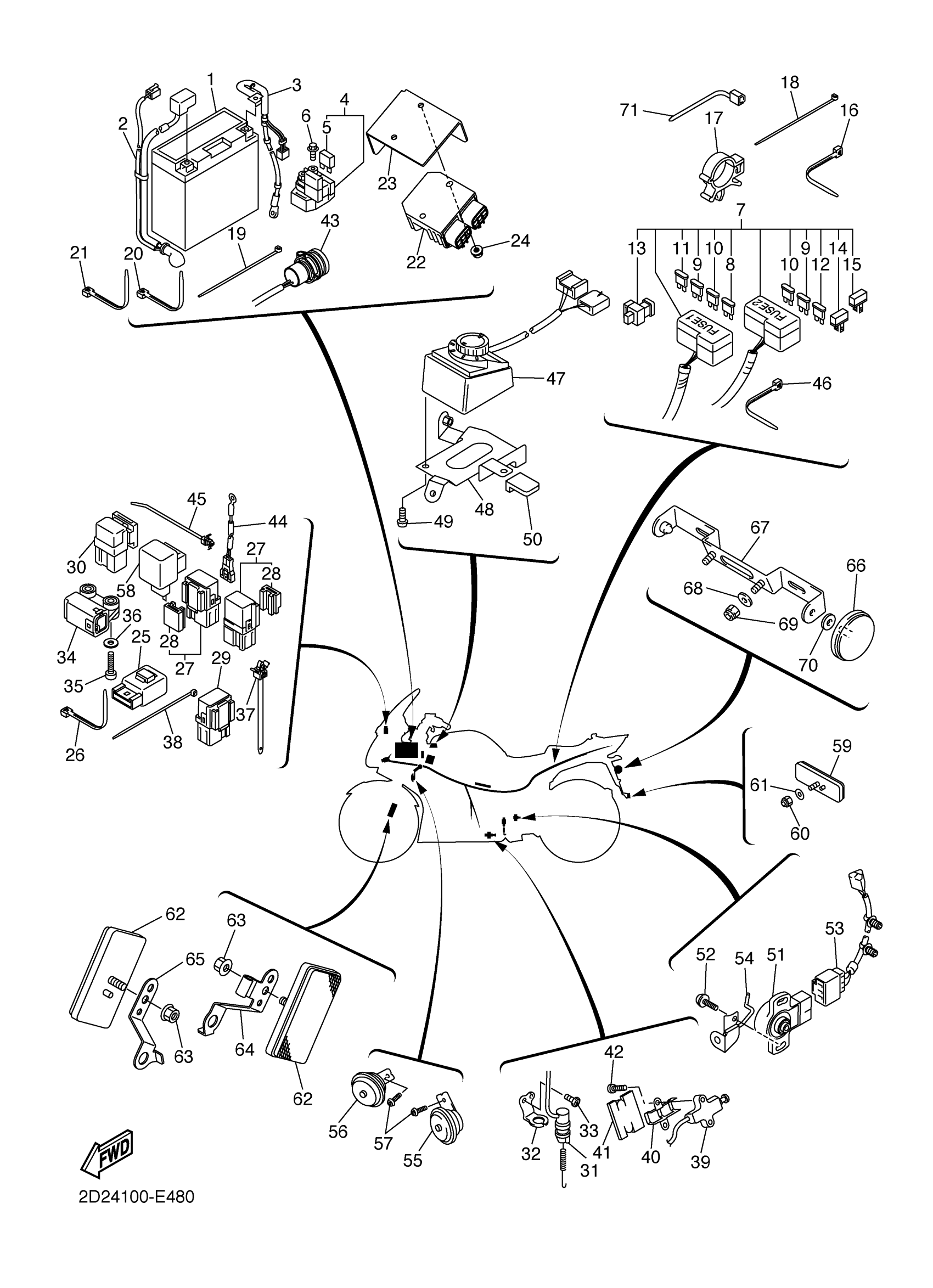

Yamaha FJR13AEVC (FJR13 CA Electric Shift) 2D25 2006 ELECTRICAL 2 Diagram

#

Description
Price

1

GT14B4 GS BATTERY - FA

GT1-4B400-00-00

Unavailable

2

WIRE, PLUS LEAD

3P6-82115-00-00

Unavailable

3

WIRE, MINUS LEAD

3P6-82116-00-00

Unavailable

4

STARTER RELAY ASSY (RC19-018)

4YR-81940-02-00

$140.99

5

FUSE (12V 30A)

1AE-82151-00-00

$7.99

6

BOLT, FLANGE

95022-06008-00

$8.49

7

WIRE HARNESS ASSY

2D2-82590-11-00

Unavailable

8

. FUSE (3A)

67F-82151-30-00

Unavailable

9

. FUSE (10A)

67F-82151-40-00

Unavailable

10

FUSE (15A)

67F-82151-50-00

Unavailable

11

FUSE (25A-BL)

5JJ-82151-70-00

$6.99

12

FUSE

5JJ-82151-60-00

$7.99

13

FUSE (50A)

5JW-82151-10-00

$16.49

14

DIODE ASSY

5VG-81980-00-00

Unavailable

15

DIODE ASSY

4WA-81980-00-00

$29.99

16

CLAMP

90465-10098-00

Unavailable

17

CLAMP

90464-16006-00

Unavailable

18

CLAMP

5Y9-12491-00-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

BAND

1UA-82591-00-00

Unavailable

21

CLAMP(MF1)

90464-15152-00

Unavailable

22

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

23

PLATE, RECTIFIER FITTING

3P6-81975-00-00

Unavailable

24

NUT, U FLANGE

95604-06200-00

Unavailable

25

RELAY ASSY

5VK-81950-33-00

Unavailable

26

CLAMP

90465-10098-00

Unavailable

27

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

28

HOLDER,RELAY

5EA-81952-00-00

Unavailable

29

RELAY ASSY

5JJ-81950-11-00

Unavailable

30

RELAY ASSY

5DM-81950-01-00

Unavailable

31

STOP SWITCH ASSY

3P6-82530-00-00

Unavailable

32

STAY, STOP SWITCH

5JW-2144G-00-00

Unavailable

33

SCREW, BIND

98902-05008-00

Unavailable

34

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

35

SCREW, BINDING

98907-04020-00

Unavailable

36

WASHER, PLATE (8M6)

90201-047A2-00

Unavailable

37

CLAMP(2TV)

90464-10112-00

Unavailable

38

BAND

1UA-82591-00-00

Unavailable

39

SWITCH, SIDE STAND

5PX-82566-51-00

Unavailable

40

PLATE

3P6-82388-00-00

Unavailable

41

PROTECTOR SET

99999-03816-00

Unavailable

42

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

43

TERMINAL COMP.

3P6-8254B-00-00

Unavailable

44

THERMISTOR ASSY

5RU-85700-00-00

Unavailable

45

CLAMP

90464-24001-00

Unavailable

46

CLAMP

90465-10098-00

Unavailable

47

CONTROL UNIT ASSY

2D2-85590-00-00

Unavailable

48

BRACKET

2D2-85542-00-00

Unavailable

49

SCREW,TAPPING (EU6)

97780-30110-00

Unavailable

50

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

51

SENSOR, ANGLE SET

99999-03795-00

Unavailable

52

SCREW, WITH WASHER

90159-05036-00

Unavailable

53

WIRE, LEAD

2D2-82583-00-00

Unavailable

54

CLAMP

5Y9-12491-00-00

Unavailable

55

HORN

5PS-83371-00-00

Unavailable

56

HORN

3P6-83371-00-00

Unavailable

57

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

58

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable

59

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

60

NUT, U

95617-05100-00

Unavailable

61

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

62

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

63

NUT, FLANGE

95702-05500-00

Unavailable

64

BRACKET, REFLECTOR 1

3P6-85112-00-00

Unavailable

65

BRACKET, REFLECTOR 2

3P6-85122-01-00

Unavailable

66

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

67

BRACKET, LICENSE

5JW-84751-00-00

Unavailable

68

WASHER, PLATE (8K2)

90201-06778-00

Unavailable

69

NUT, SELF-LOCKING

95617-06100-00

Unavailable

70

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

71

CLAMP(4FM)

90464-15195-00

Unavailable
