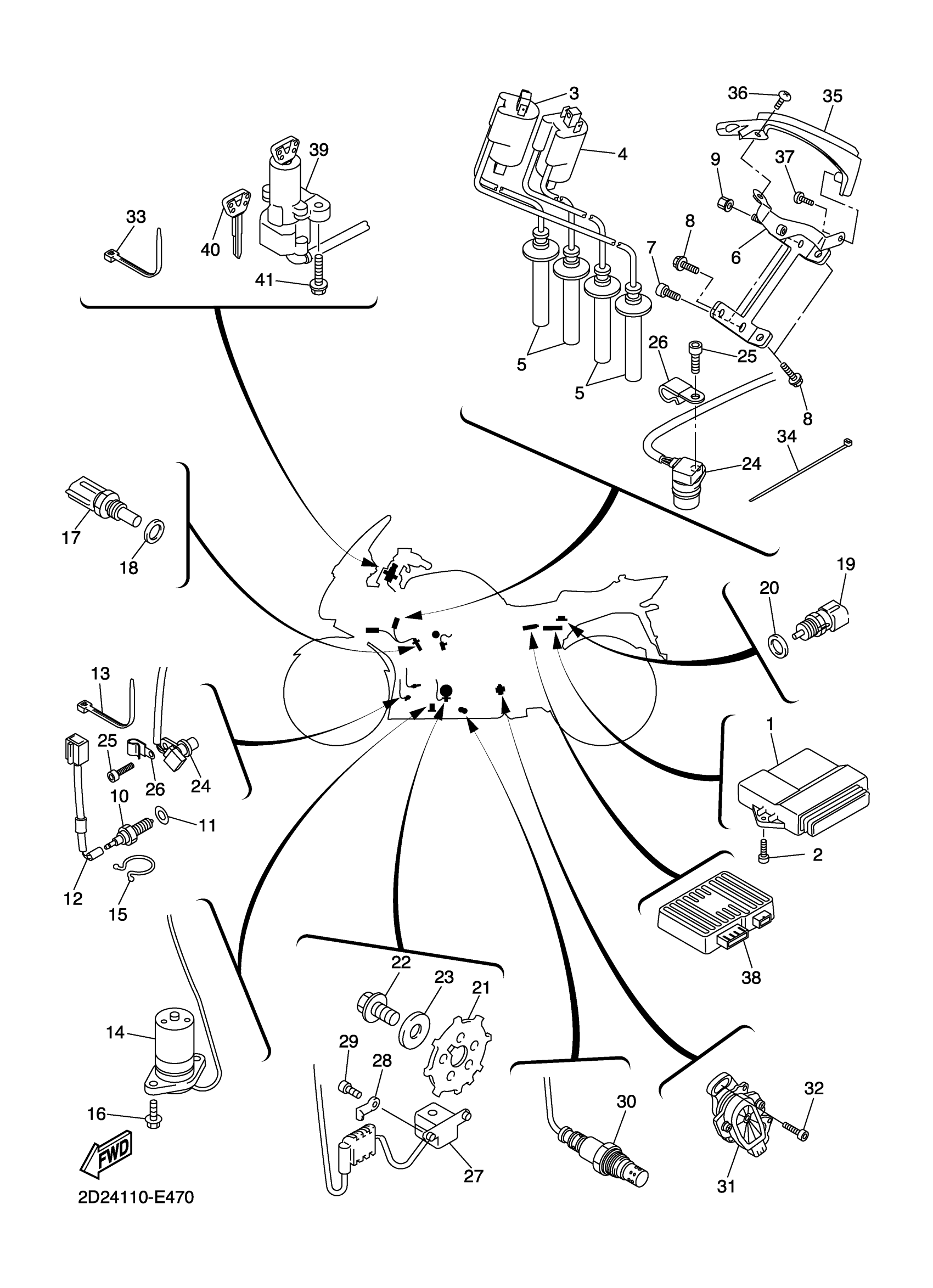

Yamaha FJR13AEVC (FJR13 CA Electric Shift) 2D25 2006 ELECTRICAL 1 Diagram

ENGINE CONTROL UNIT ASSY

3P6-8591A-23-00

Unavailable

SCREW, TAPPING

97702-60020-00

$0.27

IGNITION COIL ASSY

3P6-82310-00-00

Unavailable

IGNITION COIL ASSY

3P6-82320-00-00

Unavailable

PLUG CAP ASSY

5JW-82370-00-00

$149.99

BRACKET, IGNITION COIL

3P6-82316-00-00

$61.99

BOLT,SOCKET

91317-06012-00

$8.49

BOLT, FLANGE

95022-06016-00

$3.62

NUT (1AE)

90179-06500-00

$7.49

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

GASKET (1KH,1.0T)

90430-10148-00

$5.60

WIRE, LEAD

2D2-82541-00-00

Unavailable

CLAMP

90465-10098-00

Unavailable

OIL LEVEL GAUGE ASSY

3P6-85720-00-00

$149.99

CLAMP (3Y2)

90464-16039-00

$9.49

BOLT, FLANGE

95022-06016-00

$3.62

THERMOSENSOR ASSY

8CC-85790-01-00

Unavailable

WASHER, PLATE

90201-12790-00

Unavailable

THERMOSENSOR ASSY

5FL-85790-00-00

Unavailable

GASKET(2GH)

90430-12202-00

Unavailable

ROTOR

5JW-81673-10-00

Unavailable

BOLT, FLANGE

90105-10153-00

Unavailable

WASHER, PLATE(1WG)

90201-107K6-00

Unavailable

SENSOR, SPEED

5FL-83755-03-00

Unavailable

BOLT,SOCKET

91317-06016-00

Unavailable

CLAMP

90462-08039-00

Unavailable

PICK-UP ASSY

5JW-81670-00-00

Unavailable

CLAMP

90465-08055-00

Unavailable

BOLT(47X)

91312-05012-00

Unavailable

SENSOR

2D2-8592A-00-00

Unavailable

SENSOR, CAM POSITION 2

2D2-85897-00-00

Unavailable

SCREW

90149-05019-00

Unavailable

CLAMP

90465-10098-00

Unavailable

CLAMP

5Y9-12491-00-00

Unavailable

GUIDE, AIR 2

3P6-2137V-00-00

Unavailable

SCREW, BINDING (10V)

90154-05013-00

Unavailable

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

MOTOR CONTROL UNIT ASSY

2D2-86510-10-00

Unavailable

MAIN SWITCH STEERING LOCK

3P6-82501-22-00

Unavailable

BLANK KEY

4BH-82511-09-00

Unavailable

BOLT

90109-08196-00

Unavailable
