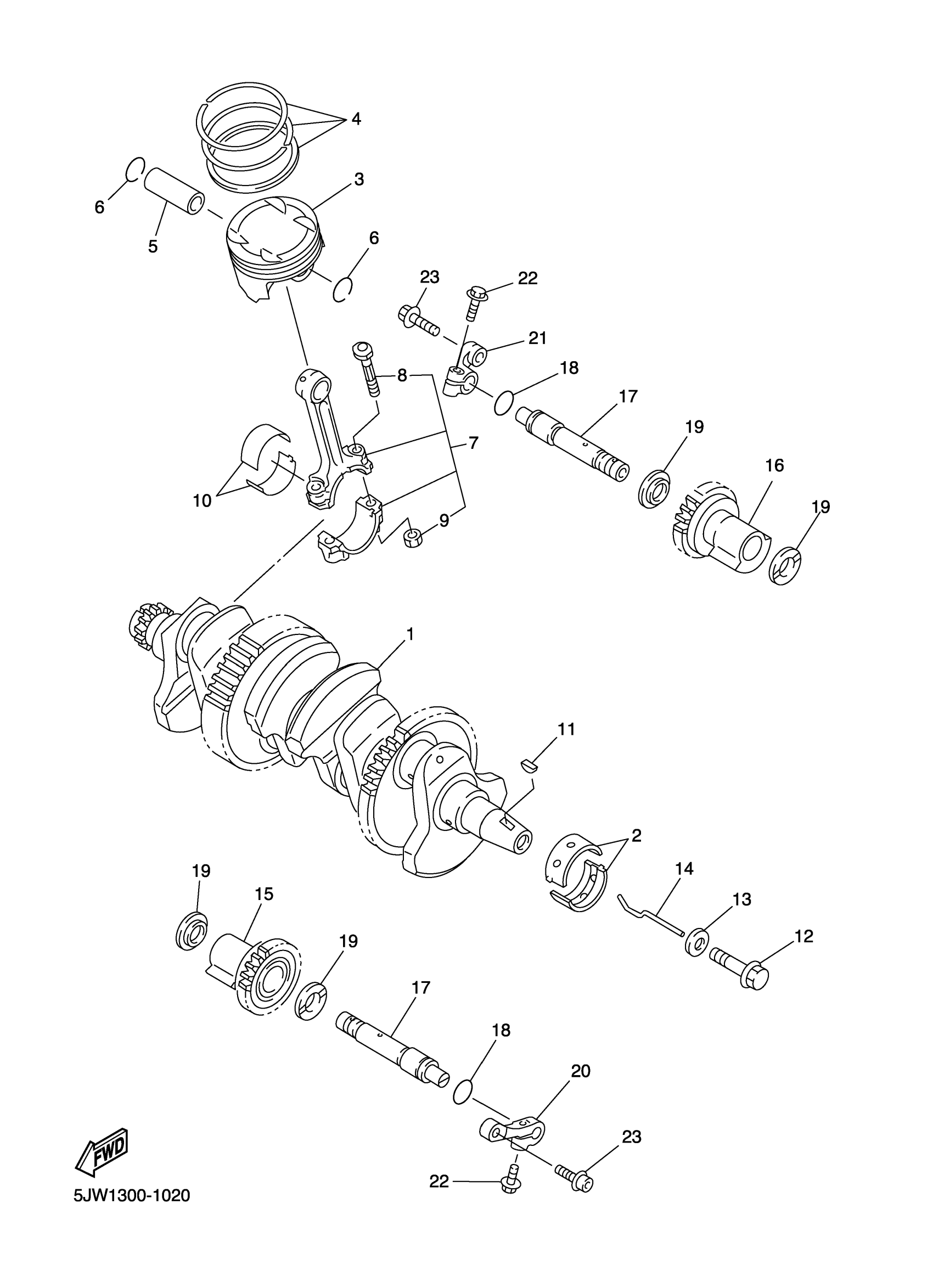

Yamaha FJR13AEVC (FJR13 CA Electric Shift) 2D25 2006 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

5JW-11411-00-00

$828.99

2

PLANE BEARING, CRANKSHAFT 1

3LD-11416-10-00

Unavailable

2

PLANE BEARING, CRANKSHAFT 1

3LD-11416-20-00

$27.99

2

PLANE BEARING, CRANKSHAFT 1

3LD-11416-30-00

$25.99

2

PLANE BEARING, CRANKSHAFT 1

3LD-11416-40-00

$27.99

2

PLANE BEARING, CRANKSHAFT 1

3LD-11416-50-00

$29.99

2

PLANE BEARING, CRANKSHAFT 1

3LD-11416-60-00

$29.99

2

PLANE BEARING, CRANKSHAFT 1

3LD-11416-70-00

$28.99

3

PISTON (STD)

5JW-11631-00-00

Unavailable

4

PISTON RING SET (STD)

5JW-11603-00-00

Unavailable

5

PIN, PISTON

5JW-11633-00-00

Unavailable

6

CIRCLIP (26H)

93450-19095-00

$2.66

7

CONNECTING ROD ASSY

5JW-11650-01-00

$188.99

8

BOLT, CONNECTING ROD

5JW-11654-00-00

$5.49

9

NUT (11H)

90179-08327-00

$9.49

10

PLANE BEARING, CONNECTING ROD

5JW-11656-00-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

5JW-11656-10-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

5JW-11656-20-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

5JW-11656-30-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

5JW-11656-40-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

5JW-11656-50-00

Unavailable

11

KEY, WOODRUFF (26H)

90280-05029-00

Unavailable

12

BOLT, WASHER BASED

90105-12005-00

Unavailable

13

WASHER (838)

90201-12191-00

Unavailable

14

SHAFT 1

5JW-11455-00-00

Unavailable

15

BALANCER ASSY

5JW-11500-00-00

Unavailable

16

BALANCER ASSY, 2

5JW-11510-00-00

Unavailable

17

SHAFT, BALANCER 1

5JW-11583-00-00

Unavailable

18

O-RING(1L9)

93210-16325-00

Unavailable

19

WASHER 1

5JW-11557-00-00

Unavailable

20

LEVER 1

5JW-13831-10-00

Unavailable

21

LEVER 2

5JW-13832-10-00

Unavailable

22

BOLT, FLANGE

95022-06020-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-08062-00

Unavailable
