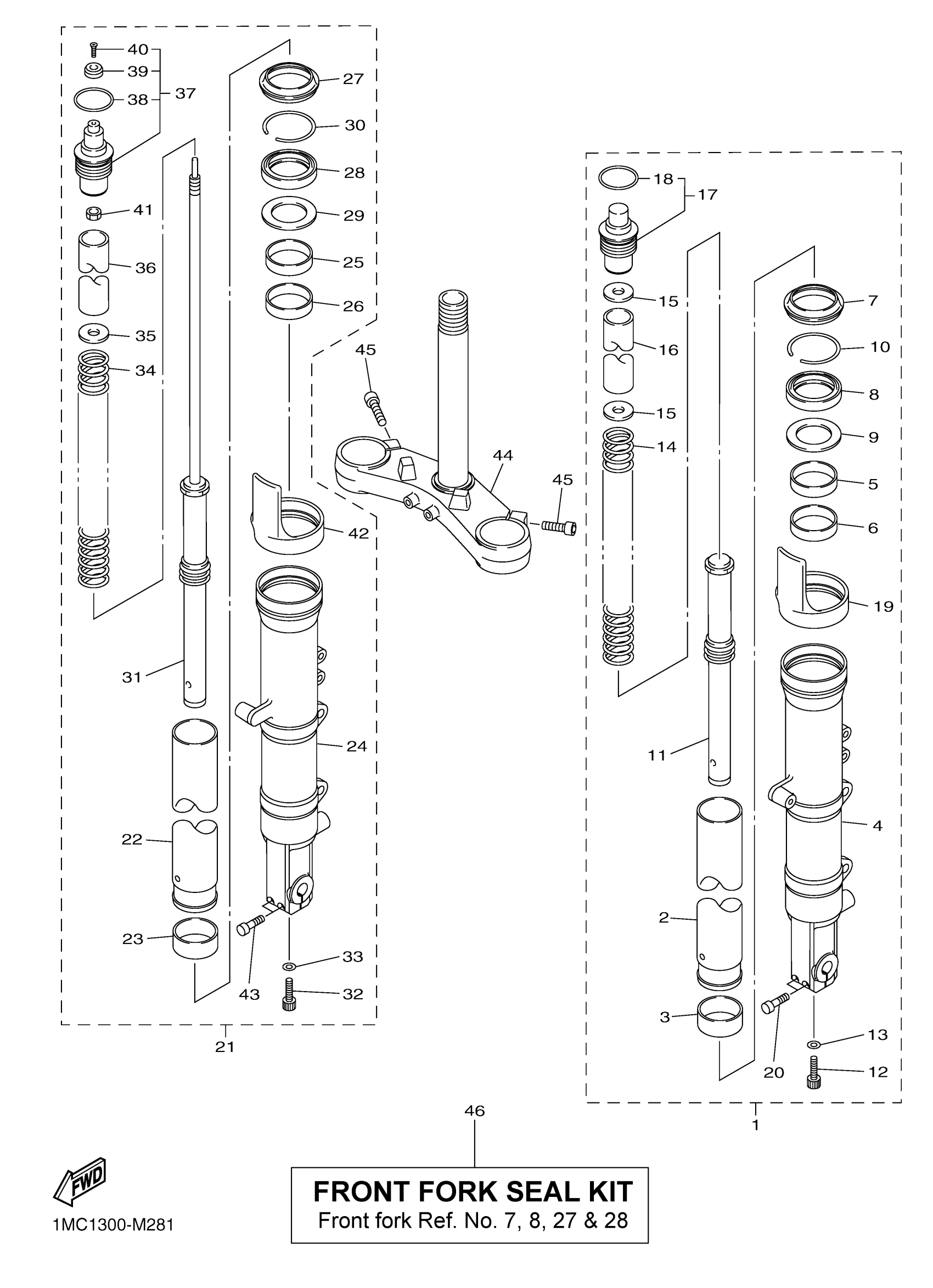

Yamaha FJR13AER (FJR1300A) 1MCC 2014 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L.H)
1MC-23102-00-00
Unavailable
2
INNER TUBE COMP.1
3P6-23110-11-00
Unavailable
4
TUBE, OUTER (LEFT)
1MC-23126-00-00
Unavailable
11
CYL. COMP.,2
1MC-2315K-00-00
Unavailable
14
SPRING, FRONT FORK
1MC-23141-00-00
Unavailable
16
SPACER
1MC-23118-00-00
Unavailable
17
BOLT, CAP
1MC-23111-00-00
Unavailable
18
O-RING(4SV)
93210-40N50-00
Unavailable
19
COVER
4SV-2331G-00-00
Unavailable
20
BOLT,SOCKET
91314-08045-00
Unavailable
21
FRONT FORK ASSY (R.H)
1MC-23103-00-00
Unavailable
22
INNER TUBE COMP.1
3P6-23110-11-00
Unavailable
24
OUTER TUBE COMP. (R.H)
3P6-23107-01-00
Unavailable
31
.. CYLINDER COMP, 3
1MC-2315L-00-00
Unavailable
34
SPRING, FRONT FORK
1MC-23141-00-00
Unavailable
35
WASHER, PLATE (856)
90201-10321-00
Unavailable
36
SPACER
1MC-23118-10-00
Unavailable
37
BOLT, CAP 2
1MC-2311J-00-00
Unavailable
38
O-RING(4SV)
93210-40N50-00
Unavailable
39
KNOB (TEN)
5JW-2319W-00-00
Unavailable
40
SCREW, OVAL HEAD
98680-03008-00
Unavailable
41
NUT(3BM)
95314-10600-00
Unavailable
42
COVER
4SV-2331G-00-00
Unavailable
43
BOLT,SOCKET
91314-08045-00
Unavailable
44
UNDER BRACKET COMP.
1MC-23340-10-00
Unavailable
45
BOLT, SOCKET
91317-08025-00
Unavailable
46
FORK SEAL KIT (TWO FORKS)
4SV-W003B-00-00
Unavailable
