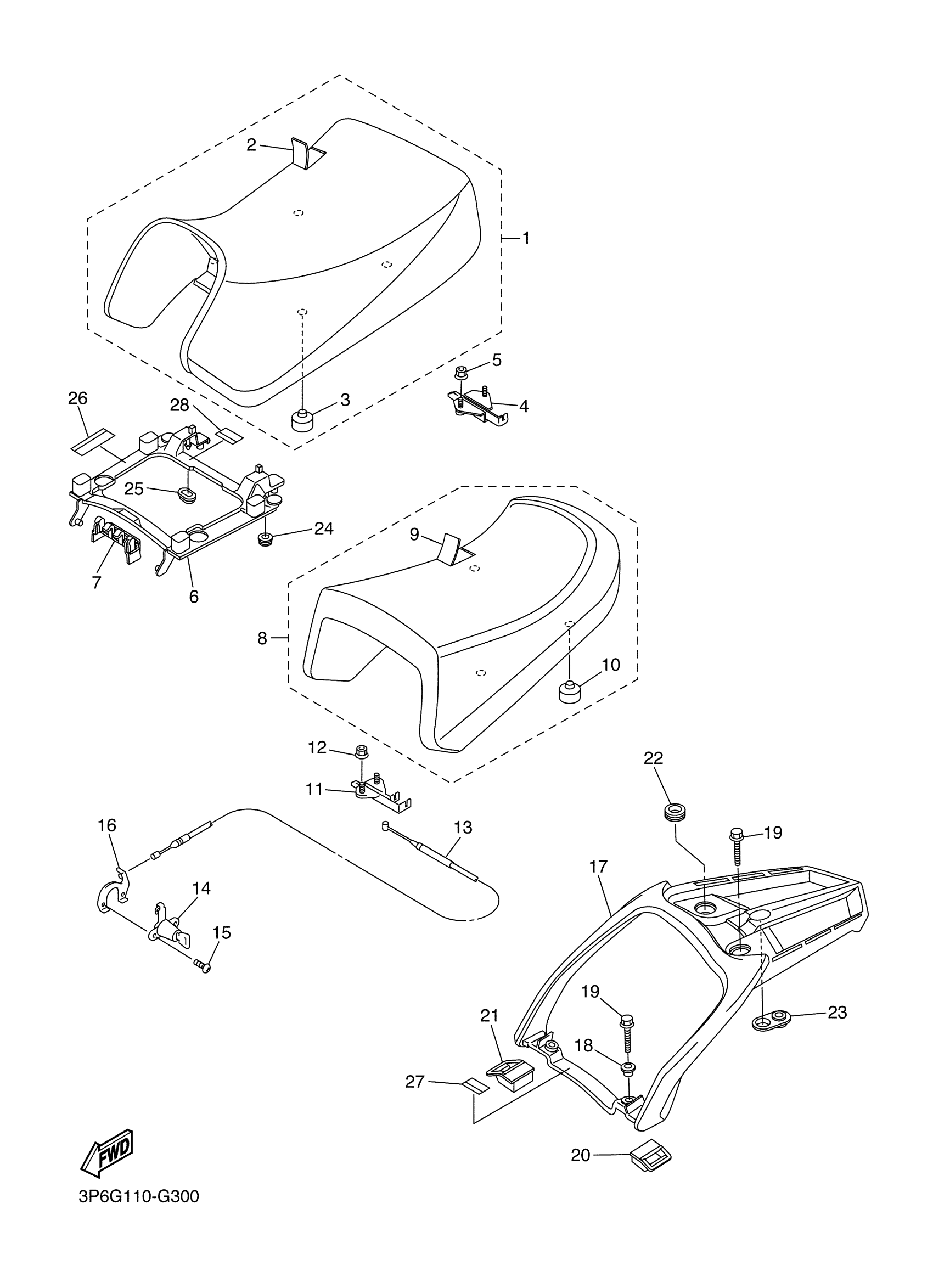

Yamaha FJR13ADG (FJR1300A) 1MC3 2013 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

1MC-24710-01-00

$283.23

2

SEAT COVER COMP.

1MC-2470F-01-00

Unavailable

3

PAD, SEAT

5JW-24741-00-00

$5.09

4

SEAT LOCK ASSY

3P6-24780-00-00

$30.74

5

NUT, FLANGE

95702-06500-00

$1.95

6

SEAT BRACKET ASSY

3P6-24708-00-00

$65.41

7

STOPPER

3P6-24768-00-00

Unavailable

8

TANDEM SEAT ASSY

1MC-24750-01-00

$232.89

9

SEAT COVER COMP. ,2

1MC-2470H-01-00

$134.50

10

PAD, SEAT

5JW-24741-00-00

$5.09

11

SEAT LOCK ASSY

4BP-24780-00-00

$90.53

12

NUT, FLANGE

95702-06500-00

$1.95

13

CABLE, SEAT LOCK

3P6-2478E-00-00

$15.76

14

SEAT LOCK ASSY

3CK-W2470-00-00

$69.49

15

SCREW(4HM)

90149-06308-00

$6.58

16

STAY, LOCK

3P6-2117K-01-00

Unavailable

17

HANDLE, SEAT

3P6-24773-01-P8

Unavailable

18

COLLAR

90387-09012-00

Unavailable

19

BOLT, FLANGE

95022-08030-00

Unavailable

20

DAMPER, SEAT

3P6-24723-10-00

Unavailable

21

DAMPER, SEAT

3P6-24724-10-00

Unavailable

22

GROMMET (1H3)

90480-28191-00

Unavailable

23

DAMPER, SEAT

3P6-24747-00-00

Unavailable

24

GROMMET(4FU)

90480-13567-00

Unavailable

25

GROMMET(4DN)

90480-01558-00

Unavailable

26

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

27

LABEL, CAUTION

3TB-24877-A1-00

Unavailable

28

LABEL, CAUTION

4BR-24877-A0-00

Unavailable
