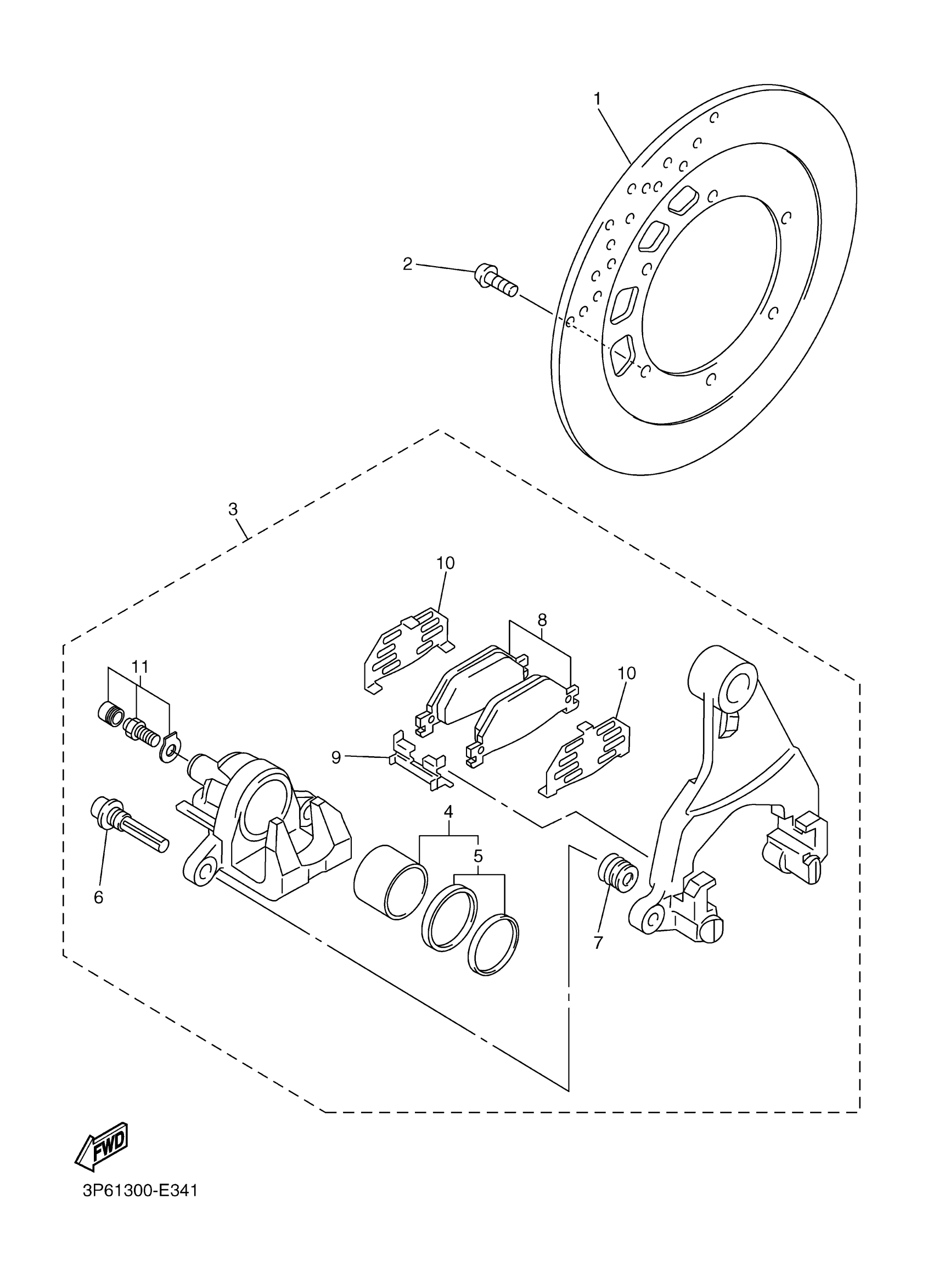

Yamaha FJR13ADG (FJR1300A) 1MC3 2013 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

3P6-2582W-00-00

$316.59

2

BOLT

90109-06254-00

Unavailable

3

CALIPER ASSY, REAR 2

3P6-2580W-01-00

$434.15

4

PISTON ASSY, CALIPER

1D7-25802-00-00

$45.90

5

CALIPER SEAL KIT

5JW-25803-00-00

$13.44

6

PIN, SLIDE

3P6-25914-00-00

$13.02

7

BOOT 2

4TT-25937-00-00

$13.61

8

BRAKE PAD KIT 2

3P6-W0046-50-00

$37.23

9

SUPPORT, PAD

5JW-25919-00-00

$13.40

10

SHIM, CALIPER

5JW-25827-00-00

$5.69

11

BLEED SCREW KIT

5RU-W0048-00-00

$12.79
