2012 Yamaha FJR1300A (FJR13ABL) Steering Diagram

← All diagrams

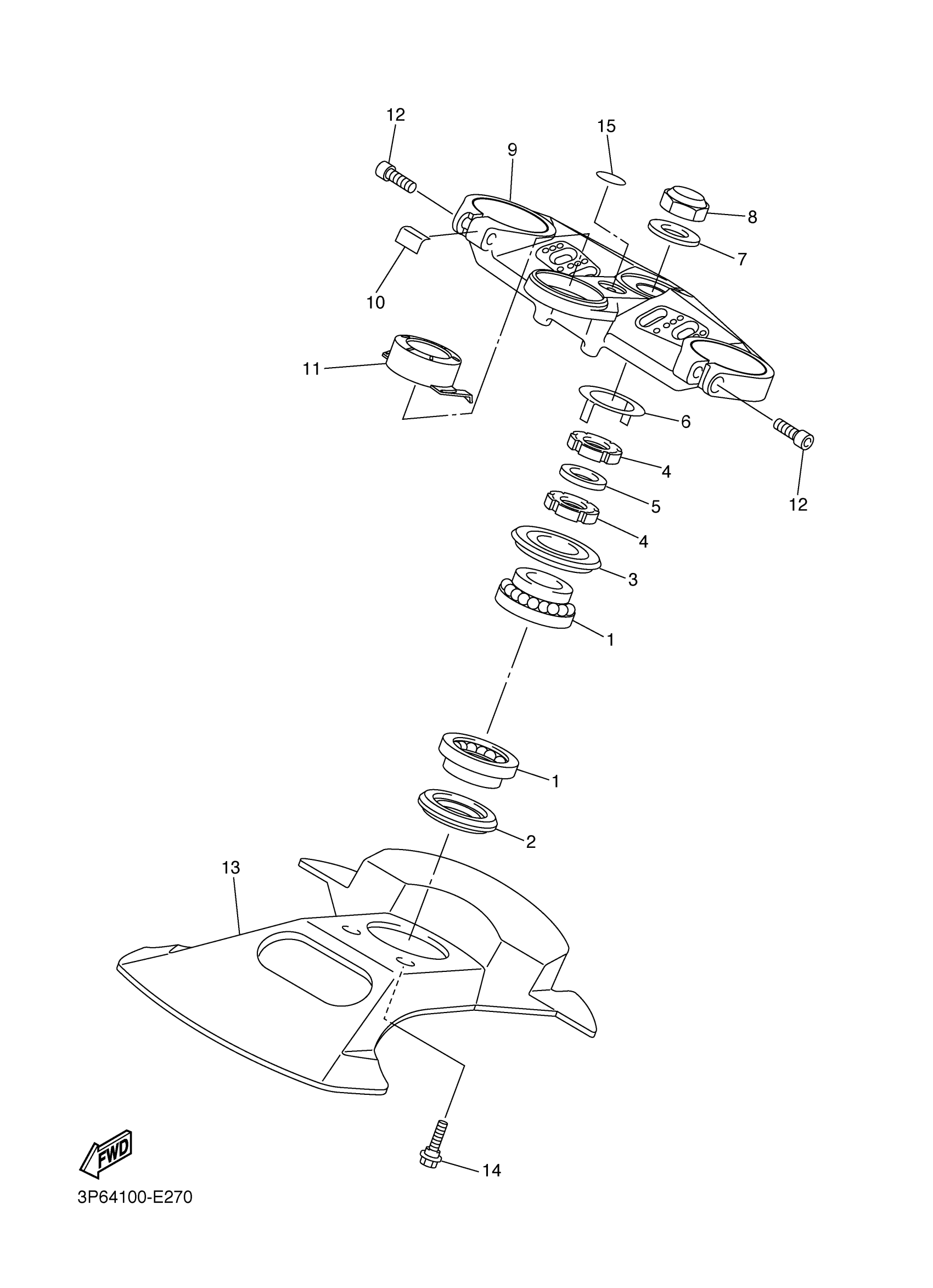

Find the part on the Steering diagram for your 2012 Yamaha FJR1300A (FJR13ABL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha FJR1300A (FJR13ABL) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(3FV)

93399-99932-00

1

$55.01

In stock

2

SEAL, STEERING

3FV-23462-00-00

1

$21.37

In stock

3

COVER, BALL RACE 1

4XV-23415-01-00

1

$20.55

In stock

4

NUT

90179-30691-00

1

$27.33

In stock

5

WASHER, PLATE

90202-30235-00

1

$6.06

In stock

6

WASHER, SPECIAL

4XV-23418-00-00

1

$15.38

In stock

7

WASHER, PLATE

90201-281U8-00

1

$8.49

In stock

8

NUT

90179-28002-00

—

$26.63

In stock

9

CROWN, HANDLE

3P6-23435-00-00

—
Out of stock

10

SEAL

5JW-23844-00-00

1

$7.51

In stock

11

COVER, MAIN SWITCH

3P6-82568-00-00

—

$33.37

In stock

12

BOLT,SOCKET

91314-08030-00

1

$2.29

In stock

13

COVER, STEERING

5VS-23818-00-00

—

$42.03

In stock

14

BOLT

90109-06172-00

1
Out of stock

15

EMBLEM

4XV-2341B-00-00

1

$23.12

In stock
