2012 Yamaha FJR1300A (FJR13ABL) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2012 Yamaha FJR1300A (FJR13ABL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

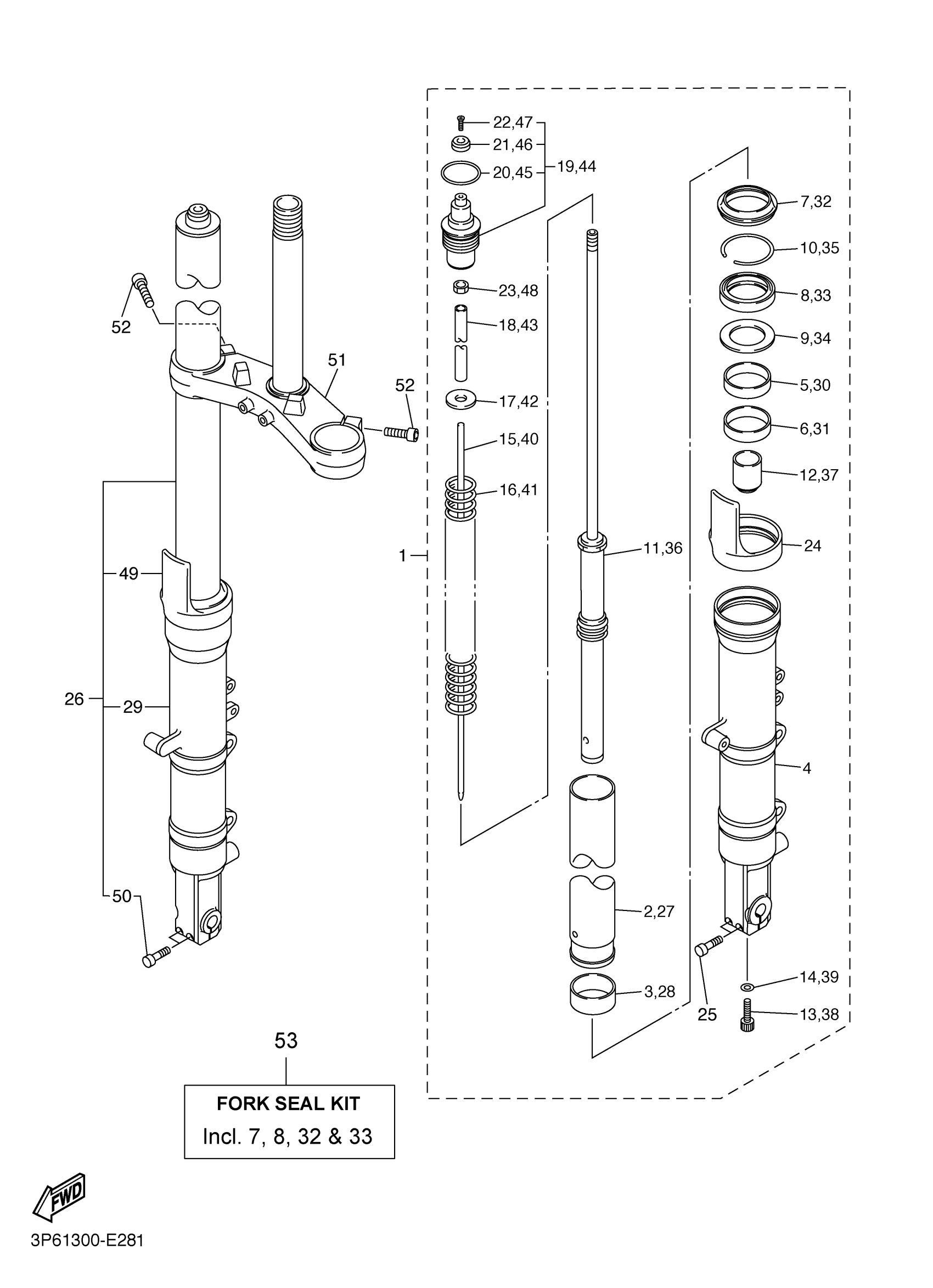

2012 Yamaha FJR1300A (FJR13ABL) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

3P6-23102-10-00

—
Out of stock

2

INNER TUBE COMP.1

3P6-23110-11-00

1
Out of stock

3

METAL, SLIDE 2

4SV-23135-10-00

1
Out of stock

4

OUTER TUBE COMP. (L.H)

3P6-23106-01-00

—
Out of stock

5

METAL, SLIDE 1

4SV-23125-10-00

1
Out of stock

6

METAL, SLIDE 2

3P6-23135-00-00

1

$17.98

In stock

7

SEAL, DUST

4SV-23144-00-00

1

$14.25

In stock

8

OIL SEAL

4SV-23145-01-00

1

$16.74

In stock

9

SEAT 1

4SV-23115-00-00

1
Out of stock

10

CLIP, OIL SEAL

4SV-23156-00-00

1
Out of stock

11

CYLINDER COMP., FRONT FORK

3P6-23170-00-00

—
Out of stock

12

SPINDLE, TAPER

5LV-23173-00-00

1
Out of stock

13

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

1
Out of stock

14

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

15

PLUNGER

5JW-2318Y-00-00

1
Out of stock

16

SPRING, FRONT FORK

3P6-23141-00-00

—
Out of stock

17

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

18

SPACER

5JW-23118-00-00

—
Out of stock

19

BOLT, CAP

5JW-23111-01-00

—
Out of stock

20

O-RING(4SV)

93210-40N50-00

—
Out of stock

21

KNOB (TEN)

5JW-2319W-00-00

—

$9.31

In stock

22

SCREW, OVAL HEAD

98680-03008-00

—

$0.29

In stock

23

NUT(3BM)

95314-10600-00

—

$1.74

In stock

24

COVER

4SV-2331G-00-00

—

$15.22

In stock

25

BOLT,SOCKET

91314-08045-00

—

$6.82

In stock

26

FRONT FORK ASSY (R.H)

3P6-23103-10-00

—
Out of stock

27

INNER TUBE COMP.1

3P6-23110-11-00

1
Out of stock

28

METAL, SLIDE 2

4SV-23135-10-00

1
Out of stock

29

OUTER TUBE COMP. (R.H)

3P6-23107-01-00

—
Out of stock

30

METAL, SLIDE 1

4SV-23125-10-00

1
Out of stock

31

METAL, SLIDE 2

3P6-23135-00-00

1

$17.98

In stock

32

SEAL, DUST

4SV-23144-00-00

1

$14.25

In stock

33

OIL SEAL

4SV-23145-01-00

1

$16.74

In stock

34

SEAT 1

4SV-23115-00-00

1
Out of stock

35

CLIP, OIL SEAL

4SV-23156-00-00

1
Out of stock

36

CYLINDER COMP., FRONT FORK

3P6-23170-00-00

—
Out of stock

37

SPINDLE, TAPER

5LV-23173-00-00

1
Out of stock

38

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

1
Out of stock

39

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

40

PLUNGER

5JW-2318Y-00-00

1
Out of stock

41

SPRING, FRONT FORK

3P6-23141-00-00

—
Out of stock

42

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

43

SPACER

5JW-23118-00-00

—
Out of stock

44

BOLT, CAP

5JW-23111-01-00

—
Out of stock

45

O-RING(4SV)

93210-40N50-00

—
Out of stock

46

KNOB (TEN)

5JW-2319W-00-00

—

$9.31

In stock

47

SCREW, OVAL HEAD

98680-03008-00

—

$0.29

In stock

48

NUT(3BM)

95314-10600-00

—

$1.74

In stock

49

COVER

4SV-2331G-00-00

—

$15.22

In stock

50

BOLT,SOCKET

91314-08045-00

—

$6.82

In stock

51

UNDER BRACKET COMP.

1MC-23340-10-00

—

$446.57

In stock

52

BOLT, SOCKET

91317-08025-00

—

$6.25

In stock

53

FORK SEAL KIT (TWO FORKS)

4SV-W003B-00-00

—

$30.09

In stock
