- FJR13ABL (FJR1300A) 1CYF 2012
STAND FOOTREST

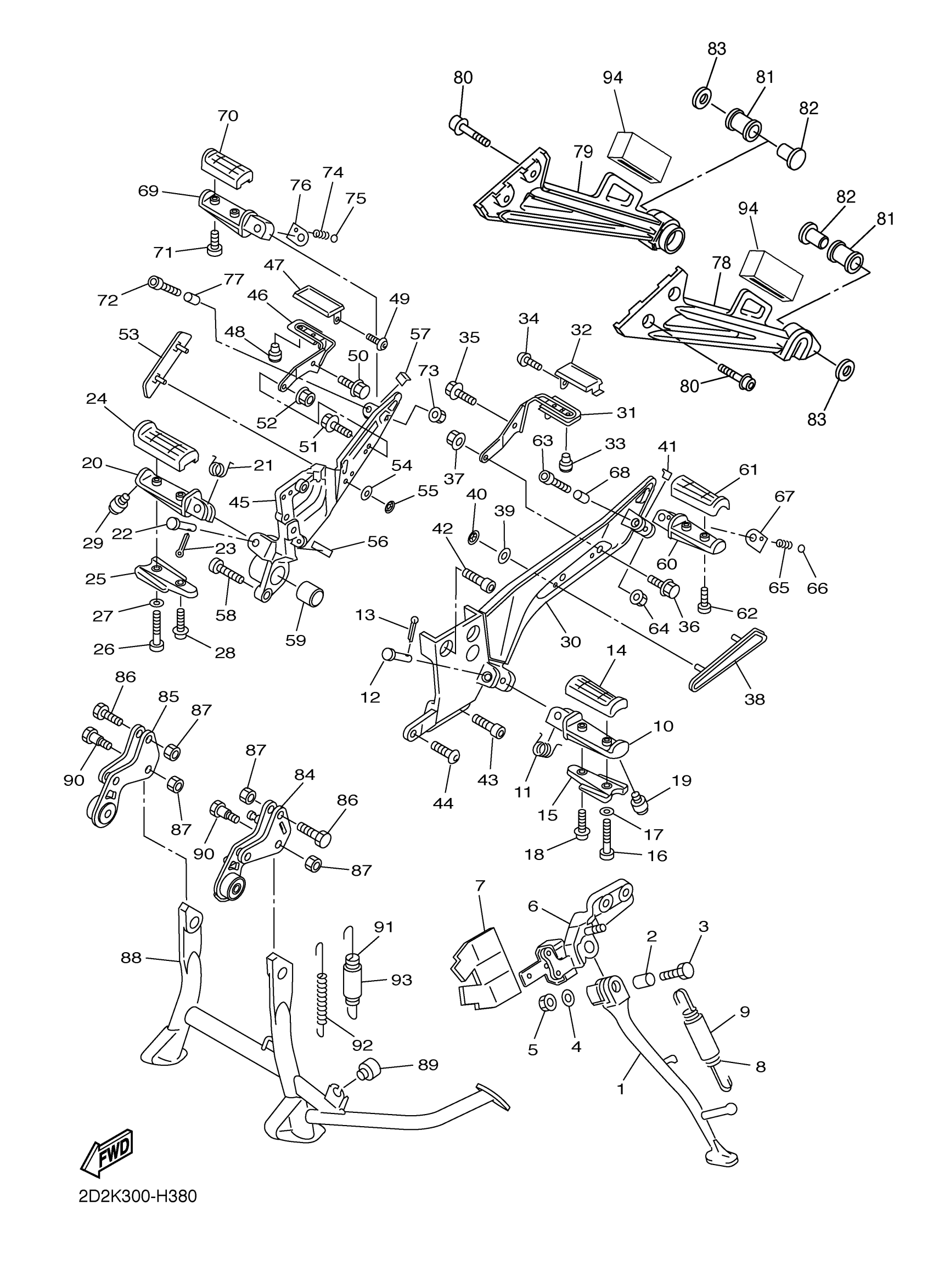

Yamaha FJR13ABL (FJR1300A) 1CYF 2012 STAND FOOTREST Diagram
#
7
PROTECTOR
3P6-27491-10-00
Unavailable
8
SPRING, TENSION
90506-20008-00
Unavailable
16
SCREW PAN HEAD W/W (4ST1E,4WC1
97607-05230-00
Unavailable
17
WASHER, PLAIN (646)
92990-05600-00
Unavailable
18
SCREW, PAN HEAD WITH WASHER
97607-05220-00
Unavailable
19
BOLT
3HE-27435-00-00
Unavailable
20
FOOTREST
4BH-27461-01-00
Unavailable
21
SPRING, TORSION
90508-184B0-00
Unavailable
26
SCREW PAN HEAD W/W (4ST1E,4WC1
97607-05230-00
Unavailable
27
WASHER, PLAIN (646)
92990-05600-00
Unavailable
28
SCREW, PAN HEAD WITH WASHER
97607-05220-00
Unavailable
29
BOLT
3HE-27435-00-00
Unavailable
30
BRACKET 2
3P6-27442-00-00
Unavailable
31
STOPPER
3P6-2743E-00-00
Unavailable
32
PLATE
3P6-27275-00-00
Unavailable
33
PLUG
90338-06007-00
Unavailable
34
BOLT, BUTTON HEAD
92017-05008-00
Unavailable
35
BOLT, FLANGE
95822-08014-00
Unavailable
36
BOLT, HEXAGON
97017-08016-00
Unavailable
37
NUT,FLANGE(J10)
95702-08500-00
Unavailable
38
COVER, FOOTREST
3P6-27413-00-00
Unavailable
39
WASHER, PLATE (463)
90202-05057-00
Unavailable
40
NUT 6504269100
90183-05003-00
Unavailable
41
SEAL
5JW-23844-00-00
Unavailable
42
BOLT (3LD)
90109-087F1-00
Unavailable
43
BOLT
90109-10058-00
Unavailable
44
SCREW
90149-10001-00
Unavailable
45
BRACKET 3
3P6-27443-00-00
Unavailable
46
STOPPER, 3
3P6-2743H-00-00
Unavailable
47
PLATE
3P6-27275-00-00
Unavailable
48
PLUG
90338-06007-00
Unavailable
49
BOLT, BUTTON HEAD
92017-05008-00
Unavailable
50
BOLT, FLANGE
95822-08014-00
Unavailable
51
BOLT, HEXAGON
97017-08016-00
Unavailable
52
NUT,FLANGE(J10)
95702-08500-00
Unavailable
53
COVER, FOOTREST
3P6-27423-00-00
Unavailable
54
WASHER, PLATE (463)
90202-05057-00
Unavailable
55
NUT 6504269100
90183-05003-00
Unavailable
56
LABEL
3TU-2178A-00-00
Unavailable
57
SEAL
5JW-23844-00-00
Unavailable
58
BOLT, HEXAGON SOCKET HEAD(3GM)
90110-08199-00
Unavailable
59
BUSH, SOLID(3VD)
90380-20213-00
Unavailable
60
FOOTREST, REAR 1
5LV-27431-01-00
Unavailable
62
SCREW, PAN HEAD
98507-05014-00
Unavailable
63
BOLT, SOCKET
91314-06040-00
Unavailable
64
NUT, U FLANGE
95604-06200-00
Unavailable
65
SPRING, COMPRESSION
90501-15001-00
Unavailable
66
BALL
93501-04011-00
Unavailable
67
WASHER, SPECIAL
5JJ-27437-01-00
Unavailable
68
COLLAR
90387-06014-00
Unavailable
69
FOOTREST, REAR 2
5LV-27441-01-00
Unavailable
71
SCREW, PAN HEAD
98507-05014-00
Unavailable
72
BOLT, SOCKET
91314-06040-00
Unavailable
73
NUT, U FLANGE
95604-06200-00
Unavailable
74
SPRING, COMPRESSION
90501-15001-00
Unavailable
75
BALL
93501-04011-00
Unavailable
76
WASHER, SPECIAL
5JJ-27437-01-00
Unavailable
77
COLLAR
90387-06014-00
Unavailable
78
STAY, MUFFLER 1
3P6-21445-00-00
Unavailable
79
STAY, MUFFLER 2
3P6-21446-00-00
Unavailable
80
BOLT, HEXAGON SOCKET HEAD(3GM)
90110-08199-00
Unavailable
81
DAMPER, FOOTREST 2
36Y-27424-01-00
Unavailable
82
COLLAR
90387-10048-00
Unavailable
83
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
84
BRACKET, MAIN STAND
5P5-27151-00-00
Unavailable
85
BRACKET, MAIN STAND 2
5P5-27152-00-00
Unavailable
86
BOLT
90101-10004-00
Unavailable
87
NUT, S/L FLANGE
95602-10200-00
Unavailable
88
STAND, MAIN
5P5-27111-00-00
Unavailable
89
STOPPER, MAIN STAND
1A0-27114-00-00
Unavailable
90
BOLT
90109-10029-00
Unavailable
91
SPRING, TENSION
90506-40001-00
Unavailable
92
SPRING, TENSION
90506-23001-00
Unavailable
93
HOSE (L0)
90445-170K9-00
Unavailable
94
BRACKET RUBBER SET, SIDE CASE
5VS-W9753-00-00
Unavailable
