2012 Yamaha FJR1300A (FJR13ABL) Intake Diagram

← All diagrams

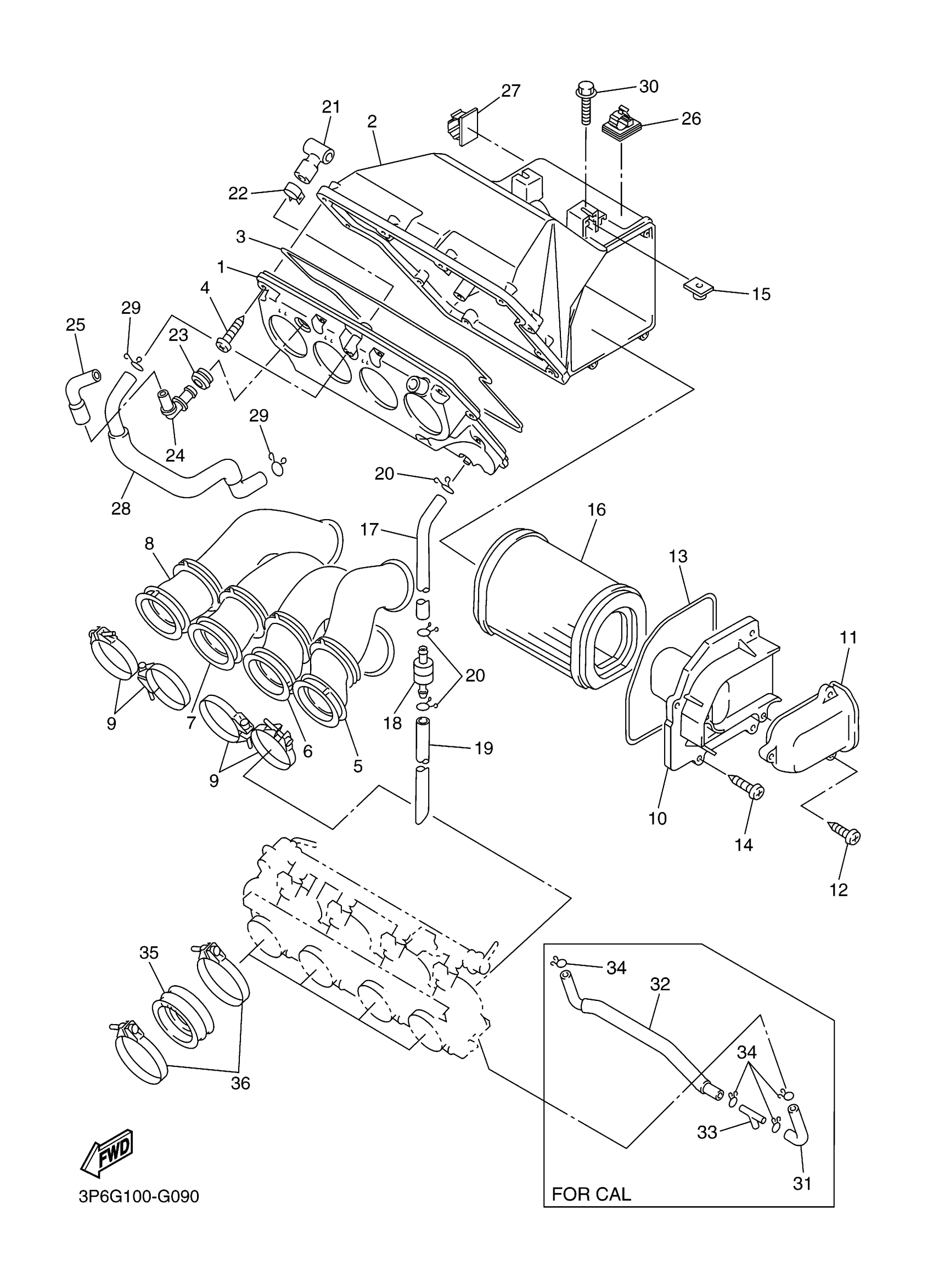

Find the part on the Intake diagram for your 2012 Yamaha FJR1300A (FJR13ABL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha FJR1300A (FJR13ABL) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

5JW-14411-10-00

—
Out of stock

2

CASE, AIR CLEANER 2

5JW-14421-10-00

—
Out of stock

3

SEAL

1VJ-14462-00-00

1

$16.08

In stock

4

1

$2.03

In stock

5

JOINT, AIR CLEANER 1

5JW-14453-00-00

—
Out of stock

6

JOINT, AIR CLEANER 2

5JW-14463-00-00

—
Out of stock

7

JOINT

5JW-14454-10-00

—
Out of stock

8

JOINT

5JW-14568-00-00

—
Out of stock

9

HOSE CLAMP ASSY

90450-57012-00

1
Out of stock

10

CAP, CLEANER CASE 1

5JW-14412-10-00

—

$26.97

In stock

11

DUCT

5JW-14437-00-00

—

$18.34

In stock

12

1

$2.03

In stock

13

SEAL

5JW-14452-00-00

1

$4.75

In stock

14

1

$2.03

In stock

15

PLATE

31A-14477-10-00

1
Out of stock

16

ELEMENT, AIR CLEANER

5JW-14451-00-00

—

$38.73

In stock

17

HOSE (L198)

90445-11293-00

—

$6.97

In stock

18

FILTER ASSY

4X7-2149Y-00-00

—

$17.23

In stock

19

HOSE (L280)

90445-11003-00

—
Out of stock

20

CLIP

90467-100A1-00

—
Out of stock

21

PIPE

5JW-14419-00-00

—

$9.82

In stock

22

CLIP

90468-08104-00

—

$2.72

In stock

23

GROMMET

31A-14435-01-00

—
Out of stock

24

PIPE

5JW-14149-00-00

—
Out of stock

25

PIPE, JOINT

5JW-14485-00-00

—
Out of stock

26

CLAMP(1NL)

90464-62085-00

—

$6.02

In stock

27

CLAMP

90464-20014-00

—

$3.91

In stock

28

PIPE, BREATHER 1

5JW-11166-10-00

—
Out of stock

29

CLIP (371)

90467-14015-00

—

$7.51

In stock

30

BOLT, FLANGE

95817-06020-00

—

$2.69

In stock

31

PIPE

5JW-14465-01-00

—
Out of stock

32

PIPE

5JW-14466-01-00

—
Out of stock

33

PIPE, JOINT

3H3-24376-00-00

—

$7.80

In stock

34

CLIP

90467-100A1-00

—
Out of stock

35

JOINT, CARBURETOR 3

5JW-13597-00-00

—
Out of stock

36

HOSE CLAMP ASSY

90450-63003-00

—

$18.92

In stock
