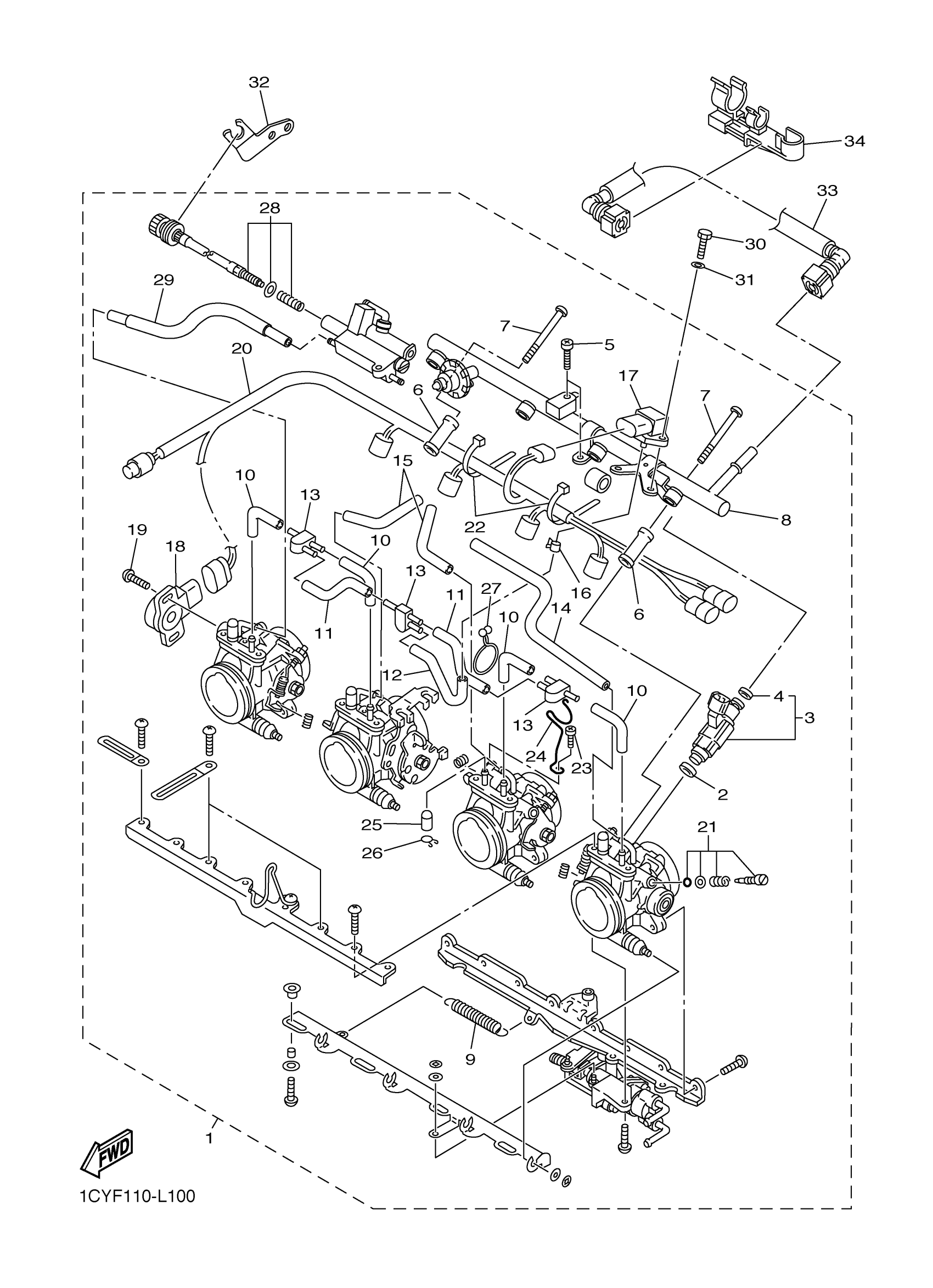

Find the part on the Intake 2 diagram for your 2012 Yamaha FJR1300A (FJR13ABL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha FJR1300A (FJR13ABL) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

3P6-13750-31-00

1
Out of stock

2

GASKET, MANIFOLD

8FP-13556-00-00

1
Out of stock

3

INJECTOR ASSY

5JW-13761-10-00

1
Out of stock

4

O-RING

5FL-14147-00-00

1
Out of stock

5

SCREW, PAN

98517-05012-00

1
Out of stock

6

PIPE

5JW-14419-00-00

1
Out of stock

7

SCREW, PAN HEAD

98502-06040-00

1
Out of stock

8

.. PIPE

3P6-13938-00-00

1
Out of stock

9

SPRING

5JW-14589-00-00

1
Out of stock

10

HOSE, VACUUM SENSING 4

6P2-13533-00-00

1
Out of stock

11

PIPE

5JW-14349-10-00

—
Out of stock

12

PIPE

5PW-14349-00-00

—
Out of stock

13

NIPPLE

3XV-14251-00-00

1
Out of stock

14

HOSE

5JW-14987-10-00

—
Out of stock

15

HOSE

5JW-14987-20-00

—
Out of stock

16

CLIP

5DM-14919-00-00

—
Out of stock

17

SENSOR, PRESSURE

5JW-82380-00-00

—
Out of stock

18

THROTTLE SENSOR ASSY

3P6-85885-01-00

1
Out of stock

19

SCREW

8CC-14216-10-00

—
Out of stock

20

WIRE, SUB LEAD

3P6-82509-00-00

—
Out of stock

21

AIR SCREW SET

5JW-14104-00-00

—
Out of stock

22

CLIP

4KM-14137-00-00

—
Out of stock

23

SCREW, PAN HEAD

98502-05006-00

—
Out of stock

24

CLIP, PIPE

3P6-14139-00-00

—
Out of stock

25

CAP

895-14169-00-00

—
Out of stock

26

CLIP, PIPE

8A7-14139-00-00

—
Out of stock

27

CLIP

5PW-14137-00-00

—
Out of stock

28

THROTTLE SCREW SET

5JW-14103-20-00

—
Out of stock

29

HOSE

5JW-14987-30-00

—
Out of stock

30

BOLT(6A1)

97095-05016-00

—
Out of stock

31

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

32

STAY

5JW-14413-10-00

—
Out of stock

33

PIPE, FUEL 1

5JW-13971-10-00

—
Out of stock

34

CLAMP

90464-16005-00

—
Out of stock
