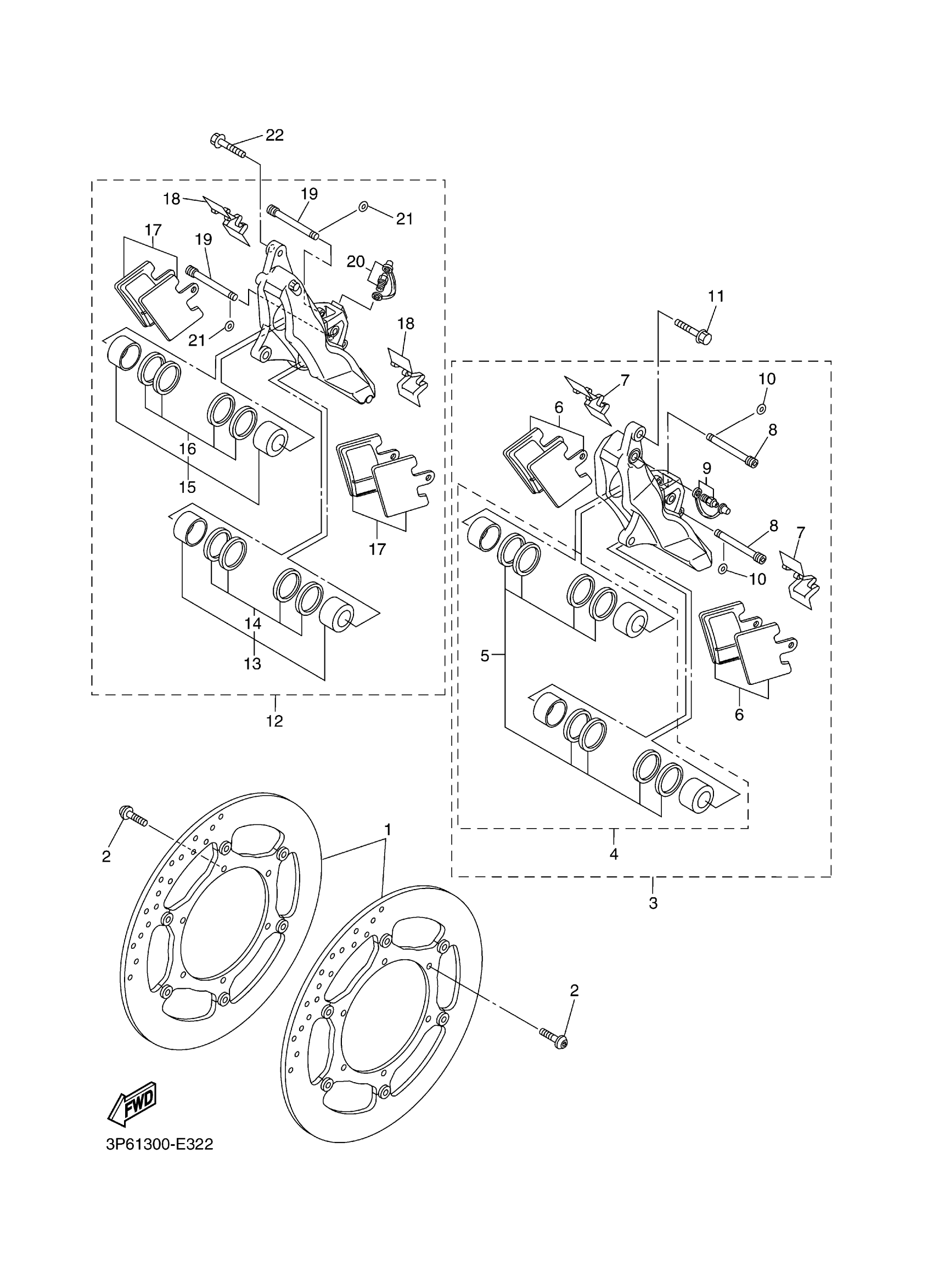

Yamaha FJR13ABL (FJR1300A) 1CYF 2012 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

3P6-2581T-01-00

$281.43

2

BOLT

90109-06254-00

$2.57

3

CALIPER ASSY (LEFT)

3P6-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

3P6-25802-01-00

$214.88

5

CALIPER SEAL KIT

3P6-W0047-00-00

Unavailable

6

BRAKE PAD KIT

3P6-W0045-00-00

$37.23

7

SUPPORT, PAD

3P6-25919-00-00

$50.82

8

PIN, PAD

3P6-25924-00-00

$53.19

9

BLEED SCREW KIT

8CR-W0048-00-00

$9.05

10

STOPPER

3P6-25925-00-00

Unavailable

11

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80

12

CALIPER ASSY (RIGHT)

3P6-2580U-00-00

Unavailable

13

PISTON ASSY, CALIPER

3P6-W0057-10-00

Unavailable

14

CALIPER SEAL KIT

3P6-W0047-10-00

$24.62

15

PISTON ASSY, CALIPER

3P6-W0057-20-00

Unavailable

16

CALIPER SEAL KIT

3P6-W0047-20-00

Unavailable

17

BRAKE PAD KIT

3P6-W0045-00-00

$37.23

18

SUPPORT, PAD

3P6-25919-00-00

$50.82

19

PIN, PAD

3P6-25924-00-00

$53.19

20

BLEED SCREW KIT

8CR-W0048-00-00

$9.05

21

STOPPER

3P6-25925-00-00

Unavailable

22

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80
