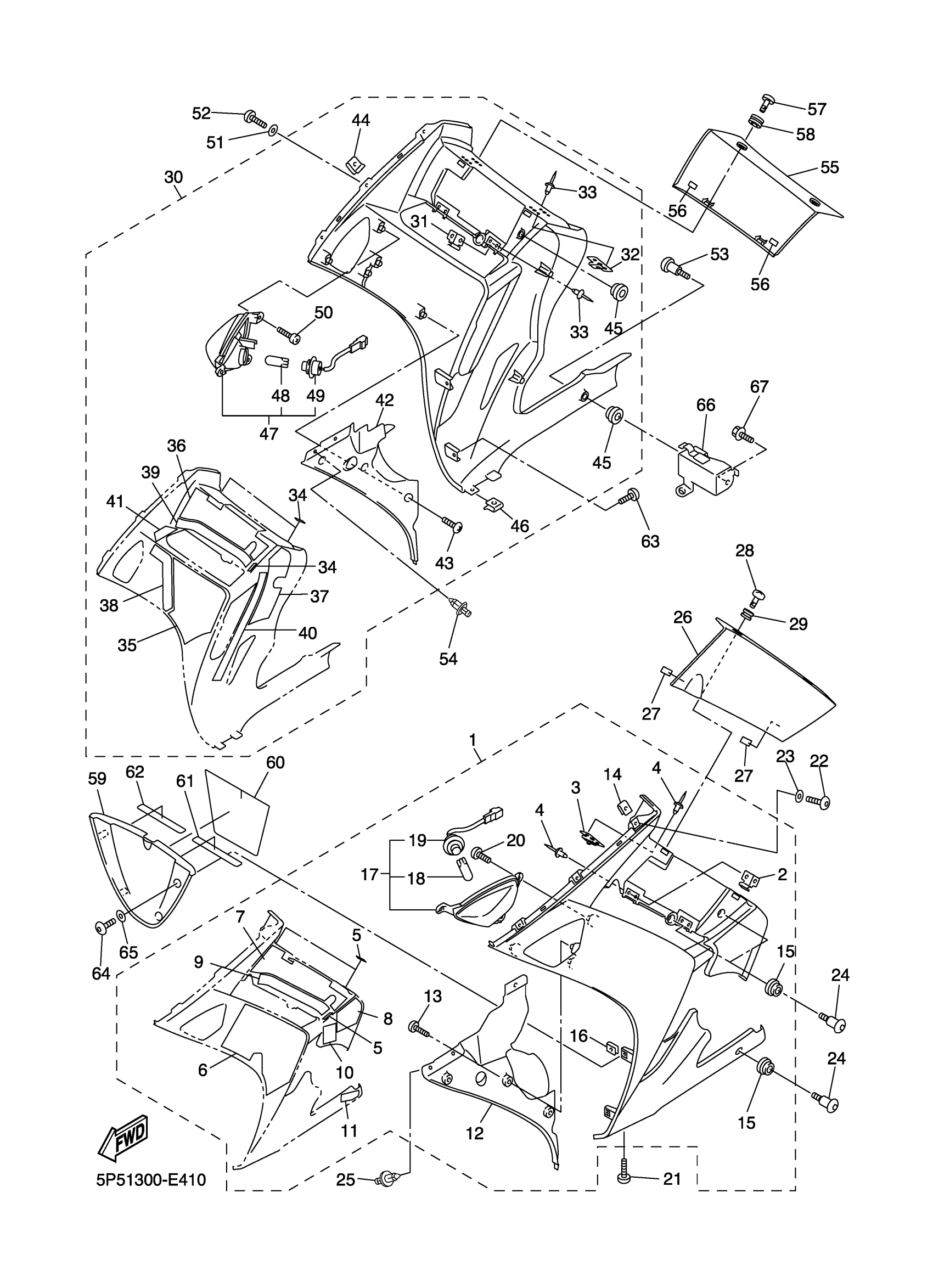

Yamaha FJR13ABL (FJR1300A) 1CYF 2012 COWLING 2 Diagram

#

Description
Price

1

BODY, FRONT LOWER 1

3P6-Y283J-H0-P0

Unavailable

2

HINGE

3P6-21796-00-00

Unavailable

3

PLATE, SPRING

3XV-2177L-00-00

$6.99

4

RIVET, BLIND (24R)

90267-32103-00

Unavailable

5

SEAL

3P6-28307-00-00

$2.34

6

. DAMPER 1

3P6-28415-00-00

Unavailable

7

DAMPER 2

3P6-28416-00-00

$6.99

8

DAMPER 4

3P6-28435-00-00

Unavailable

9

DAMPER 1

3P6-2834E-00-00

Unavailable

10

. DAMPER 5

3P6-2837J-00-00

Unavailable

11

DAMPER 5

5VY-2837J-00-00

$6.99

12

PANEL, INNER 1

3P6-2836K-00-00

Unavailable

13

SCREW, TAPPING

97702-50016-00

$2.39

14

NUT, SPRING

90183-051A0-00

$3.81

15

GROMMET

90480-13014-00

$8.49

16

NUT, SPRING

90183-051A0-00

$3.81

17

FRONT FLASHER LIGHT ASSY 1

3P6-83310-10-00

Unavailable

18

BULB, FLASHER

3P6-83331-10-00

Unavailable

19

SOCKET CORD ASSY

3P6-83509-10-00

Unavailable

20

SCREW, TAPPING

97702-50016-00

$2.39

21

BOLT

90111-05003-00

Unavailable

22

BOLT

90111-05003-00

Unavailable

23

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

24

BOLT

90109-06037-00

Unavailable

25

RIVET

90269-06008-00

Unavailable

26

VISOR, SIDE 1

3P6-2830C-01-P2

Unavailable

27

DAMPER 1

3P6-28217-00-00

Unavailable

28

HEAD

3XV-28386-00-00

Unavailable

29

GROMMET

90480-09001-00

Unavailable

30

BODY, FRONT LOWER 2

3P6-W283K-10-P0

Unavailable

31

HINGE

3P6-21796-00-00

Unavailable

32

PLATE, SPRING

3XV-2177L-00-00

$6.99

33

RIVET, BLIND (24R)

90267-32103-00

Unavailable

34

SEAL

3P6-28307-00-00

$2.34

35

DAMPER 3

3P6-28425-00-00

Unavailable

36

DAMPER 2

3P6-28416-10-00

Unavailable

37

DAMPER, 4

3P6-28455-00-00

Unavailable

38

DAMPER

3P6-28371-00-00

Unavailable

39

DAMPER

3P6-2834F-00-00

Unavailable

40

DAMPER 6

3P6-2837K-00-00

Unavailable

41

DAMPER 8

3P6-2847N-00-00

Unavailable

42

PANEL, INNER 2

3P6-2836L-00-00

Unavailable

43

SCREW, TAPPING

97702-50016-00

$2.39

44

NUT, SPRING

90183-051A0-00

$3.81

45

GROMMET

90480-13014-00

$8.49

46

NUT, SPRING

90183-051A0-00

$3.81

47

FRONT FLASHER LIGHT ASSY 2

3P6-83320-10-00

Unavailable

48

BULB, FLASHER

3P6-83331-10-00

Unavailable

49

SOCKET CORD ASSY

3P6-83509-00-00

Unavailable

50

SCREW, TAPPING

97702-50016-00

$2.39

51

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

52

BOLT

90111-05003-00

Unavailable

53

BOLT

90109-06037-00

Unavailable

54

RIVET

90269-06008-00

Unavailable

55

VISOR, SIDE 2

3P6-2830D-01-P2

Unavailable

56

DAMPER 1

3P6-28217-00-00

Unavailable

57

HEAD

3XV-28386-00-00

Unavailable

58

GROMMET

90480-09001-00

Unavailable

59

COVER, UNDER

3P6-28385-10-P6

Unavailable

60

SEAT

3P6-2848H-00-00

Unavailable

61

SEAT 2

3P6-2848K-00-00

Unavailable

62

SEAT 3

3P6-2848L-00-00

Unavailable

63

SCREW, TAPPING

97702-50016-00

$2.39

64

BOLT

90111-05003-00

Unavailable

65

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

66

BRACKET 3

5JW-2836F-00-00

Unavailable

67

BOLT, FLANGE

95817-06012-00

Unavailable
