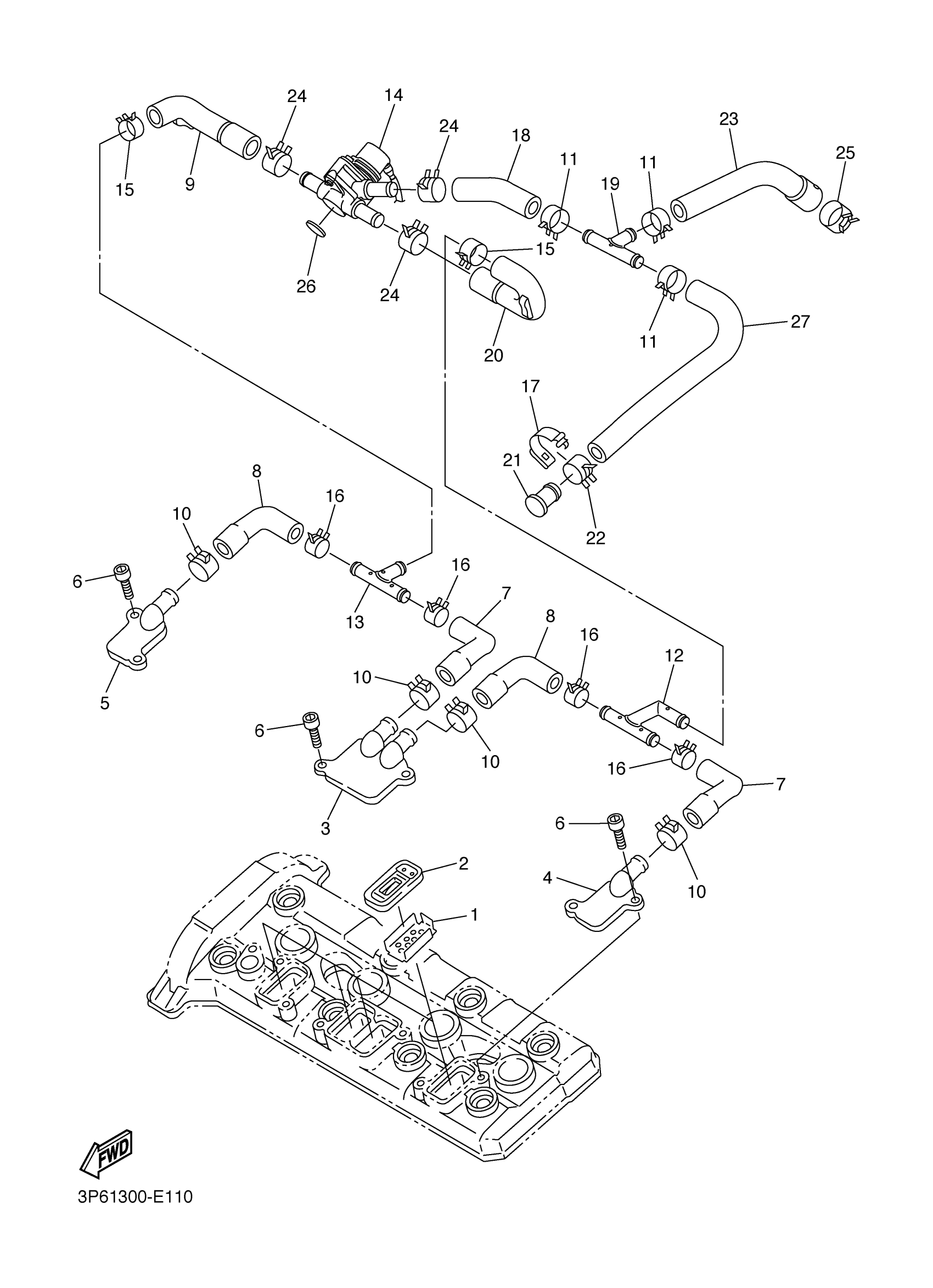

Yamaha FJR13ABL (FJR1300A) 1CYF 2012 AIR INDUCTION SYSTEM Diagram

#

Description
Price

1

PLATE

5JW-1482K-01-00

$5.49

2

REED VALVE ASS

5JW-14890-00-00

$65.99

3

CAP, CASE

5JW-14899-10-00

Unavailable

4

CAP, CASE

5JW-14858-00-00

Unavailable

5

CAP, CASE

5JW-14889-00-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

7

HOSE, BEND 1

5JW-14881-00-00

Unavailable

8

HOSE, BEND 2

5JW-14882-00-00

Unavailable

9

HOSE, BEND 3

3P6-14883-00-00

Unavailable

10

CLIP

90467-17003-00

$5.60

11

CLIP

90467-170A1-00

$2.28

12

PIPE 1

3P6-14871-00-00

Unavailable

13

PIPE 2

3P6-14872-00-00

Unavailable

14

AIR CUT VALVE ASSY

3P6-14840-00-00

Unavailable

15

CLIP

90468-08104-00

$3.93

16

CLIP

90467-160A1-00

Unavailable

17

COVER 1

5JW-14723-00-00

Unavailable

18

HOSE, BEND 4

3P6-14884-00-00

Unavailable

19

JOINT

3P6-14833-00-00

Unavailable

20

PIPE 3

3P6-14873-00-00

Unavailable

21

PLUG

5JW-14862-00-00

Unavailable

22

CLIP(3TB)

90467-17128-00

Unavailable

23

HOSE, BEND 5

3P6-14885-00-00

Unavailable

24

CLIP(3TB)

90467-17128-00

Unavailable

25

CLIP

90467-200A2-00

Unavailable

26

DAMPER

3P6-13593-00-00

Unavailable

27

HOSE, BEND 6

3P6-14886-00-00

Unavailable
