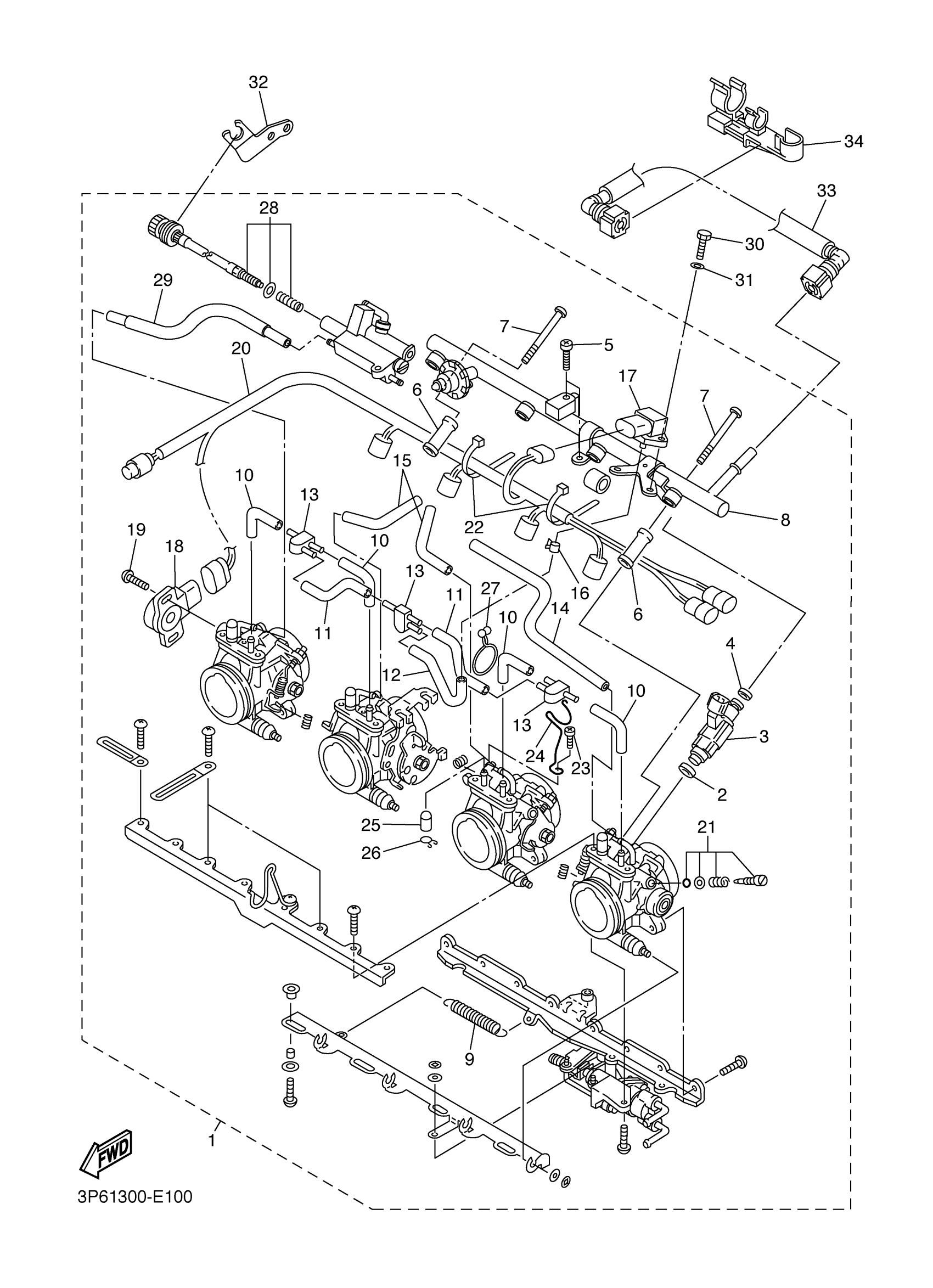

Yamaha FJR13AAS (FJR1300A) 1CYC 2011 INTAKE 2 Diagram
#
Description
Price
1
THROTTLE BODY ASSY
3P6-13750-31-00
Unavailable
8
.. PIPE
3P6-13938-00-00
Unavailable
10
HOSE, VACUUM SENSING 4
6P2-13533-00-00
Unavailable
11
PIPE
5JW-14349-10-00
Unavailable
12
PIPE
5PW-14349-00-00
Unavailable
14
HOSE
5JW-14987-10-00
Unavailable
15
HOSE
5JW-14987-20-00
Unavailable
16
CLIP
5DM-14919-00-00
Unavailable
17
SENSOR, PRESSURE
5JW-82380-00-00
Unavailable
18
THROTTLE SENSOR ASSY
3P6-85885-01-00
Unavailable
19
SCREW
8CC-14216-10-00
Unavailable
20
WIRE, SUB LEAD
3P6-82509-00-00
Unavailable
21
AIR SCREW SET
5JW-14104-00-00
Unavailable
22
CLIP
4KM-14137-00-00
Unavailable
23
SCREW, PAN HEAD
98502-05006-00
Unavailable
24
CLIP, PIPE
3P6-14139-00-00
Unavailable
25
CAP
895-14169-00-00
Unavailable
26
CLIP, PIPE
8A7-14139-00-00
Unavailable
27
CLIP
5PW-14137-00-00
Unavailable
28
THROTTLE SCREW SET
5JW-14103-20-00
Unavailable
29
HOSE
5JW-14987-30-00
Unavailable
30
BOLT(6A1)
97095-05016-00
Unavailable
31
WASHER, PLAIN (646)
92990-05600-00
Unavailable
32
STAY
5JW-14413-10-00
Unavailable
33
PIPE, FUEL 1
5JW-13971-10-00
Unavailable
34
CLAMP
90464-16005-00
Unavailable
