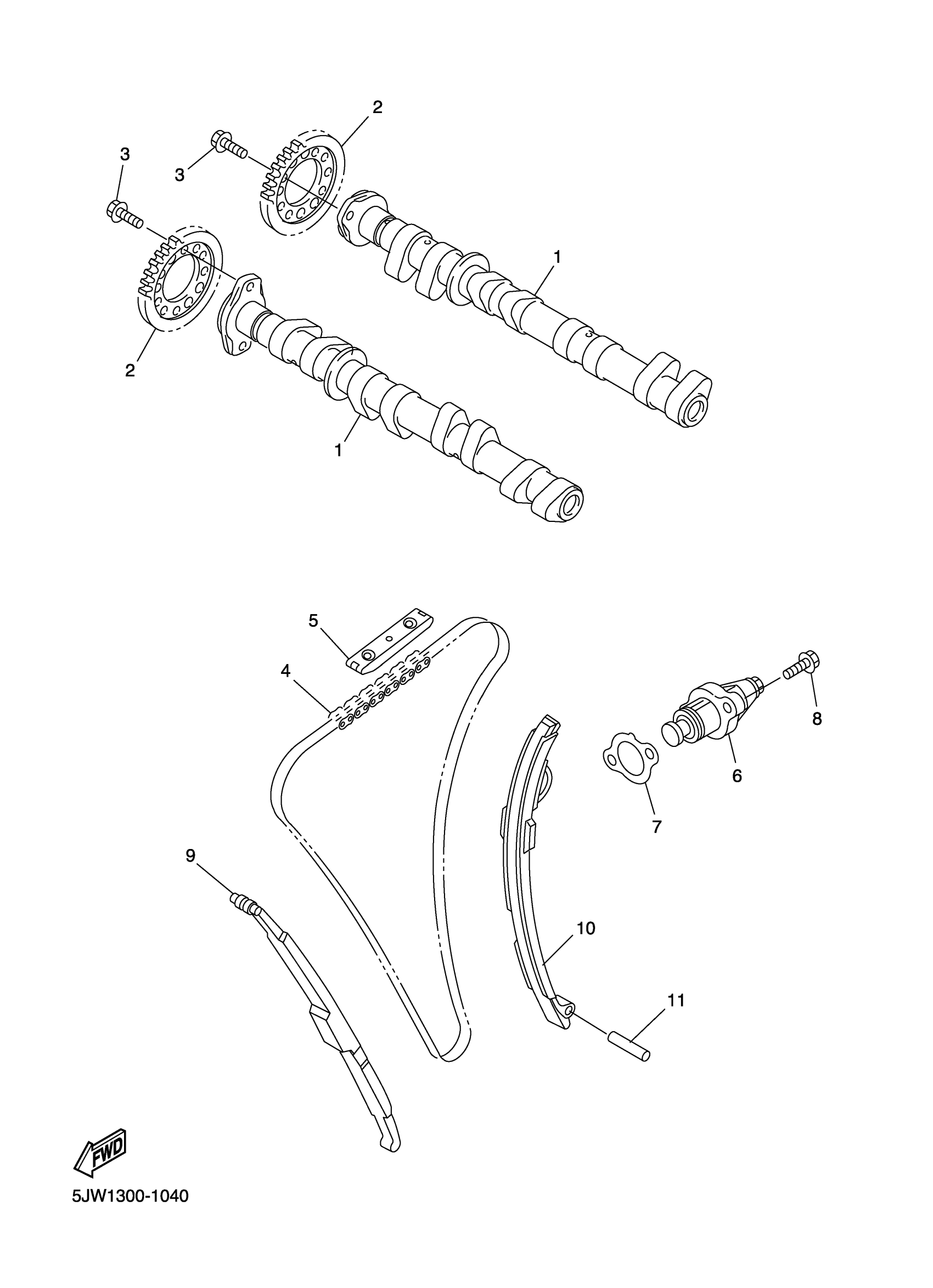

Yamaha FJR13AAS (FJR1300A) 1CYC 2011 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 2

1MC-12181-00-00

$245.35

2

SPROCKET, CAM CHAIN

5JW-12176-10-00

Unavailable

3

BOLT, FLANGE

90105-07004-00

$4.66

4

CHAIN

94591-73136-00

Unavailable

5

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

6

TENSIONER ASSY, CAM CHAIN

1MC-12210-01-00

Unavailable

7

GASKET, TENSIONER CASE

5JW-12213-00-00

$5.99

8

BOLT, FLANGE

95022-06025-00

$1.37

9

DAMPER, CHAIN 1

5JW-12251-01-00

Unavailable

10

DAMPER, CHAIN 2

5JW-12252-01-00

Unavailable

11

PIN, DOWEL

93607-44002-00

$3.95
