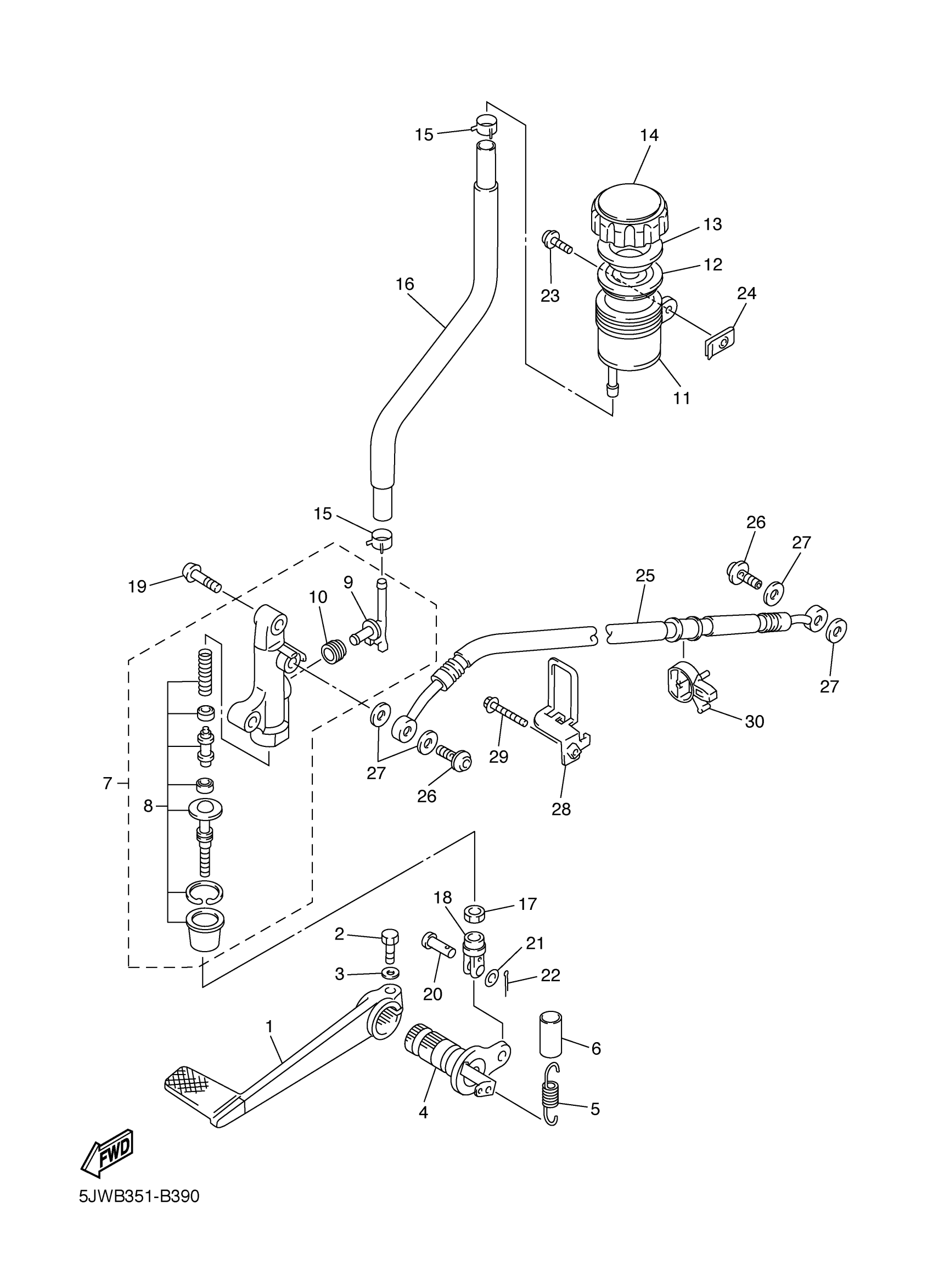

Yamaha FJR1300SC (FJR1300 CA) 5JWE 2004 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

5JW-27211-00-00

$144.99

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

SHAFT, BRAKE PEDAL

5JW-27212-01-00

Unavailable

5

SPRING, TENSION

90506-25001-00

$9.49

6

HOSE(3GM)

90446-17346-00

$5.60

7

RR. MASTER CYLINDER ASSY.

5VS-2583V-00-00

Unavailable

8

CYLINDER KIT, MASTER

5VS-W0042-50-00

Unavailable

9

JOINT

5VS-2582A-01-00

Unavailable

10

O-RING

4BP-2585F-01-00

Unavailable

11

TANK, RESERVOIR

5VS-25894-00-00

Unavailable

12

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

$20.99

13

BUSH,DIAPHRAGM

5SL-25855-00-00

$7.99

14

CAP, RESERVOIR

5SL-25852-00-00

$27.99

15

CLIP

90467-090A0-00

$7.49

16

HOSE, RESERVOIR

5VS-25895-00-00

Unavailable

17

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

18

JOINT

5SL-27222-00-00

Unavailable

19

BOLT, BUTTON

92017-08030-00

Unavailable

20

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

21

WASHER(6TA)

92907-06200-00

Unavailable

22

PIN, COTTER

91490-16020-00

Unavailable

23

SCREW, WITH WASHER (36X)

90159-06085-00

Unavailable

24

NUT, SPRING(4ES)

90183-06069-00

Unavailable

25

HOSE, BRAKE 5

5JW-2581K-11-00

Unavailable

26

BOLT, UNION

90401-10172-00

Unavailable

27

WASHER, PLATE(481)

90201-10118-00

Unavailable

28

HOLDER, BRAKE HOSE 2

5JW-25876-00-00

Unavailable

29

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

30

CLAMP(4NX)

90464-23239-00

Unavailable
