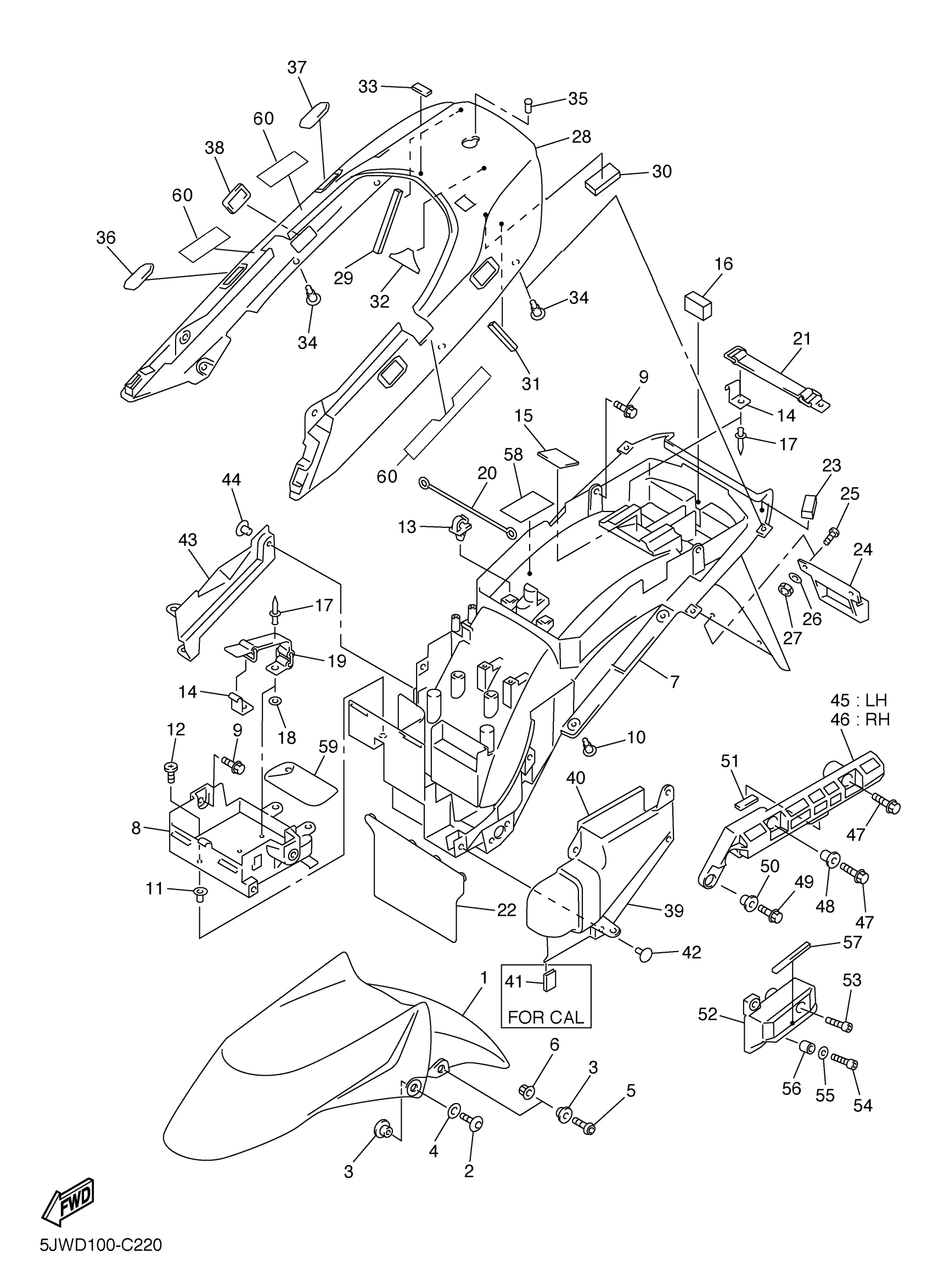

Yamaha FJR1300SC (FJR1300 CA) 5JWE 2004 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5JW-21511-10-P3

Unavailable

2

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

3

COLLAR

90387-07006-00

Unavailable

4

WASHER, PLATE

90202-06170-00

Unavailable

5

BOLT, BUTTON

92014-06025-00

Unavailable

6

NUT (21W)

90179-06403-00

Unavailable

7

FENDER, REAR

5JW-21611-01-00

Unavailable

8

BOX

5JW-2160E-00-00

Unavailable

9

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

10

RIVET

90269-06081-00

$7.49

11

PLUG(4BP)

90338-08226-00

$2.17

12

SCREW, TRUSS TAP.

97707-60016-00

$1.70

13

CLAMP

90464-07259-00

$3.23

14

HOOK

4HM-2162A-00-00

$3.80

15

PATCH 5

5JW-2164K-00-00

$2.13

16

PATCH 4

5VS-21667-00-00

Unavailable

17

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

18

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

19

BAND, TOOL

5JW-21376-00-00

Unavailable

20

BAND, TOOL

256-21376-00-00

Unavailable

21

BAND

5JW-21647-01-00

Unavailable

22

FLAP

5JW-21621-10-00

Unavailable

23

PATCH 2

5JW-21656-00-00

Unavailable

24

BRACKET, REFLECTOR 1

5JW-85132-00-00

Unavailable

25

SCREW(3HE)

90149-04278-00

Unavailable

26

WASHER, PLATE (8M6)

90201-047A2-00

Unavailable

27

NUT, U (7LY)

95617-04100-00

Unavailable

28

COVER, REAR FENDER (BLUISH SILVER 4)

5JW-21651-00-P3

Unavailable

29

DAMPER

5VS-21649-00-00

Unavailable

30

DAMPER 1

4PT-28217-00-00

Unavailable

31

PACH 1

5JW-21655-00-00

Unavailable

32

PATCH

5JW-21657-00-00

Unavailable

33

LABEL

3TU-2178A-00-00

Unavailable

34

RIVET

90269-06081-00

$7.49

35

RIVET

90269-03002-00

Unavailable

36

COVER, REAR FENDER 2 (BLUISH SILVER 4)

5JW-2163E-00-P3

Unavailable

37

COVER, REAR FENDER 2 (BLUISH SILVER 4)

5JW-2163E-10-P3

Unavailable

38

COVER, REAR FENDER 3 (BLUISH SILVER 4)

5JW-2163F-00-P3

Unavailable

39

COVER, REAR FENDER 1

5JW-2163A-00-00

Unavailable

40

DAMPER 2

5VS-21639-00-00

Unavailable

41

BRACKET, DAMPER

3TT-21121-00-00

Unavailable

42

RIVET

90269-06081-00

$7.49

43

COVER, REAR FENDER 1

5JW-2163A-11-00

Unavailable

44

RIVET

90269-06081-00

$7.49

45

STAY 1

5JW-2164F-00-00

Unavailable

46

STAY 2

5JW-2164G-00-00

Unavailable

47

BOLT, FLANGE

95817-06025-00

Unavailable

48

COLLAR(47X)

90387-060M9-00

Unavailable

49

BOLT (3LD)

90109-087F1-00

Unavailable

50

COLLAR

90387-08016-00

Unavailable

51

PROTECTOR

5JW-21652-00-00

Unavailable

52

HANDLE, STANDING

5JW-21165-00-00

Unavailable

53

BOLT,SOCKET

91317-06025-00

Unavailable

54

BOLT, HEXAGON SOCKET HEAD

90110-06331-00

Unavailable

55

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

56

COLLAR

90387-06113-00

Unavailable

57

DAMPER

5JW-2174X-00-00

Unavailable

58

PLATE, EPA 2 (CALIFORNIA)

5JW-2179R-10-00

Unavailable

58

PLATE, EPA 1 (NON CALIFORNIA)

5JW-2179V-10-00

Unavailable

59

TOOL KIT

5JW-28100-01-00

Unavailable

60

FJR PROTECT STICKER SET

5JW-W9390-00-00

Unavailable
