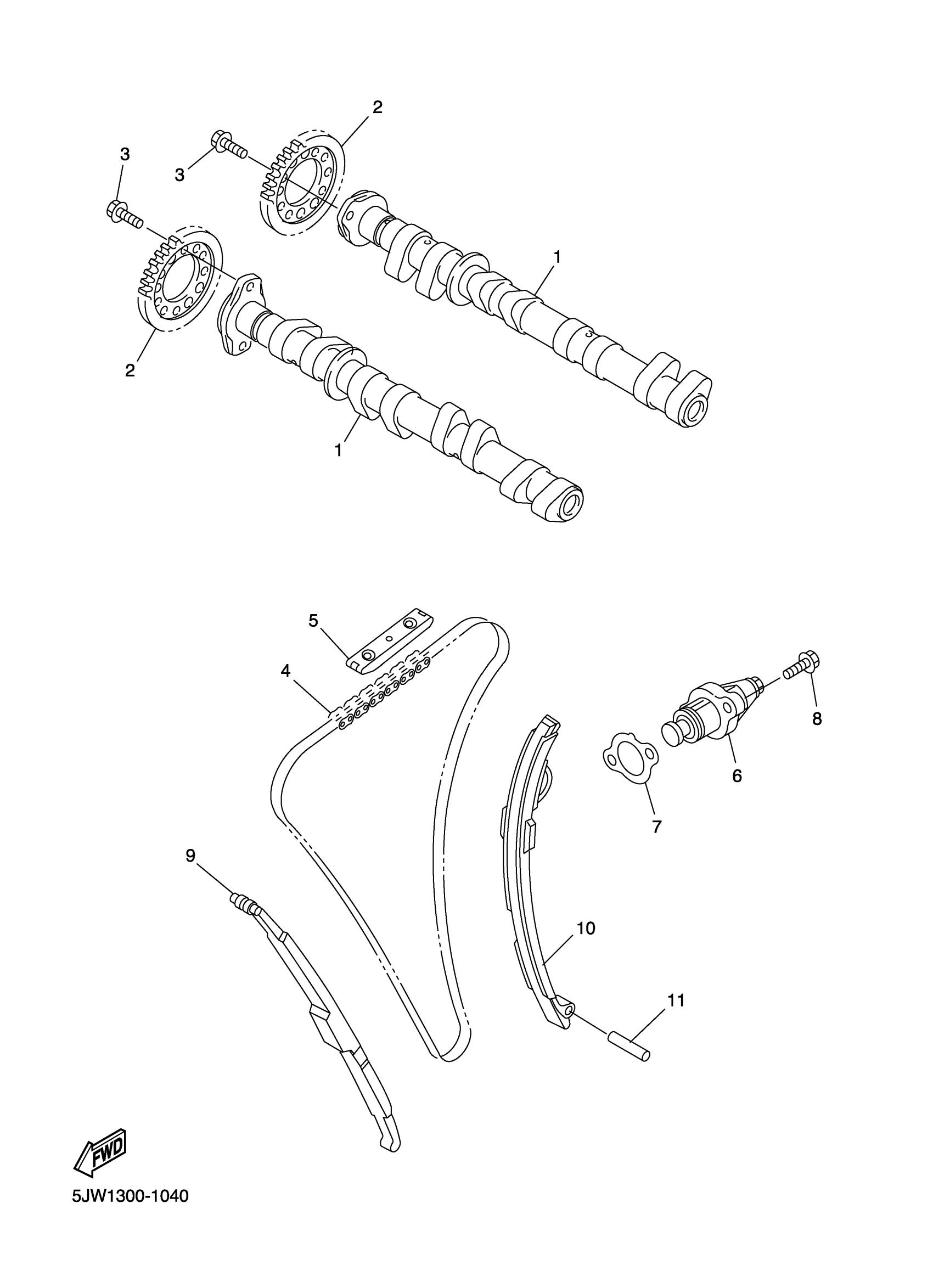

Yamaha FJR1300SC (FJR1300 CA) 5JWE 2004 CAMSHAFT CHAIN Diagram

CAMSHAFT 2

1MC-12181-00-00

Unavailable

SPROCKET, CAM CHAIN

5JW-12176-10-00

Unavailable

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN

94591-73136-00

Unavailable

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

TENSIONER ASSY, CAM CHAIN

1MC-12210-01-00

Unavailable

GASKET, TENSIONER CASE

5JW-12213-00-00

$7.99

BOLT, SMALL FLANGE

95027-06025-00

$4.16

DAMPER, CHAIN 1

5JW-12251-01-00

$62.99

DAMPER, CHAIN 2

5JW-12252-01-00

$82.99

PIN, DOWEL (8V8)

93607-44190-00

$16.99
