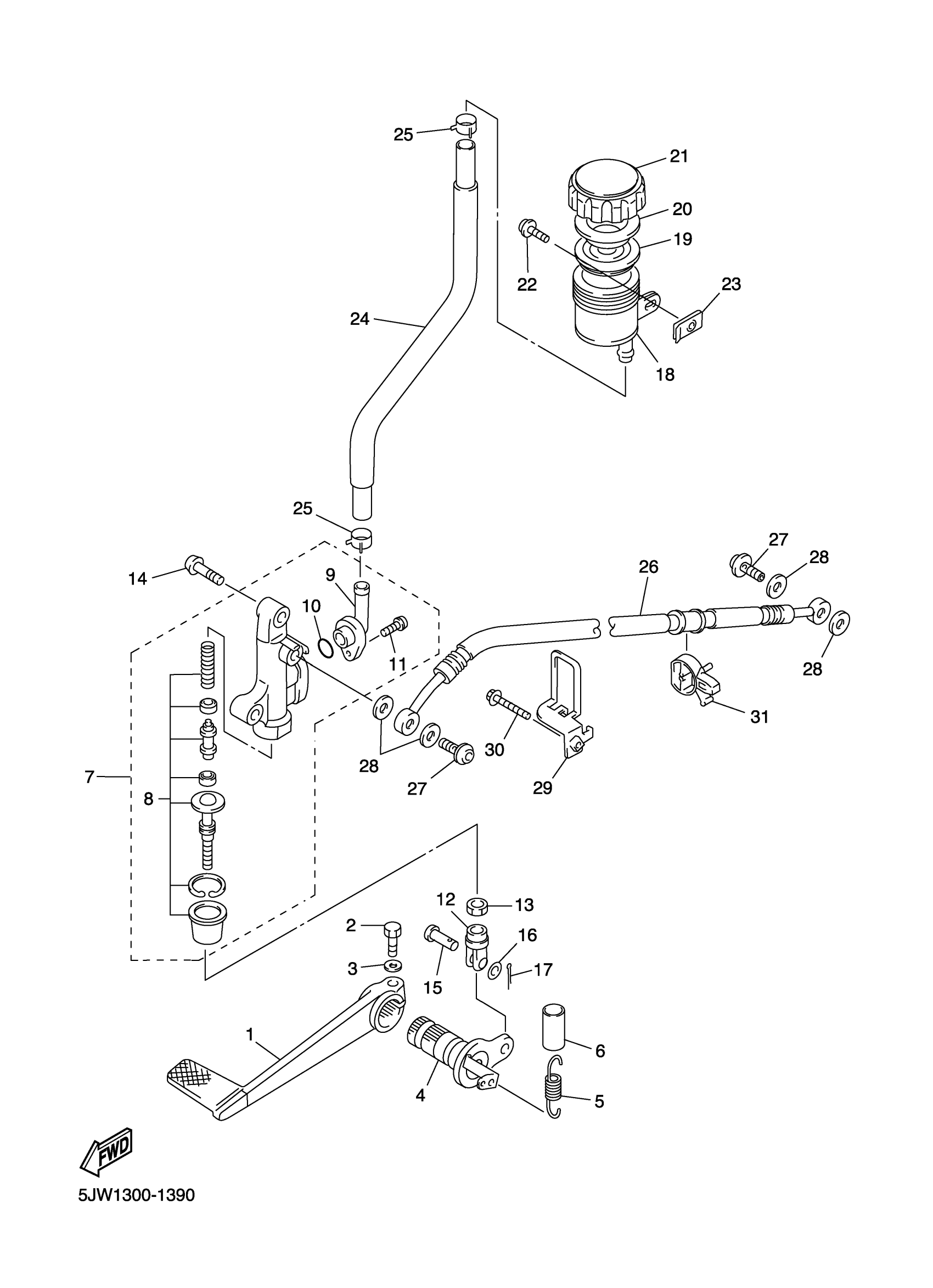

Yamaha FJR1300RC (FJR1300 CA) 5JW8 2003 REAR MASTER CYLINDER Diagram

PEDAL, BRAKE

5JW-27211-00-00

$144.99

BOLT (1J7)

90109-06468-00

$7.49

WASHER, PLAIN (646)

92990-06600-00

$2.80

SHAFT, BRAKE PEDAL

5JW-27212-01-00

Unavailable

SPRING, TENSION

90506-25001-00

$9.49

HOSE(3GM)

90446-17346-00

$5.60

RR. MASTER CYLINDER ASSY.

5JW-2583V-00-00

Unavailable

. CYLINDER KIT, MASTER

5JW-W0042-50-00

Unavailable

. JOINT

3LN-2582A-00-00

Unavailable

O-RING

3LN-2585F-00-00

Unavailable

SCREW SET

3LN-2585H-00-00

$2.18

JOINT

4XV-27222-01-00

$43.99

NUT, HEXAGON SMALL

95317-08700-00

$9.49

BOLT, BUTTON

92017-08030-00

$9.49

PIN, CLEVIS (5X6)

91701-06018-00

$4.94

WASHER(6TA)

92907-06200-00

Unavailable

PIN, COTTER

91490-16020-00

Unavailable

TANK, RESERVOIR

31A-25894-01-00

Unavailable

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

SCREW, PAN

98517-06020-00

Unavailable

NUT, SPRING(4ES)

90183-06069-00

Unavailable

HOSE, RESERVOIR

5JW-25895-00-00

Unavailable

CLIP (5K4)

90467-14057-00

Unavailable

HOSE, BRAKE 5

5JW-2581K-00-00

Unavailable

BOLT, UNION

90401-10172-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable

HOLDER, BRAKE HOSE 2

5JW-25876-00-00

Unavailable

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

CLAMP(4NX)

90464-23239-00

Unavailable
