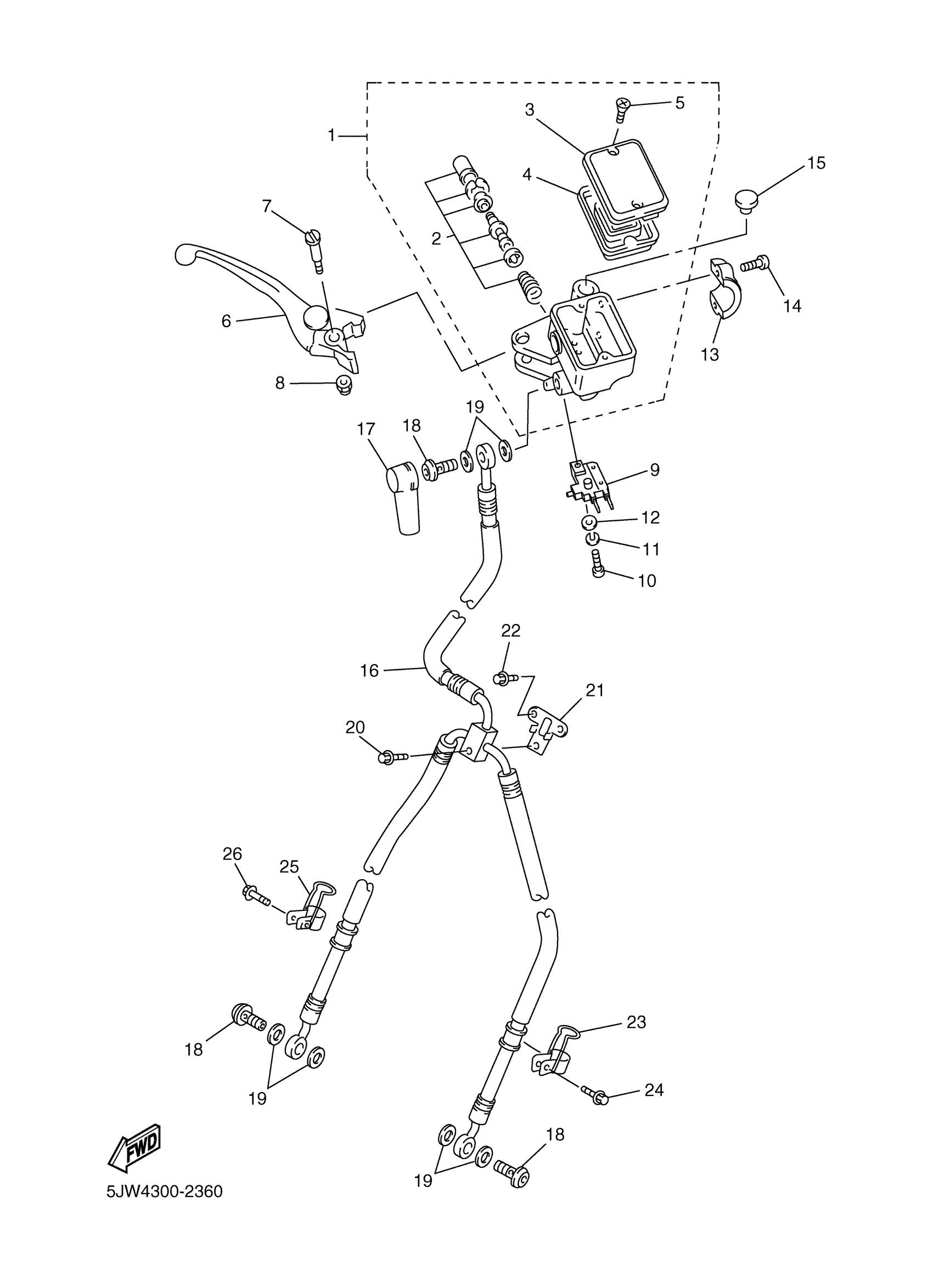

Yamaha FJR1300RC (FJR1300 CA) 5JW8 2003 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5DM-W2587-01-00

$313.99

2

CYLINDER KIT, MASTER

5DM-W0041-50-00

$75.99

3

RESERVOIR CAP SET

4HM-W2585-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

LEVER 2

5EB-83922-01-00

$81.99

7

BOLT, LEVER

3FV-2589F-00-00

$16.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

10

SCREW, PAN HEAD

98517-04012-00

$3.88

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

WASHER, PLAIN (646)

92990-04600-00

$5.99

13

BRACKET, MASTER CYLINDER

4HM-25867-00-00

$37.99

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

PLUG (341-26329-00)

90338-09012-00

$9.49

16

HOSE, BRAKE 1

5JW-25872-01-00

Unavailable

17

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

18

BOLT, UNION

90401-10172-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

21

HOLDER, BRAKE HOSE

5JW-25886-00-00

Unavailable

22

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

23

HOLDER, BRAKE HOSE

4KG-25887-00-00

Unavailable

24

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

25

HOLDER, BRAKE HOSE 2

4KG-25876-01-00

Unavailable

26

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable
