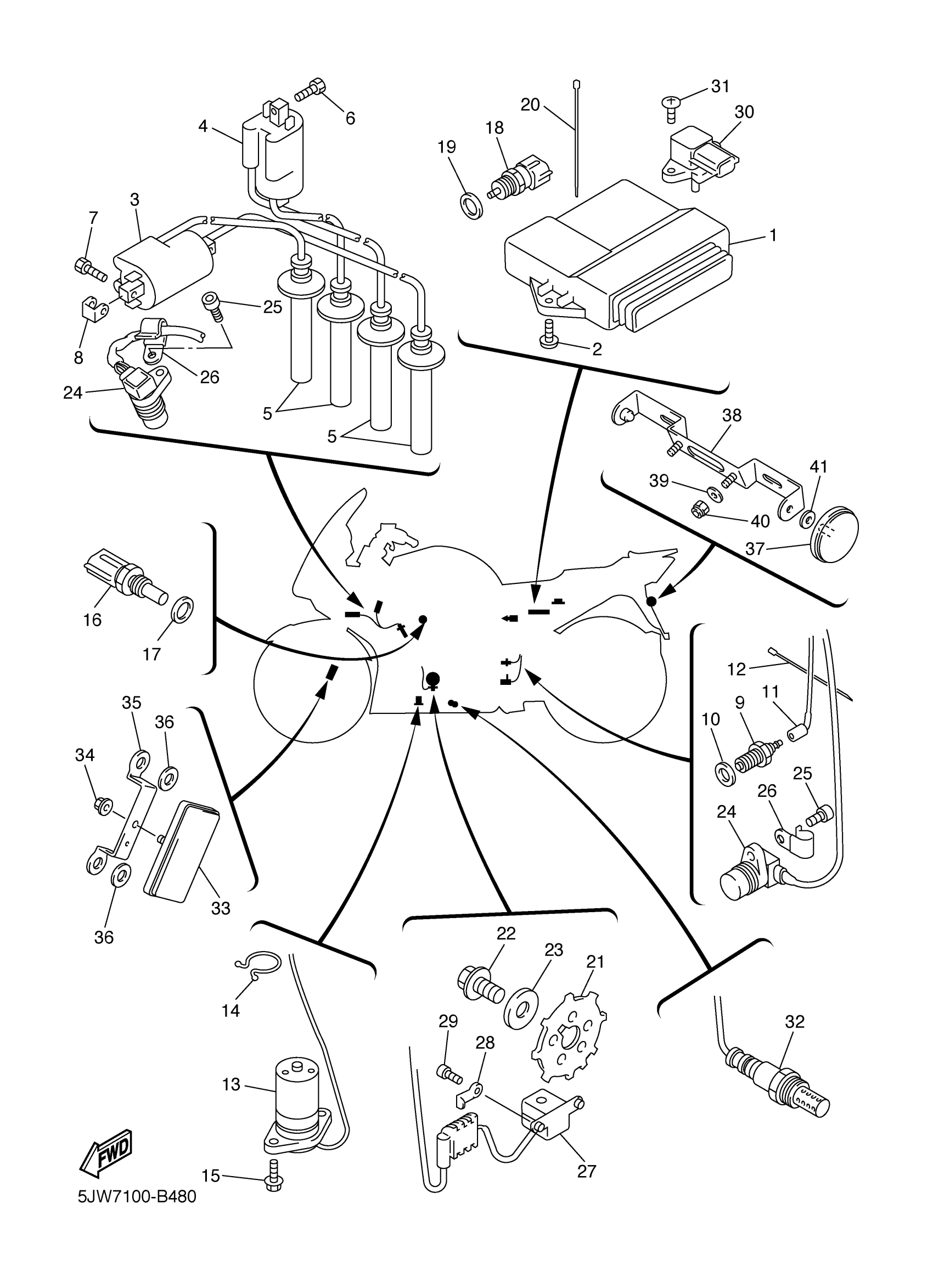

Yamaha FJR1300RC (FJR1300 CA) 5JW8 2003 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

5JW-8591A-32-00

Unavailable

2

SCREW, TAPPING

97707-60020-00

Unavailable

3

IGNITION COIL ASSY

5JW-82310-00-00

Unavailable

4

IGNITION COIL ASSY

5JW-82320-00-00

Unavailable

5

PLUG CAP ASSY

5JW-82370-00-00

$149.99

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

BOLT(7U8)

97080-06020-00

Unavailable

8

DAMPER, IGNITION COIL

3LN-82317-00-00

Unavailable

9

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

10

GASKET (5R6)

90430-10171-00

$3.18

11

WIRE, LEAD

5JW-82541-00-00

Unavailable

12

BAND

80L-26397-00-00

$7.99

13

OIL LEVEL GAUGE ASSY

5JW-85720-00-00

Unavailable

14

CLAMP (3Y2)

90464-16039-00

$9.49

15

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

16

THERMOSENSOR ASSY

8CC-85790-01-00

Unavailable

17

WASHER, PLATE

90201-12790-00

Unavailable

18

THERMOSENSOR ASSY

5FL-85790-00-00

Unavailable

19

GASKET(2GH)

90430-12202-00

Unavailable

20

BAND

80L-26397-00-00

$7.99

21

ROTOR

5JW-81673-10-00

Unavailable

22

BOLT, FLANGE(4BD)

95817-10022-00

Unavailable

23

WASHER, PLATE

90201-10022-00

Unavailable

24

SENSOR, SPEED

5FL-83755-03-00

Unavailable

25

BOLT,SOCKET

91317-06016-00

Unavailable

26

CLAMP

90465-08028-00

Unavailable

27

PICK-UP ASSY

5JW-81670-00-00

Unavailable

28

CLAMP

90465-08033-00

Unavailable

29

BOLT, SOCKET

91317-05012-00

Unavailable

30

SENSOR, PRESSURE

5JW-82380-00-00

Unavailable

31

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

32

SENSOR

5JW-8592A-00-00

Unavailable

33

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

34

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

35

BRACKET, REFLECTOR 2

5BN-85122-00-00

Unavailable

36

WASHER PLATE (3L6)

90201-08759-00

Unavailable

37

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

38

BRACKET, LICENSE

5JW-84751-00-00

Unavailable

39

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

40

NUT, SELF-LOCKING

95617-06100-00

Unavailable

41

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable
