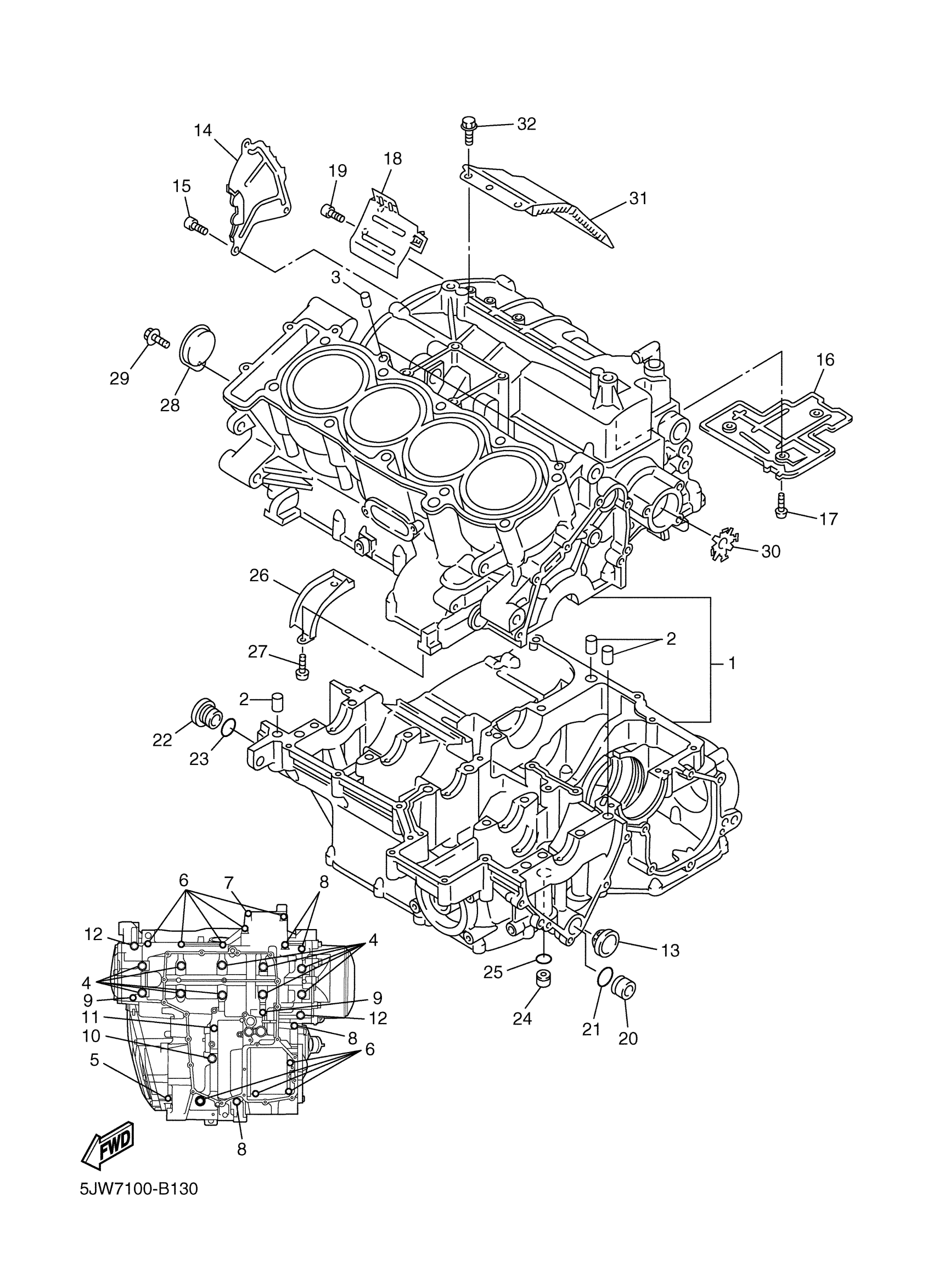

Yamaha FJR1300RC (FJR1300 CA) 5JW8 2003 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5JW-15100-01-00

Unavailable

1

CRANKCASE ASSY

5JW-15100-10-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, WITH WASHER

90119-09001-00

$10.49

5

BOLT, FLANGE

95817-06045-00

$8.49

6

BOLT, FLANGE

95817-06055-00

$7.49

7

BOLT, FLANGE

95817-06055-00

$7.49

8

BOLT, FLANGE

95817-06065-00

Unavailable

9

BOLT, FLANGE

95817-06080-00

$4.72

10

BOLT, FLANGE

95817-08050-00

$2.44

11

BOLT, WASHER BASED(4JG)

90105-08721-00

$4.46

12

BOLT

90109-065G3-00

$9.49

13

GAUGE, LEVEL

2H7-15361-00-00

$97.99

14

PLATE, BREATHER

5JW-11165-01-00

Unavailable

15

BOLT,SOCKET

91317-06012-00

Unavailable

16

PLATE, BREATHER 2

5JW-11145-00-00

Unavailable

17

SCREW

90149-06030-00

Unavailable

18

COVER, OIL PUMP

5JW-15412-00-00

Unavailable

19

BOLT,SOCKET

91317-06012-00

Unavailable

20

PLUG

90338-20263-00

Unavailable

21

O-RING (1J7)

93210-16314-00

Unavailable

22

PLUG

4H7-15189-00-00

Unavailable

23

O-RING

93210-20802-00

Unavailable

24

PLUG

90338-16262-00

Unavailable

25

O-RING(3LD)

93210-12790-00

Unavailable

26

PLATE

5JW-15191-00-00

Unavailable

27

SCREW

90149-06030-00

Unavailable

28

PLUG

5JW-15189-00-00

Unavailable

29

BOLT, FLANGE

95817-06014-00

Unavailable

30

SHIM, KICK SHAFT

5JW-15645-00-00

Unavailable

31

PLATE

5JW-15113-00-00

Unavailable

32

BOLT, FLANGE

95817-06014-00

Unavailable
