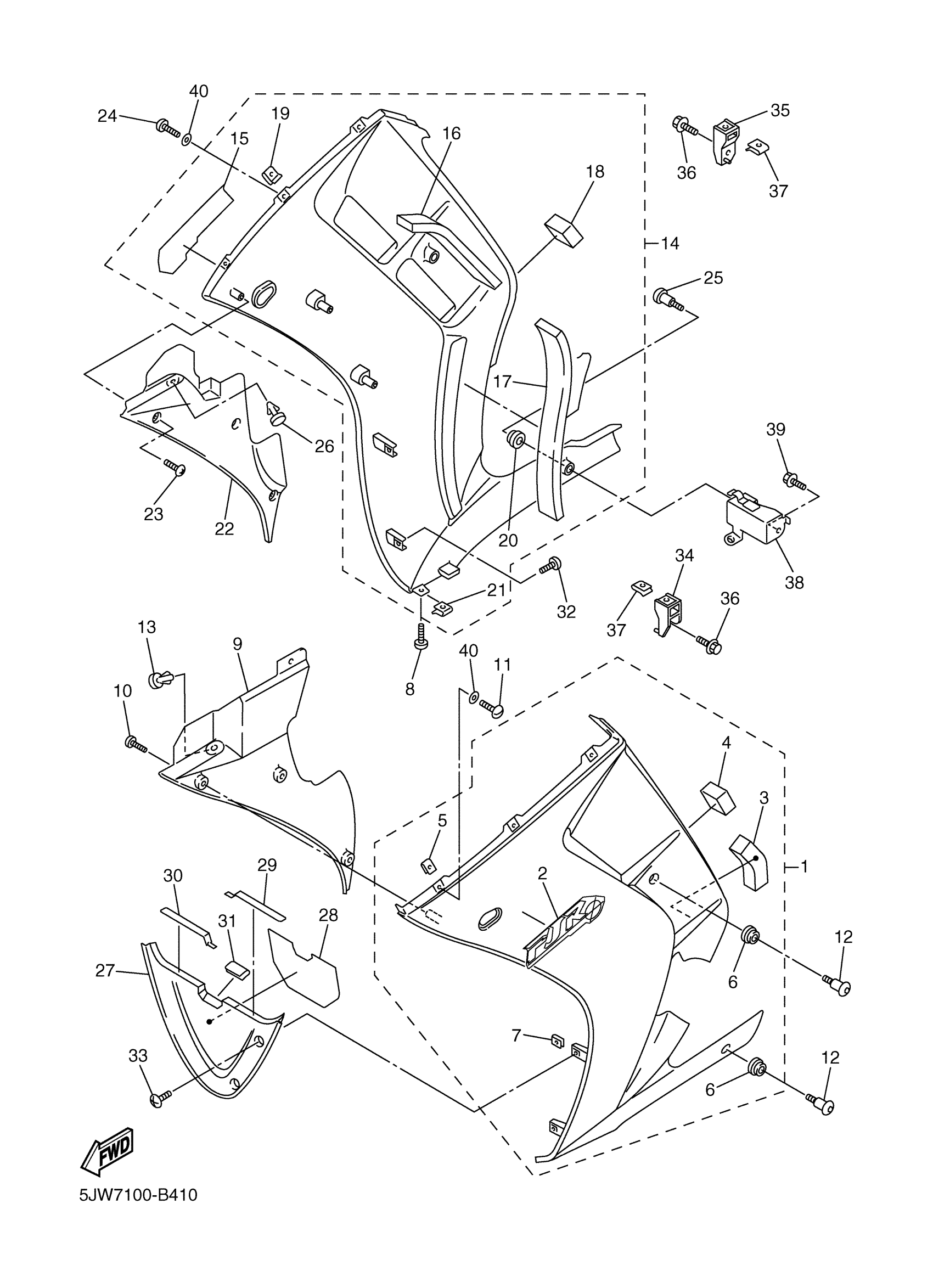

Yamaha FJR1300RC (FJR1300 CA) 5JW8 2003 COWLING 2 Diagram

#

Description
Price

1

BODY, FRONT LOWER 1 (SILVER METALLIC 1)

5JW-Y283J-40-P1

Unavailable

2

EMBLEM

5JW-28328-20-00

$43.99

3

DAMPER 1

5VS-2834E-00-00

Unavailable

4

. DAMPER

5JW-28371-00-00

Unavailable

5

NUT, SPRING

90183-051A0-00

$3.81

6

GROMMET

90480-13014-00

$8.49

7

NUT, SPRING

90183-051A0-00

$3.81

8

BOLT

90111-05003-00

$8.49

9

PANEL, INNER 1

5JW-2836K-00-00

Unavailable

10

SCREW, TAPPING (35R)

90167-05016-00

$0.74

11

BOLT

90111-05003-00

$8.49

12

BOLT

90109-06037-00

$7.49

13

RIVET(4JH)

90269-07076-00

$7.49

14

BODY, FRONT LOWER 2 (SILVER METALLIC 1)

5JW-Y283K-40-P1

Unavailable

15

EMBLEM

5JW-28328-20-00

$43.99

16

DAMPER

5EA-2174Y-00-00

Unavailable

17

DAMPER

5VS-2834F-00-00

Unavailable

18

. DAMPER

5JW-28371-00-00

Unavailable

19

NUT, SPRING

90183-051A0-00

$3.81

20

GROMMET

90480-13014-00

$8.49

21

NUT, SPRING

90183-051A0-00

$3.81

22

PANEL, INNER 2

5JW-2836L-00-00

Unavailable

23

SCREW, TAPPING (35R)

90167-05016-00

$0.74

24

BOLT

90111-05003-00

$8.49

25

BOLT

90109-06037-00

$7.49

26

RIVET(4JH)

90269-07076-00

$7.49

27

COVER, LOWER

5JW-28385-10-P2

Unavailable

28

SEAT

5JW-2848H-00-00

Unavailable

29

SEAT 2

5JW-2848K-00-00

Unavailable

30

SEAT 3

5JW-2848L-00-00

Unavailable

31

MOLE 1

5JW-28345-00-00

Unavailable

32

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

33

BOLT

90111-05003-00

$8.49

34

BRACKET 1

5JW-2836A-00-00

Unavailable

35

BRACKET 2

5JW-2836E-00-00

Unavailable

36

BOLT, HEXAGON

97017-06012-00

Unavailable

37

NUT, SPRING

90183-051A0-00

$3.81

38

BRACKET 3

5JW-2836F-00-00

Unavailable

39

BOLT, FLANGE

95817-06012-00

Unavailable

40

WASHER, PLATE(1KT)

90202-05180-00

Unavailable
