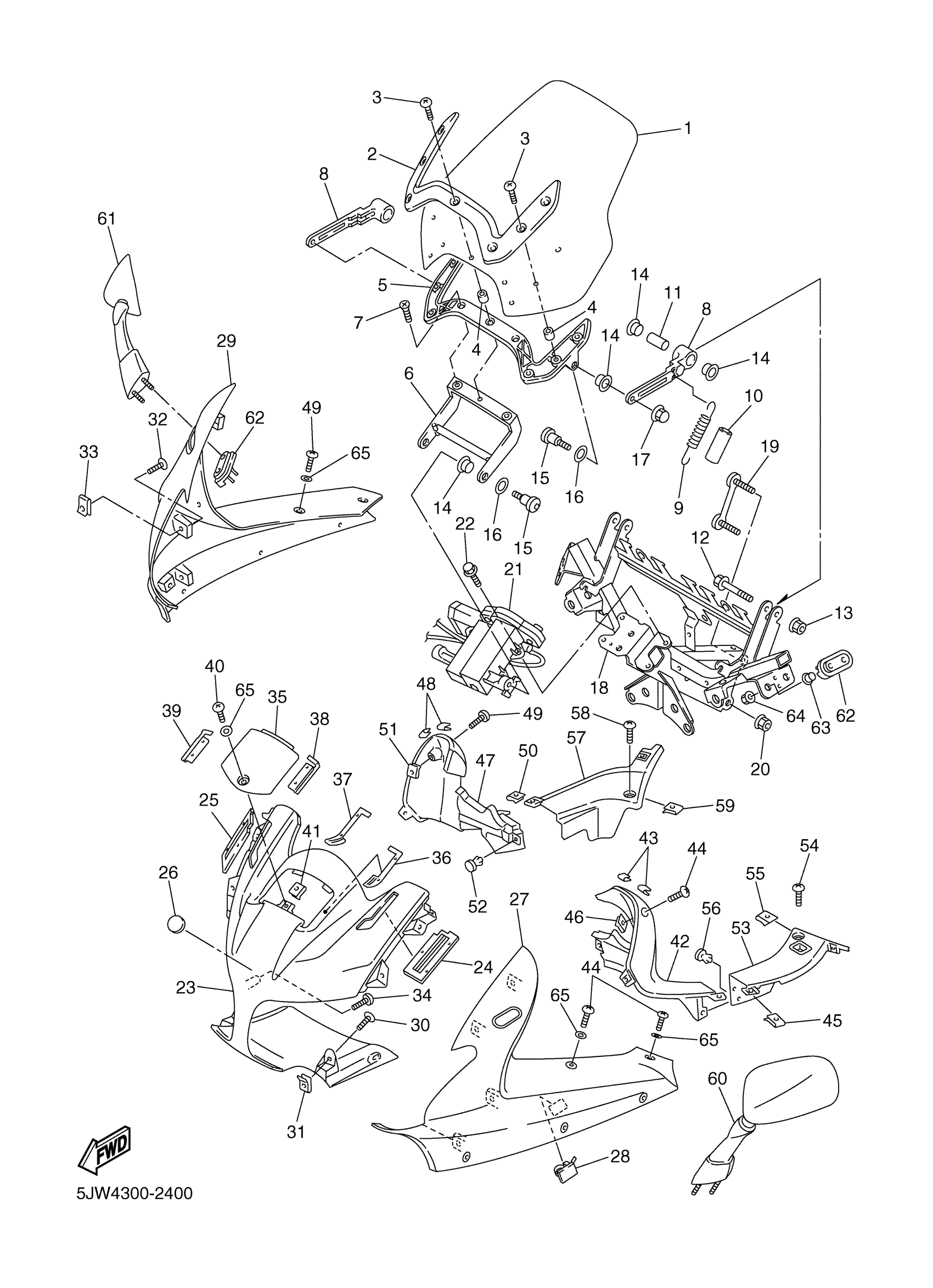

Yamaha FJR1300RC (FJR1300 CA) 5JW8 2003 COWLING 1 Diagram
#
1
WINDSHIELD
5JW-28381-10-00
Unavailable
2
WASHER, LEG SHIELD
5JW-28323-00-00
Unavailable
5
STAY 2
5JW-28322-00-00
Unavailable
6
STAY, LEG SHIELD
5JW-28332-00-00
Unavailable
8
LINK 1
5JW-2833C-00-00
Unavailable
11
. COLLAR
90387-06605-00
Unavailable
16
WASHER, PLATE (655)
90202-10044-00
Unavailable
17
NUT, CROWN(1FN)
90176-06055-00
Unavailable
18
STAY 1
5JW-28356-00-00
Unavailable
19
PLATE
5JW-28336-00-00
Unavailable
20
NUT (22F)
90179-10394-00
Unavailable
21
DRIVE UNIT ASSY
5JW-83306-01-00
Unavailable
22
BOLT, FLANGE(4DU)
95027-06014-00
Unavailable
23
BODY, COWLING
99999-03373-00
Unavailable
24
SEAL 1
5JW-28428-00-00
Unavailable
25
SEAL 2
5JW-28429-00-00
Unavailable
26
TUNING FORK MARK
5LV-2836B-01-00
Unavailable
27
BODY, FRONT UPPER 1 (SILVER METALLIC 1)
5JW-2835G-00-P1
Unavailable
28
CLAMP(3YL)
90464-25160-00
Unavailable
29
BODY, FRONT UPPER 2
5JW-2835H-00-P1
Unavailable
30
BOLT
90111-05003-00
Unavailable
31
NUT, SPRING
90183-051A0-00
Unavailable
32
BOLT
90111-05003-00
Unavailable
33
NUT, SPRING
90183-051A0-00
Unavailable
34
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
35
COVER (SILVER METALLIC 1)
5JW-28365-00-P1
Unavailable
36
SEAL 3
5VS-2844E-00-00
Unavailable
37
SEAL 4
5VS-2846F-00-00
Unavailable
38
SEAL 5
5JW-2847F-00-00
Unavailable
39
SEAL 6
5JW-2848F-00-00
Unavailable
40
BOLT
90111-05003-00
Unavailable
41
NUT, SPRING(3GM)
90183-05061-00
Unavailable
42
PANEL, CONSOLE 1
5JW-2837L-00-00
Unavailable
43
SEAL
5JW-23844-00-00
Unavailable
44
BOLT
90111-05003-00
Unavailable
45
NUT, SPRING
90183-051A0-00
Unavailable
46
NUT, SPRING(3GM)
90183-05061-00
Unavailable
47
PANEL, CONSOLE 2
5JW-2837M-00-00
Unavailable
48
SEAL
5JW-23844-00-00
Unavailable
49
BOLT
90111-05003-00
Unavailable
50
NUT, SPRING
90183-051A0-00
Unavailable
51
NUT, SPRING(3GM)
90183-05061-00
Unavailable
52
RIVET
90269-07006-00
Unavailable
53
PANEL, INNER 3
5JW-2836M-00-00
Unavailable
54
BOLT
90111-05003-00
Unavailable
55
NUT, SPRING
90183-051A0-00
Unavailable
56
RIVET(4JH)
90269-07076-00
Unavailable
57
PANEL, INNER 4
5JW-2836N-00-00
Unavailable
58
BOLT
90111-05003-00
Unavailable
59
NUT, SPRING
90183-051A0-00
Unavailable
60
REAR VIEW MIRROR ASSY(LEFT)
5JW-26280-00-00
Unavailable
61
REAR VIEW MIRROR ASSY(RIGHT)
5JW-26290-00-00
Unavailable
62
PLATE, MIRROR FITTING 1
5JW-26298-00-00
Unavailable
63
C0LLAR (3JB1)
90387-062X0-00
Unavailable
64
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
65
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
