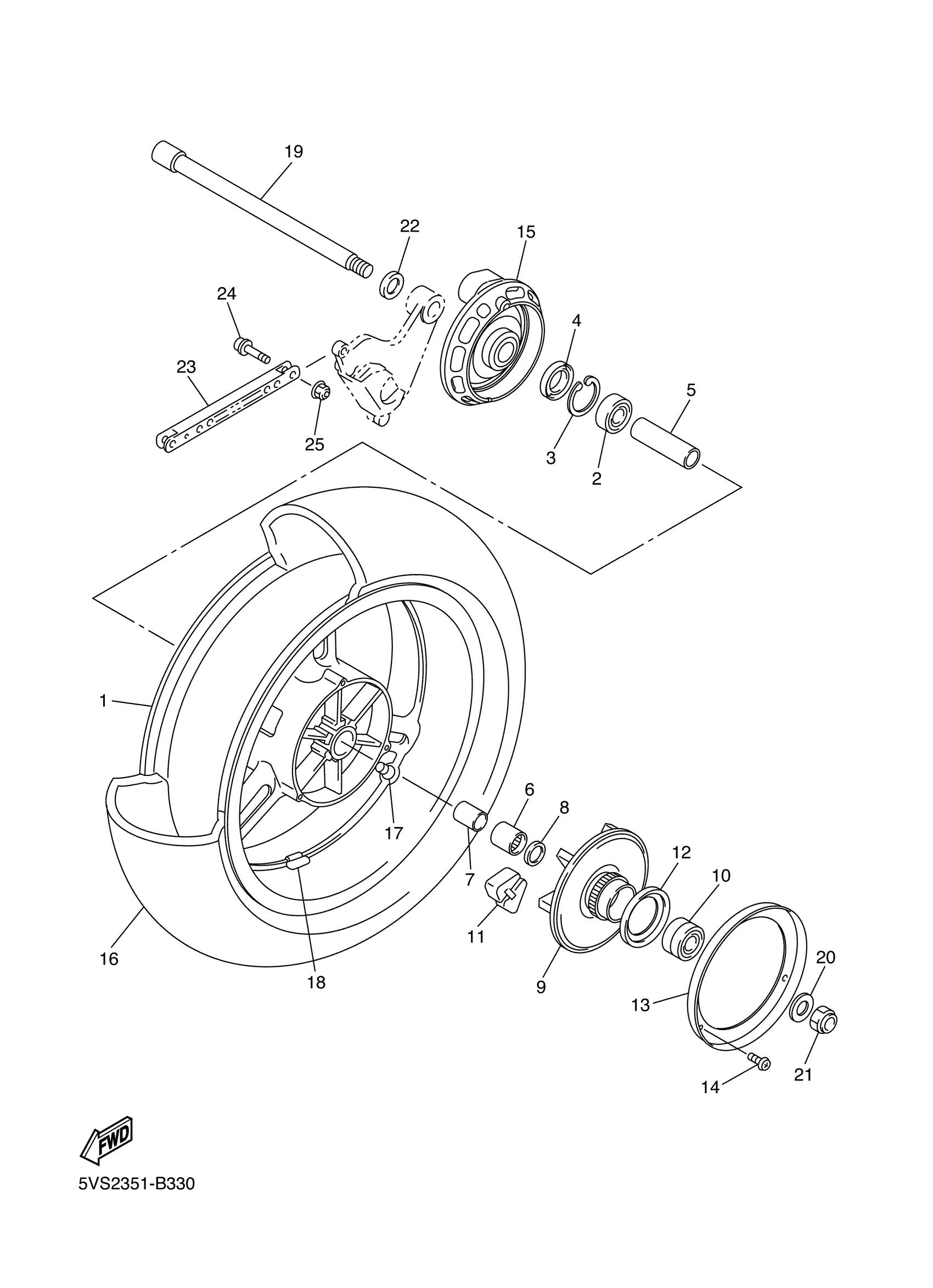

Yamaha FJR1300ASC (FJR1300ABS CA) 5VS5 2004 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5VS-W2533-00-35

Unavailable

2

BEARING

93306-30446-00

$66.99

3

CIRCLIP(26H)

99009-52500-00

$12.49

4

OIL SEAL(3BC)

93106-40027-00

$15.99

5

SPACER, BEARING

5JW-25317-00-00

$23.99

6

BEARING

93317-42592-00

$49.99

7

COLLAR, WHEEL

5JW-25383-00-00

$40.99

8

OIL SEAL(3MA)

93101-25104-00

$9.49

9

CLUTCH, HUB

5JW-25366-00-00

Unavailable

10

BEARING

93306-20480-00

$44.99

11

DAMPER

5JW-25364-00-00

$28.99

12

SEAL, HUB DUST

5JW-25319-00-00

$37.99

13

COVER, PLATE

5JW-25327-00-00

$73.99

14

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

15

HOUSING, SENSOR REAR

5VS-2537A-00-00

$178.99

16

TIRE (180/55ZR17M/C 73W BTO20R)

94118-17020-00

Unavailable

17

VALVE, RIM(2GH)

93900-00030-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

19

AXLE, WHEEL

5JW-25381-10-00

Unavailable

20

WASHER, PLATE

90201-181U5-00

Unavailable

21

NUT, SELF-LOCKING

90185-18009-00

Unavailable

22

WASHER(3JP)

92903-20600-00

Unavailable

23

BAR, TENSION

5JW-25371-00-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-08007-00

Unavailable

25

NUT, SELF-LOCKING

90185-08169-00

Unavailable
