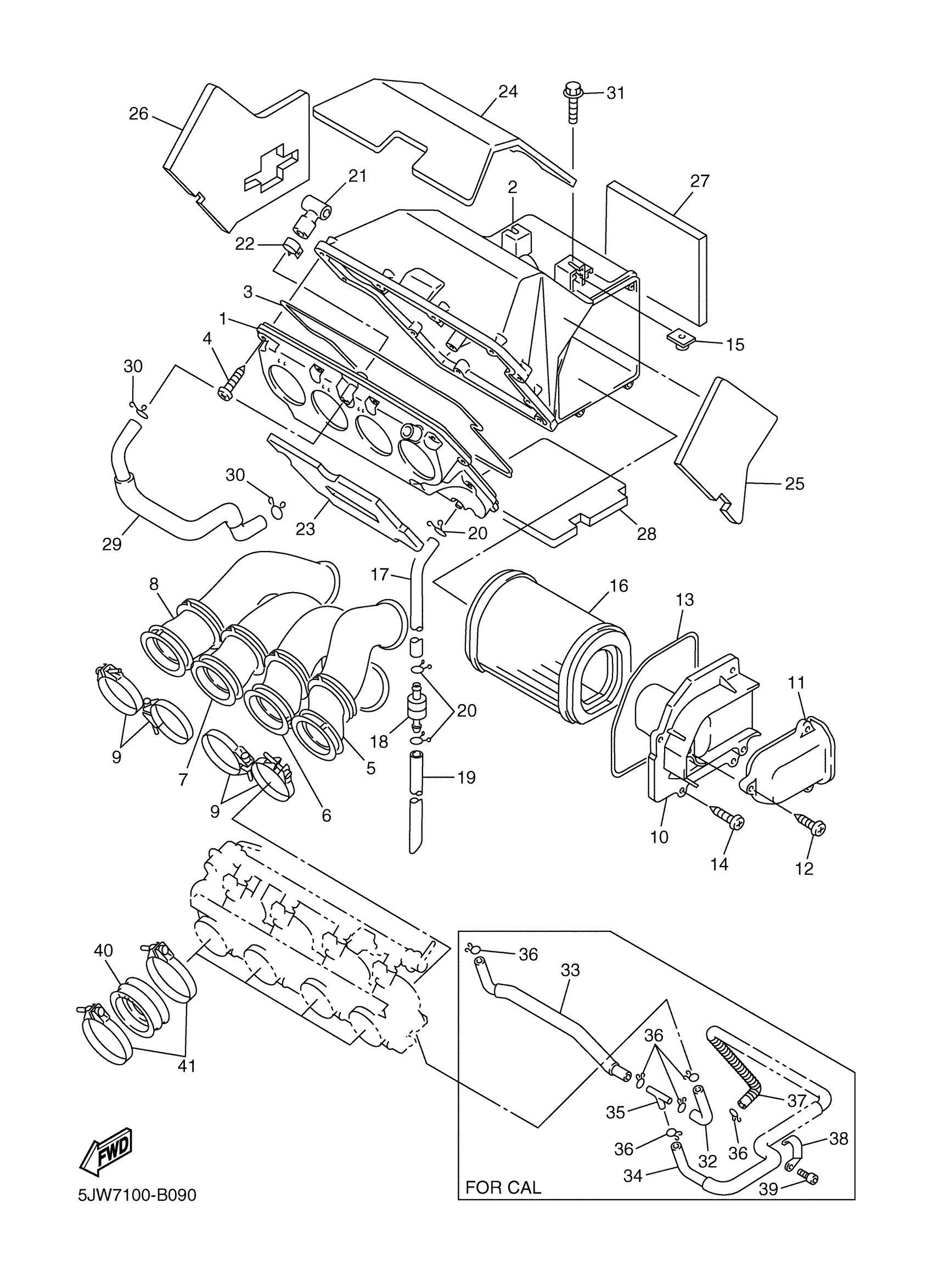

Yamaha FJR1300ASC (FJR1300ABS CA) 5VS5 2004 INTAKE Diagram
#
1
CASE, AIR CLEANER 1
5JW-14411-00-00
Unavailable
2
CASE, AIR CLEANER 2
5JW-14421-10-00
Unavailable
5
JOINT, AIR CLEANER 1
5JW-14453-00-00
Unavailable
6
JOINT, AIR CLEANER 2
5JW-14463-00-00
Unavailable
7
JOINT
5JW-14454-10-00
Unavailable
8
JOINT
5JW-14568-00-00
Unavailable
9
HOSE CLAMP ASSY
90450-57002-00
Unavailable
10
CAP, CLEANER CASE 1
5JW-14412-10-00
Unavailable
11
DUCT
5JW-14437-00-00
Unavailable
15
PLATE
31A-14477-10-00
Unavailable
16
ELEMENT, AIR CLEANER
5JW-14451-00-00
Unavailable
17
HOSE (L198)
90445-11293-00
Unavailable
18
FILTER ASSY
4X7-2149Y-00-00
Unavailable
19
HOSE (L280)
90445-11003-00
Unavailable
20
CLIP
90467-100A1-00
Unavailable
21
PIPE
5JW-14419-00-00
Unavailable
22
CLIP
90468-08104-00
Unavailable
23
DAMPER
5JW-14409-00-00
Unavailable
24
DAMPER 1
5JW-14425-00-00
Unavailable
25
DAMPER 2
5JW-14426-00-00
Unavailable
26
DAMPER 3
5JW-1442G-00-00
Unavailable
27
DAMPER 4
5JW-1442H-00-00
Unavailable
28
DAMPER 5
5JW-1442L-00-00
Unavailable
29
PIPE, BREATHER 1
5JW-11166-00-00
Unavailable
30
CLIP (371)
90467-14015-00
Unavailable
31
BOLT, FLANGE
95817-06020-00
Unavailable
32
PIPE
5JW-14465-01-00
Unavailable
33
PIPE
5JW-14466-01-00
Unavailable
34
PIPE
5JW-1443J-00-00
Unavailable
35
PIPE, JOINT
3H3-24376-00-00
Unavailable
36
CLIP
90467-100A1-00
Unavailable
37
SPRING, COMPRESSION(3JK)
90501-101J5-00
Unavailable
38
CLAMP
90465-08028-00
Unavailable
39
BOLT,SOCKET
91317-06016-00
Unavailable
40
JOINT, CARBURETOR 3
5JW-13597-00-00
Unavailable
41
HOSE CLAMP ASSY
90450-63001-00
Unavailable
