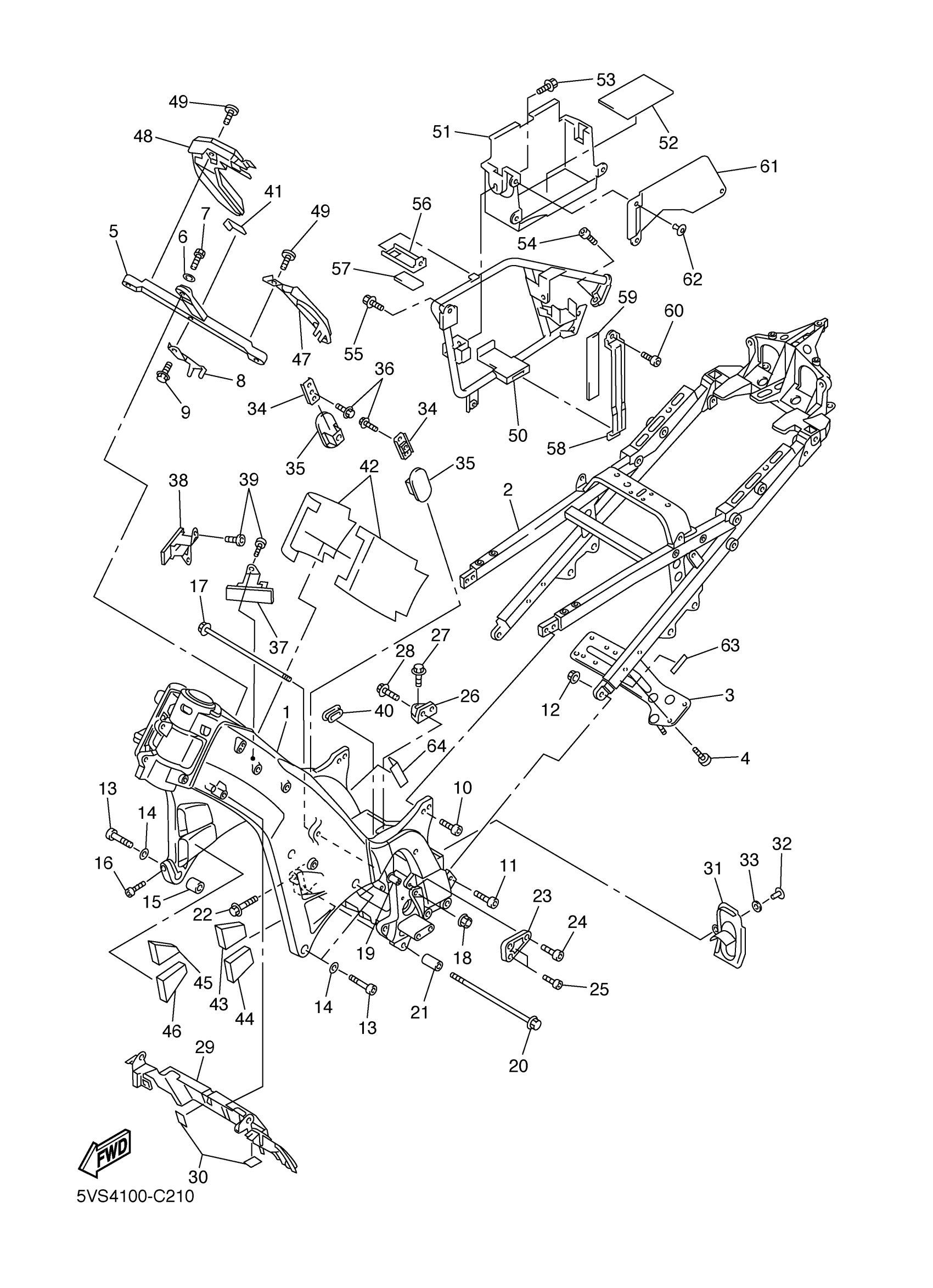

Yamaha FJR1300ASC (FJR1300ABS CA) 5VS5 2004 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5VS-21110-00-00

Unavailable

2

REAR FRAME COMP.

5JW-21190-00-00

Unavailable

3

MEMBER 1

5JW-2115A-01-00

Unavailable

4

SCREW(4DN)

90149-06302-00

Unavailable

5

CROSS-TUBE

5JW-21119-00-00

Unavailable

6

WASHER, PLATE (17K)

90201-106F2-00

$10.49

7

BOLT, FLANGE

95817-10030-00

$8.49

8

GUIDE, WIRE

5JW-21339-00-00

Unavailable

9

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

10

BOLT, SOCKET

91317-08020-00

$8.49

11

BOLT,SOCKET

91314-10030-00

$5.60

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

13

BOLT

91314-12055-00

$10.49

14

WASHER(6TA)

92907-12600-00

$1.71

15

COLLAR

90387-1312P-00

$18.99

16

BOLT,SOCKET

91314-08030-00

Unavailable

17

BOLT, WASHER BASED(1UF)

90105-10416-00

Unavailable

18

NUT

90179-10696-00

Unavailable

19

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

20

BOLT, WASHER BASED(4KM)

90105-10781-00

Unavailable

21

SPACER(3LN)

90560-10364-00

Unavailable

22

BOLT, FLANGE(4MY)

95027-08035-00

Unavailable

23

STAY, ENGINE 2

5JW-21315-00-00

Unavailable

24

BOLT,SOCKET

91314-10020-00

Unavailable

25

BOLT,SOCKET

91314-08016-00

Unavailable

26

STAY, ENGINE 3

5JW-21316-00-00

Unavailable

27

BOLT (6TC)

90101-10M05-00

Unavailable

28

BOLT, WASHER BASED(36Y)

90105-08307-00

Unavailable

29

GUIDE, AIR

5JW-2137Y-01-00

Unavailable

30

DAMPER

5JW-2139X-00-00

Unavailable

31

COVER, SHAFT 1

3P6-2147J-01-00

Unavailable

32

RIVET(4JH)

90269-07076-00

Unavailable

33

WASHER, PLATE

90202-06058-00

Unavailable

34

BRACKET 3

5JW-2118U-00-00

Unavailable

35

BRACKET, INNER 1

5JW-2113N-00-00

Unavailable

36

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

37

BRACKET, INNER 2

5JW-2113R-01-00

Unavailable

38

BRACKET, INNER 2

5JW-2113R-11-00

Unavailable

39

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

40

CAP

5JW-2143A-00-00

Unavailable

41

DAMPER

5JW-2139X-00-00

Unavailable

42

DAMPER

5JW-21852-00-00

Unavailable

43

SHEET 1

5JW-21266-00-00

Unavailable

44

SHEET 1

5JW-21266-10-00

Unavailable

45

SHEET 2

5JW-21267-01-00

Unavailable

46

SHEET 2

5JW-21267-11-00

Unavailable

47

COVER

5JW-2117F-01-00

Unavailable

48

COVER 2

5JW-2117M-00-00

Unavailable

49

BOLT(3XP)

90109-065F3-00

Unavailable

50

STAY 1

5VS-28321-10-00

Unavailable

51

BOX, BATTERY

5JW-2177G-00-00

Unavailable

52

DAMPER, PLATE 1

5EJ-2414H-00-00

Unavailable

53

BOLT, WITH WASHER (25K)

90119-06079-00

Unavailable

54

BOLT,SOCKET

91317-06012-00

Unavailable

55

BOLT, FLANGE

95817-06016-00

Unavailable

56

STAY 2

5JW-28357-01-00

Unavailable

57

DAMPER 3

5JW-28425-00-00

Unavailable

58

STAY 3

5JW-28358-00-00

Unavailable

59

DAMPER 4

5JW-28435-00-00

Unavailable

60

BOLT,SOCKET

91317-06012-00

Unavailable

61

COVER

5JW-2172W-00-00

Unavailable

62

RIVET

90269-06001-00

Unavailable

63

LABEL 1

5JW-2151A-02-00

Unavailable

64

DAMPER

4GY-23426-00-00

Unavailable
