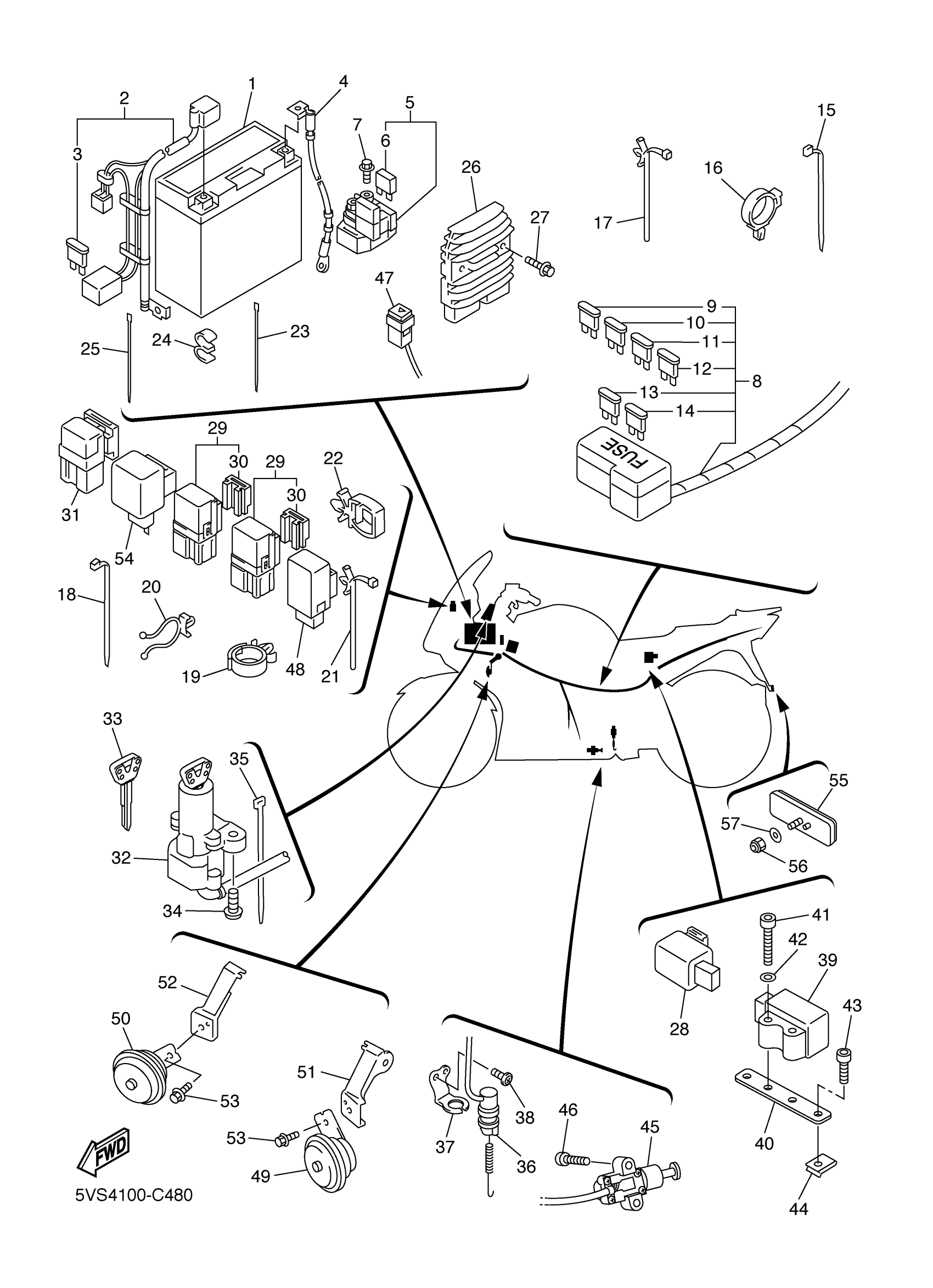

Yamaha FJR1300ASC (FJR1300ABS CA) 5VS5 2004 ELECTRICAL 2 Diagram
#
1
YT14BBS YUASA BATTERY - SA
YT1-4BBS0-00-00
Unavailable
2
WIRE, PLUS LEAD
5VS-82115-00-00
Unavailable
4
WIRE, MINUS LEAD
5VS-82116-00-00
Unavailable
8
WIRE HARNESS ASSY
5VS-82590-10-00
Unavailable
10
. FUSE (10A)
67F-82151-40-00
Unavailable
11
FUSE (15A)
67F-82151-50-00
Unavailable
16
CLAMP
90464-30001-00
Unavailable
17
CLAMP(4KJ)
90464-20213-00
Unavailable
19
CLAMP(4TR)
90464-18246-00
Unavailable
20
CLIP (19U)
90468-20123-00
Unavailable
21
CLAMP(4KJ)
90464-20213-00
Unavailable
22
CLAMP(4SV)
90464-20237-00
Unavailable
23
CLAMP
5Y9-12491-00-00
Unavailable
24
CLAMP(56R)
90464-60067-00
Unavailable
25
CLAMP
5Y9-12491-00-00
Unavailable
26
RECTIFIER & REGULATOR ASSY
5JW-81960-00-00
Unavailable
27
BOLT, FLANGE
95817-06030-00
Unavailable
28
RELAY ASSY (5PW-00)
5PW-81950-00-00
Unavailable
29
RELAY ASSY (5EA-02)
5EA-81950-20-00
Unavailable
30
HOLDER,RELAY
5EA-81952-00-00
Unavailable
31
RELAY ASSY
5DM-81950-01-00
Unavailable
32
MAIN SWITCH STEERING LOCK
5JW-82501-20-00
Unavailable
33
BLANK KEY
4BH-82511-09-00
Unavailable
34
BOLT
90109-08196-00
Unavailable
35
CLAMP
90465-10098-00
Unavailable
36
STOP SWITCH ASSY
5VS-82530-00-00
Unavailable
37
STAY, STOP SWITCH
5JW-2144G-00-00
Unavailable
38
SCREW, BINDING
98907-05008-00
Unavailable
39
SENSOR, LEAN ANGLE
5PS-82576-02-00
Unavailable
40
BRACKET, REAR STAY
5VS-21688-00-00
Unavailable
41
BOLT,SOCKET
91317-04025-00
Unavailable
42
WASHER, PLATE
90201-04027-00
Unavailable
43
BOLT, SOCKET
91317-04010-00
Unavailable
44
NUT, SPRING(47R)
90183-04039-00
Unavailable
45
SWITCH, SIDE STAND
5VS-82566-62-00
Unavailable
46
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
47
HAZARD FLASHER SWITCH
5JW-83362-01-00
Unavailable
48
RELAY ASSY (5VS-00)
5VS-81950-00-00
Unavailable
49
HORN
2KG-83371-00-00
Unavailable
50
HORN
4KG-83371-11-00
Unavailable
51
BRACKET, HORN
5JW-2134K-00-00
Unavailable
52
BRACKET, HORN 2
5JW-2134L-00-00
Unavailable
53
BOLT, FLANGE
95817-06012-00
Unavailable
54
FLASHER RELAY ASSY
3GM-83350-03-00
Unavailable
55
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
56
NUT, U
95617-05100-00
Unavailable
57
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
