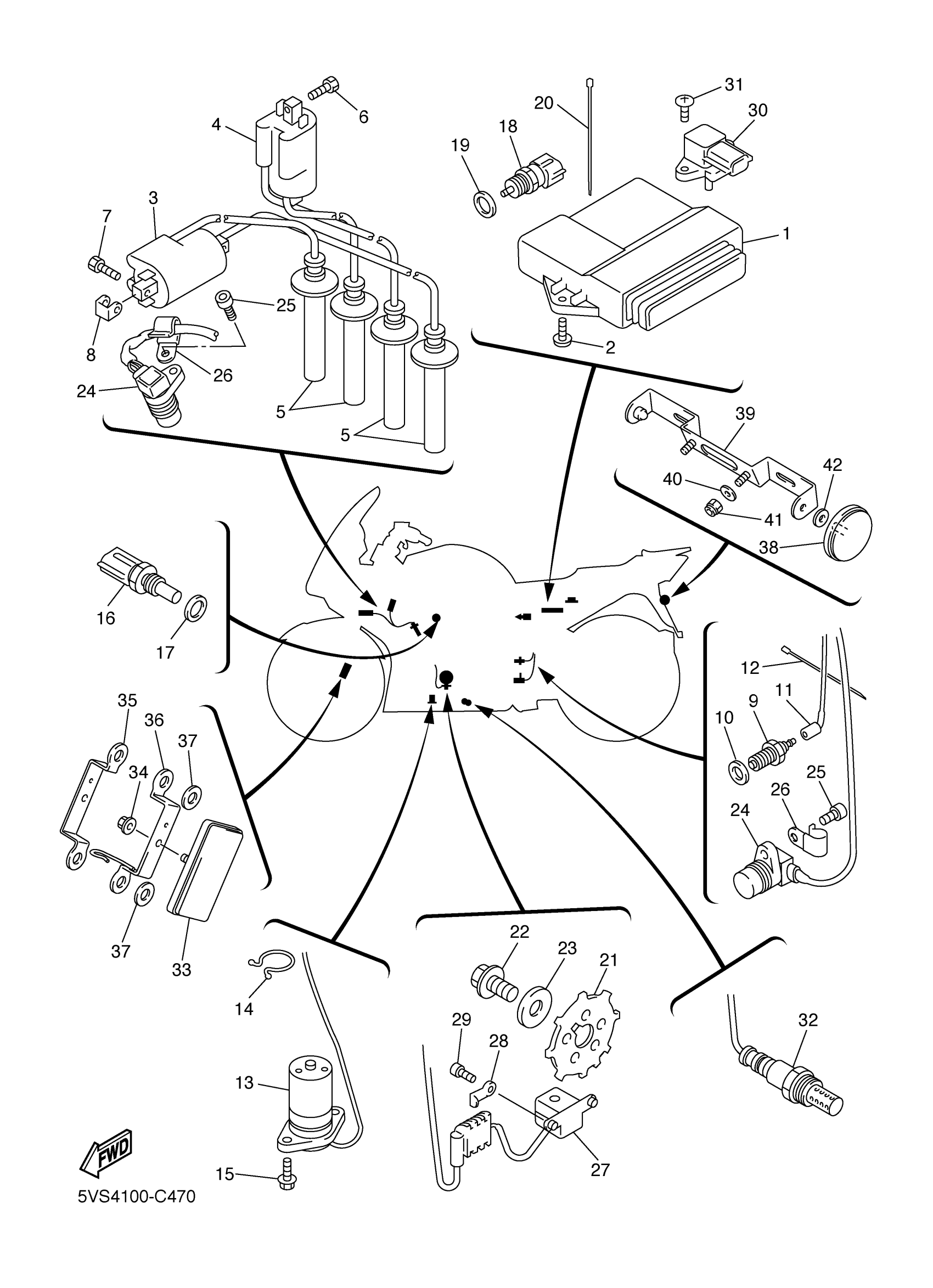

Yamaha FJR1300ASC (FJR1300ABS CA) 5VS5 2004 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
5JW-8591A-32-00
Unavailable
2
SCREW, TAPPING
97707-60020-00
Unavailable
3
IGNITION COIL ASSY
5JW-82310-00-00
Unavailable
4
IGNITION COIL ASSY
5JW-82320-00-00
Unavailable
6
BOLT,SOCKET
91317-06020-00
Unavailable
7
BOLT(7U8)
97080-06020-00
Unavailable
8
DAMPER, IGNITION COIL
3LN-82317-00-00
Unavailable
11
WIRE, LEAD
5JW-82541-00-00
Unavailable
12
CLAMP
90465-10098-00
Unavailable
13
OIL LEVEL GAUGE ASSY
5JW-85720-00-00
Unavailable
16
THERMOSENSOR ASSY
8CC-85790-01-00
Unavailable
17
WASHER, PLATE
90201-12790-00
Unavailable
18
THERMOSENSOR ASSY
5FL-85790-00-00
Unavailable
19
GASKET(2GH)
90430-12202-00
Unavailable
20
CLAMP
90465-10098-00
Unavailable
21
ROTOR
5JW-81673-10-00
Unavailable
22
BOLT, FLANGE
90105-10153-00
Unavailable
23
WASHER, PLATE(1WG)
90201-107K6-00
Unavailable
24
SENSOR, SPEED
5FL-83755-03-00
Unavailable
25
BOLT,SOCKET
91317-06016-00
Unavailable
26
CLAMP
90465-08028-00
Unavailable
27
PICK-UP ASSY
5JW-81670-00-00
Unavailable
28
CLAMP
90465-08033-00
Unavailable
29
BOLT, SOCKET
91317-05012-00
Unavailable
30
SENSOR, PRESSURE
5JW-82380-00-00
Unavailable
31
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
32
SENSOR
5JW-8592A-00-00
Unavailable
33
FRONT REFLECTOR ASSY
11H-85110-01-00
Unavailable
34
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
35
BRACKET, REFLECTOR 2
5BN-85122-00-00
Unavailable
36
BRACKET, REFLECTOR 2
5VS-85122-00-00
Unavailable
37
WASHER PLATE (3L6)
90201-08759-00
Unavailable
38
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
39
BRACKET, LICENSE
5JW-84751-00-00
Unavailable
40
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
41
NUT, SELF-LOCKING
95617-06100-00
Unavailable
42
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
