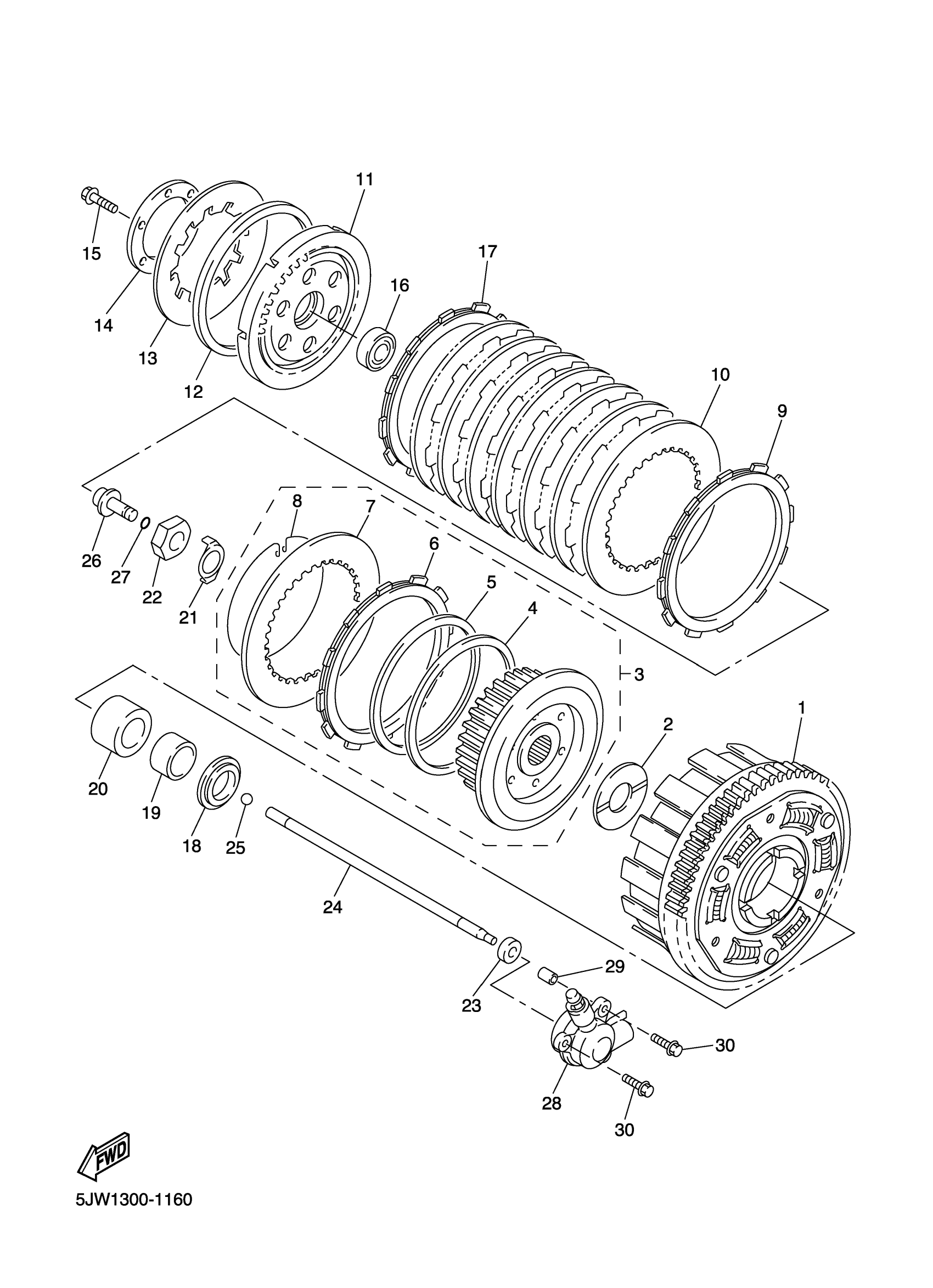

Yamaha FJR1300ASC (FJR1300ABS CA) 5VS5 2004 CLUTCH Diagram
#
Description
Price
1
PRIMARY DRIVEN GEAR COMP.
5JW-16150-00-00
Unavailable
2
PLATE, THRUST 1
5JW-16154-00-00
Unavailable
11
PLATE, PRESSURE 1
4XV-16351-00-00
Unavailable
15
BOLT, FLANGE
95817-06025-00
Unavailable
16
BEARING(2JN)
93306-00315-00
Unavailable
17
PLATE, FRICTION (447)
341-16321-13-00
Unavailable
18
SPACER 3
5JW-16183-00-00
Unavailable
19
COLLAR
90387-28002-00
Unavailable
20
SPACER 1
1MC-16181-00-00
Unavailable
21
WASHER, LOCK (26H)
90215-25218-00
Unavailable
22
NUT (26H)
90170-20323-00
Unavailable
23
OIL SEAL(12E)
93109-08061-00
Unavailable
24
ROD, PUSH 2
5JW-16357-00-00
Unavailable
25
BALL (498)
93511-32027-00
Unavailable
26
ROD, PUSH 1
4KG-16356-00-00
Unavailable
27
O-RING (26H)
93210-06632-00
Unavailable
28
PUSH LEVER COMP.
5JW-16381-00-00
Unavailable
29
PIN, DOWEL
99530-08012-00
Unavailable
30
BOLT, FLANGE(4KG)
95024-06025-00
Unavailable
